DESCRIPTION
The Atomik Audio XN 8.0.6 is a premium 2-way passive full-range loudspeaker, purpose-built for professional rental and fixed installation environments.
Designed as a high-output point-source enclosure, it features:
-
A precision 1″ high-frequency driver on an 80° x 50° horn for controlled dispersion
-
An 8″ low-frequency driver delivering robust bass response in a compact form factor
Versatile and powerful, the XN 8.0.6 performs effortlessly as a standalone unit or integrates seamlessly with any Atomik Audio subwoofer for extended low-end reinforcement.
Features
- High SPL Output: Delivers impressive sound pressure levels for a compact 8″ full-range enclosure.
- Exceptional Fidelity: High-resolution audio reproduction ensures crystal-clear sound across all frequencies.
- Smooth Power Response: Consistent performance across the coverage area for balanced sound distribution.
- High Sensitivity Design: Efficient driver configuration maximizes output with minimal power input.
- Wide Dispersion Pattern: 80° x 50° horn ensures broad and even coverage.
- Professional Connectivity: Equipped with dual Neutrik NL4 connectors for flexible signal routing.
- Subwoofer Compatibility: Seamlessly integrates with Atomik Audio XN 18.0.2 and XN 218.0.2 subwoofers.
- Rugged Construction: Built from 16mm marine-grade plywood for durability in demanding environments.
- Protective Grille: 2mm steel grille with acoustic micro foam backing safeguards components without compromising sound.
- Rigging Ready: Three M8 rigging points allow for secure and versatile flying options.
- Passive Crossover Network: Simplifies system setup while maintaining optimal frequency separation.
Technical Specifications
1″ HF ferrite compression driver with a 44 mm voice coil and polyimide diaphragm.
8″ LF ferrite driver with a 65.5 mm voice coil.
80 x 50 degree nominal coverage pattern, rotatable HF horn.
Ported
99dB @ 1w/1m
125dB @ 1m
Max 300 watts long term continuous / Peak 600 watts
8 ohms 6.7 ohms passive
-3dB 60Hz to 18kHz
-10dB 50Hz to 20kHz
270mm x 448mm x 306mm, 10.6″ x 17.6″ x 12″
14.5kgs / 32lbs
Frequency & Phase Response – Raw

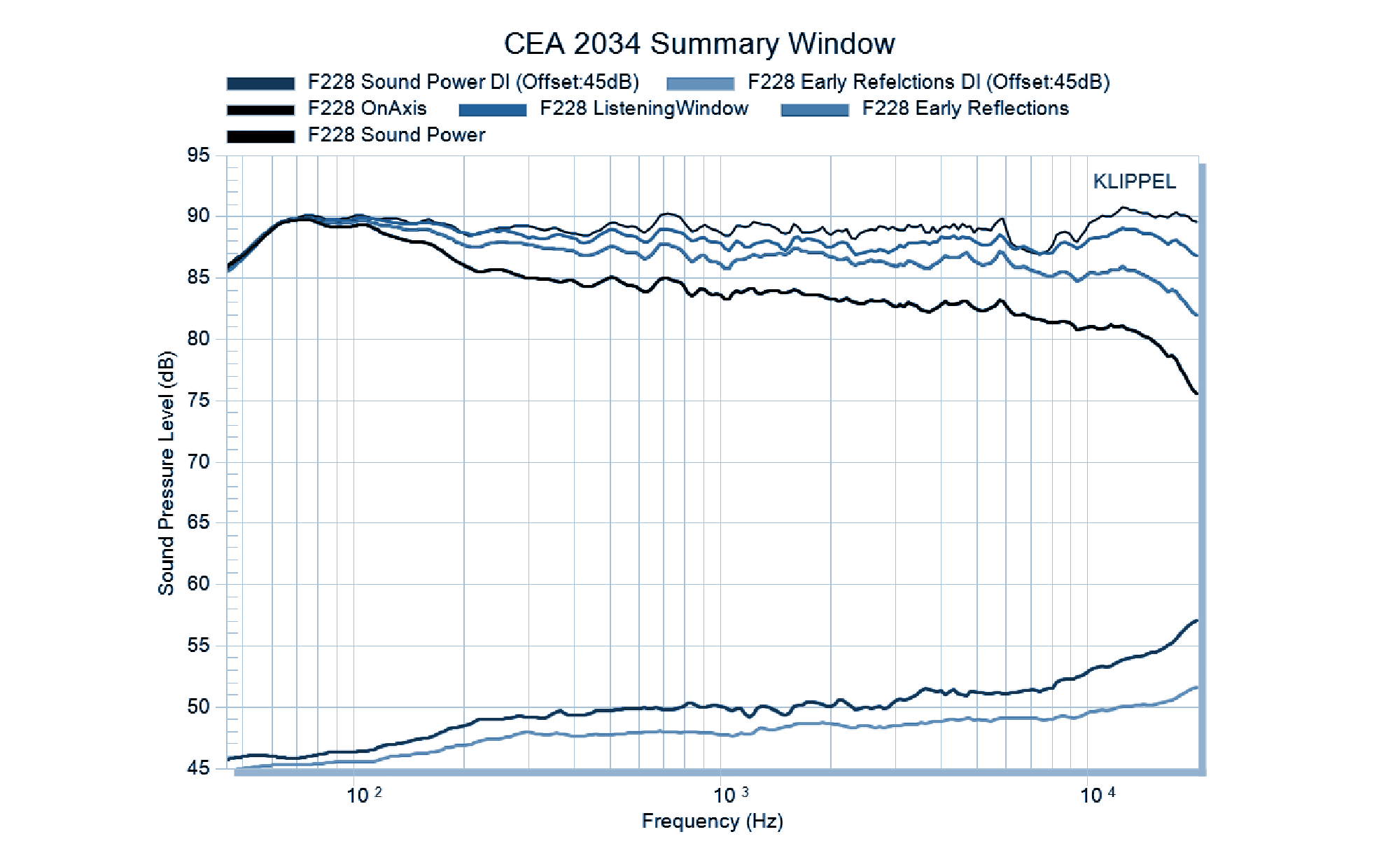

CEA 2034

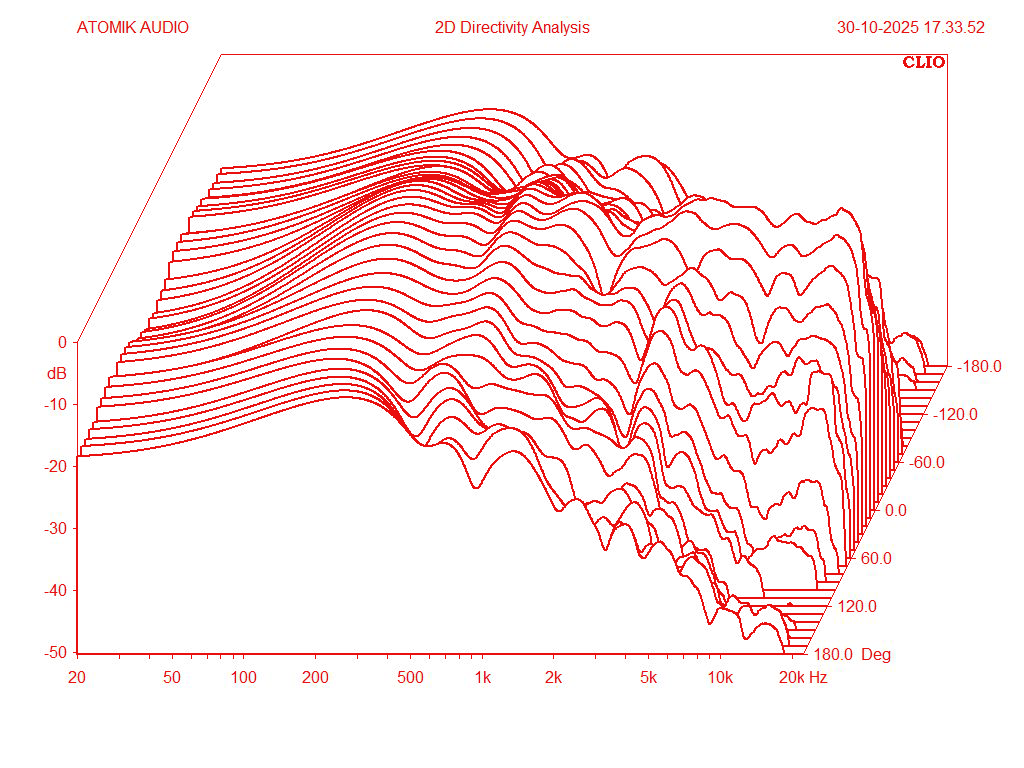

vertical directivity plot- waterfall mode
Frequency & Phase Response – Processed

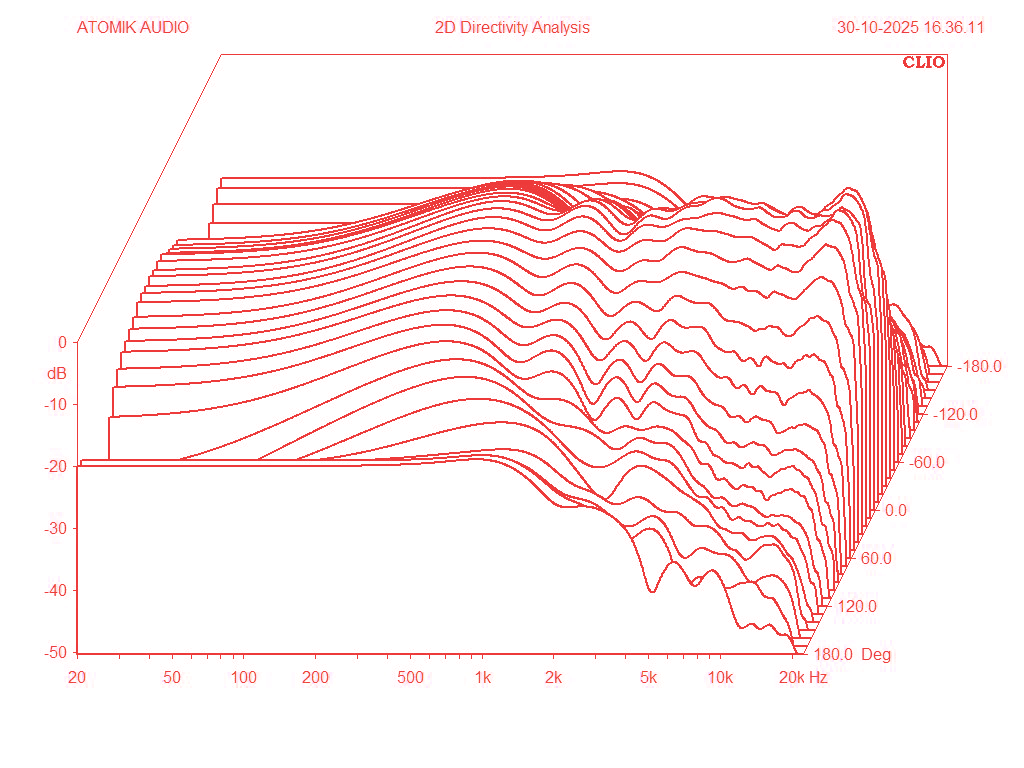

horizontal directivity plot- waterfall mode
vertical directivity plot
Impedance & Phase Response

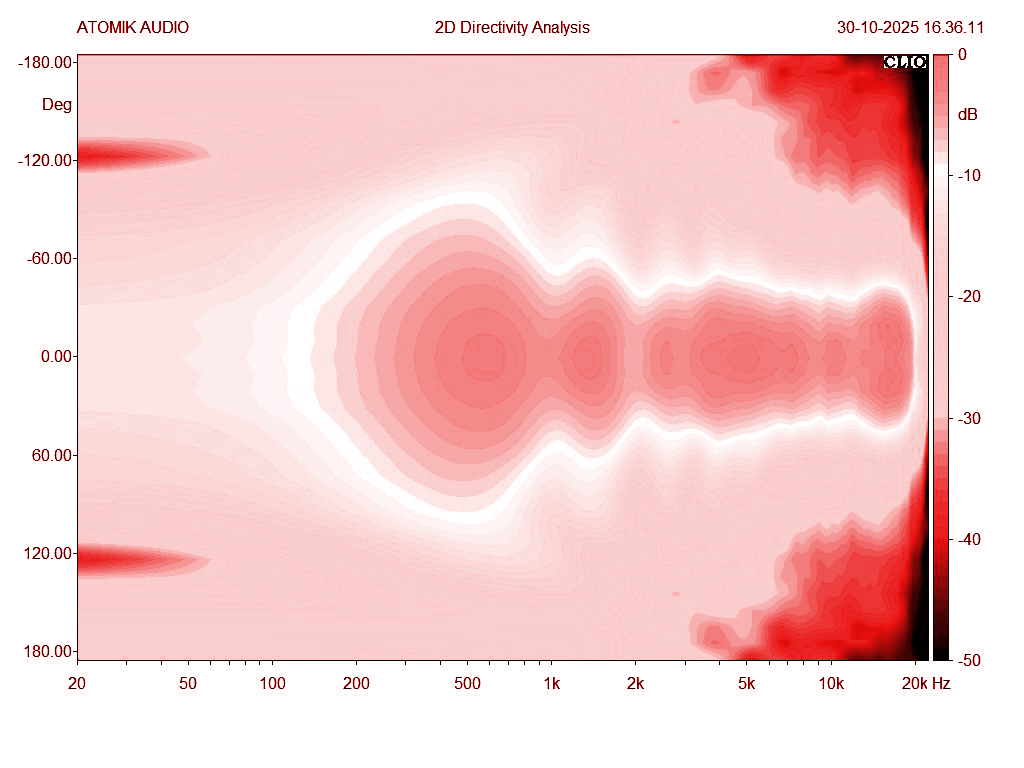

horizontal directivity plot
