DESCRIPTION

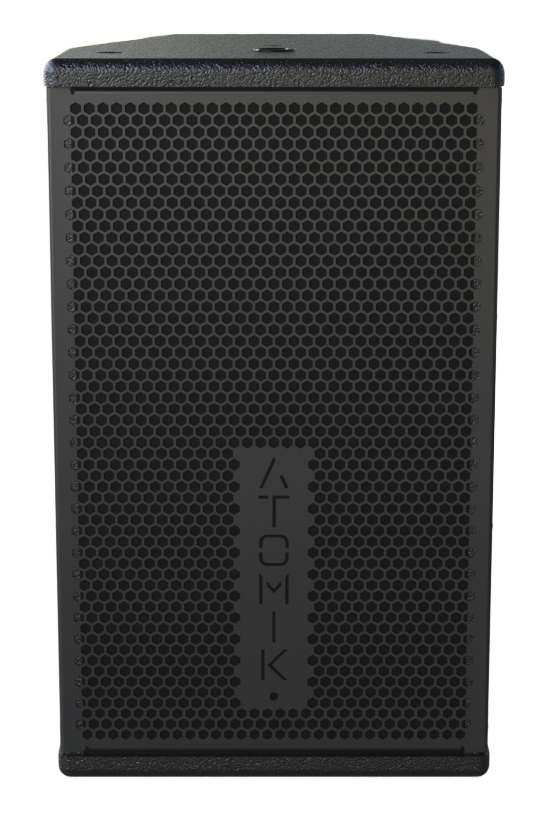

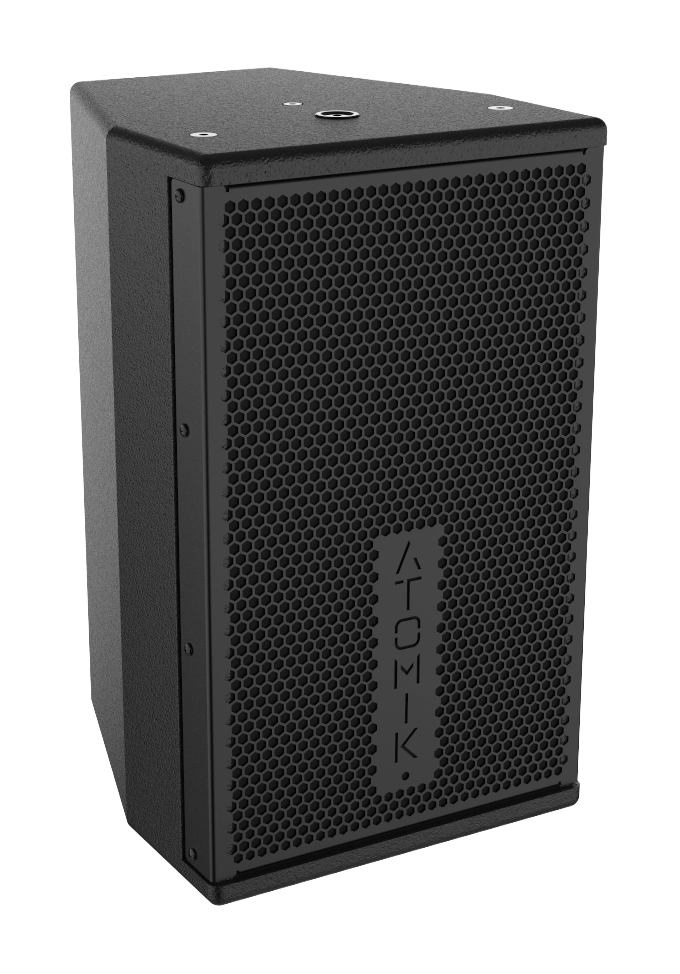

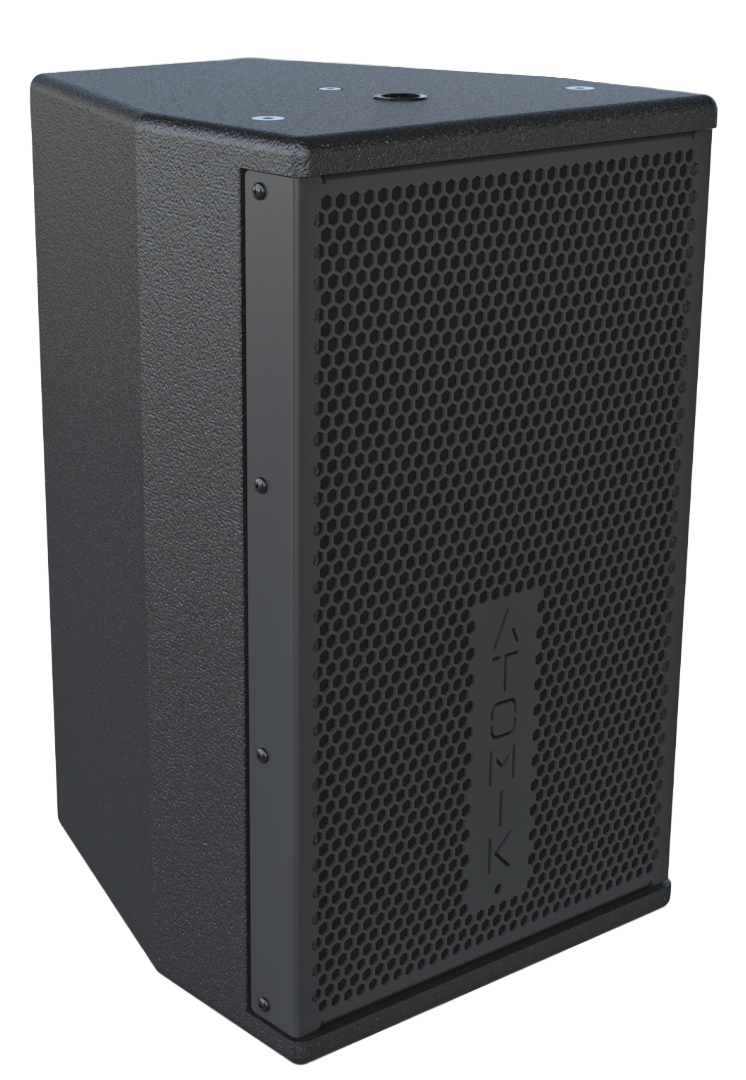

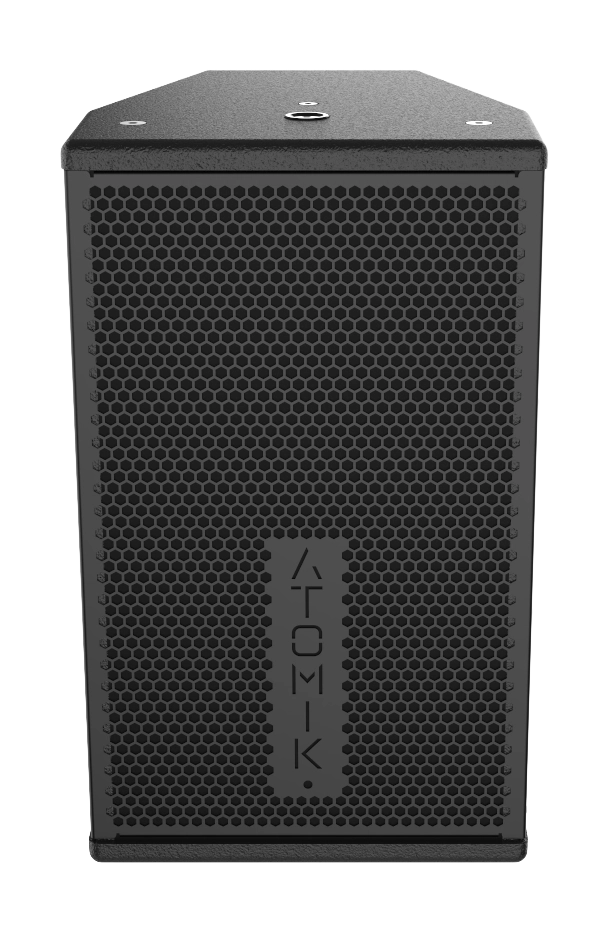

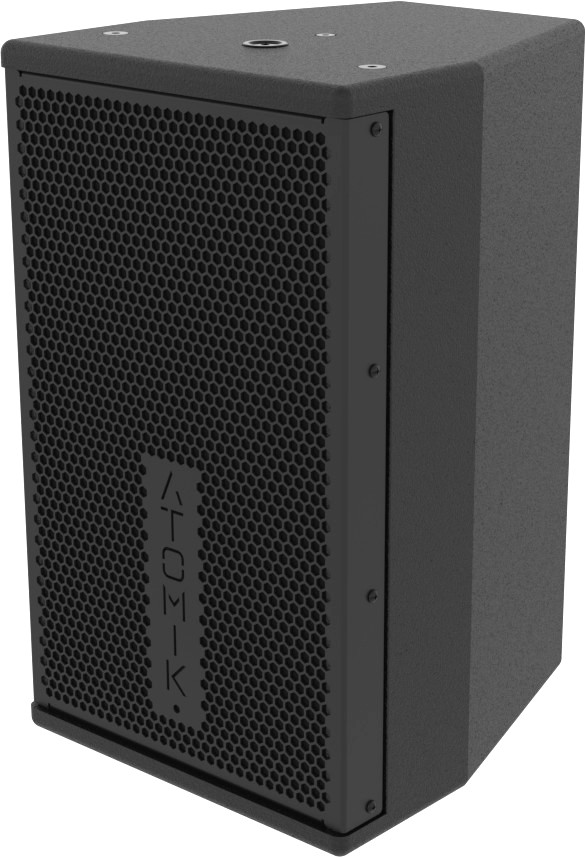

The Atomik Audio XN 8.0.6 is a 2 way passive full range loudspeaker, designed for the pro-audio rental and fixed installation markets.
This point source box is a high output loudspeaker with a 1″ HF driver on a 80°x50° horn and an 8″ LF driver, exhibiting excellent low frequency performance for a compact enclosure.
It can be used as a standalone speaker or paired with any of the Atomik Audio subwoofers.
Features
- Very high SPL output for a compact 8″ full range loudspeaker.
- Exceptional fidelity & high resolution loudspeaker system.
- Very smooth power response.
- High sensitivity design.
- Wide dispersion pattern.

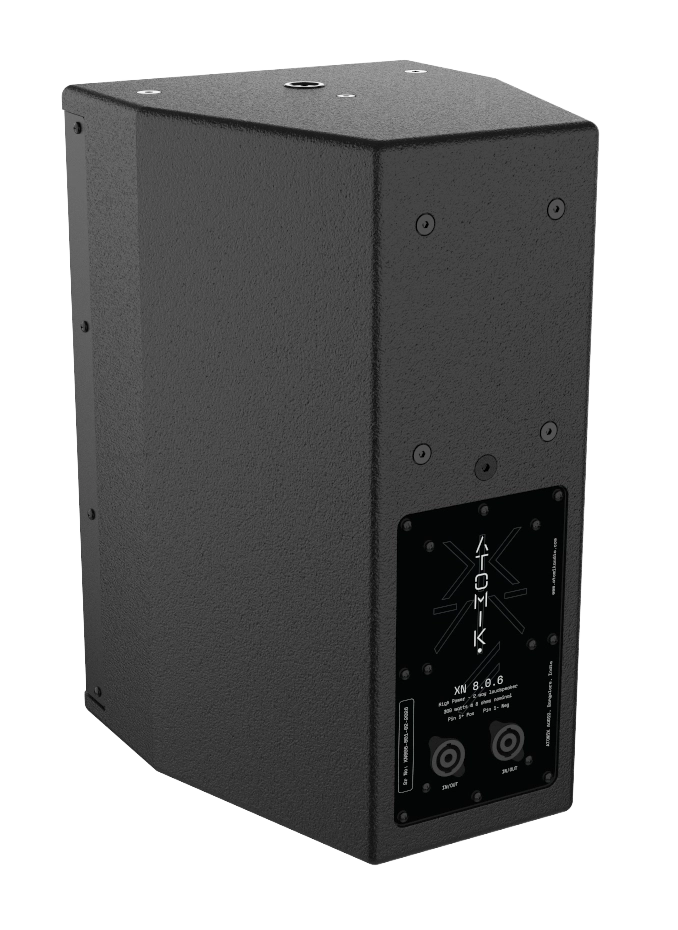

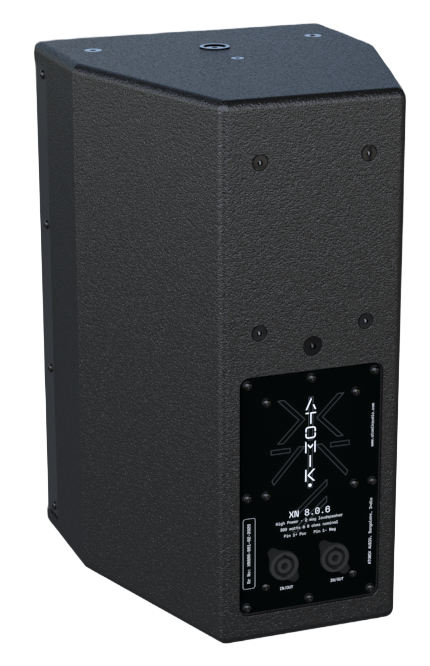

- Dual Neutrik NL4 connectors.
- Easily compatible with the XN 18.0.2 Subwoofer or the XN 218.0.2 Subwoofer.
- Heavy duty 16mm marine plywood enclosure.

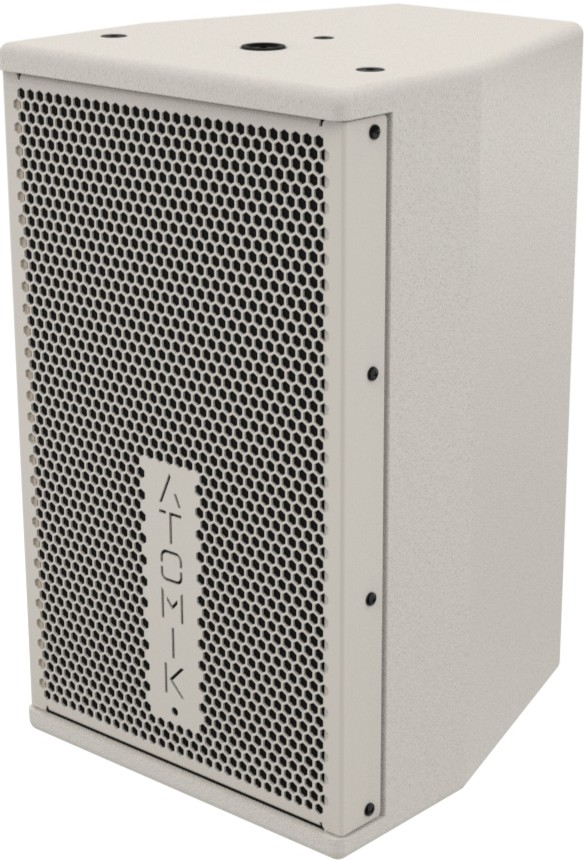

- 2mm thick steel grill with an acoustic micro foam backing.
- 3 x M8 rigging points for easy flying.
- Passive crossover.
Technical Specifications
HF Driver
1″ HF ferrite compression driver with a 44 mm voice coil and polyimide diaphragm.
1″ HF ferrite compression driver with a 44 mm voice coil and polyimide diaphragm.
LF Driver
8″ LF ferrite driver with a 65.5 mm voice coil.
8″ LF ferrite driver with a 65.5 mm voice coil.
HF Horn
80 x 50 degree nominal coverage pattern, rotatable HF horn.
80 x 50 degree nominal coverage pattern, rotatable HF horn.
Enclosure
Ported
Ported
Axial Sensitivity
99dB @ 1w/1m
99dB @ 1w/1m
Maximum SPL
125dB @ 1m
125dB @ 1m
Power
Max 300 watts long term continuous / Peak 600 watts
Max 300 watts long term continuous / Peak 600 watts
Nominal Impedance
8 ohms 6.7 ohms passive
8 ohms 6.7 ohms passive
Frequency Response – 1
-3dB 60Hz to 18kHz
-3dB 60Hz to 18kHz
Frequency Response – 2
-10dB 50Hz to 20kHz
-10dB 50Hz to 20kHz
Dimensions in mm & in WxHxD
270mm x 448mm x 306mm, 10.6″ x 17.6″ x 12″
270mm x 448mm x 306mm, 10.6″ x 17.6″ x 12″
Weight
14.5kgs / 32lbs
14.5kgs / 32lbs
*Atomik Audio products are continually improved. All specifications are therefore subject to change without notice.

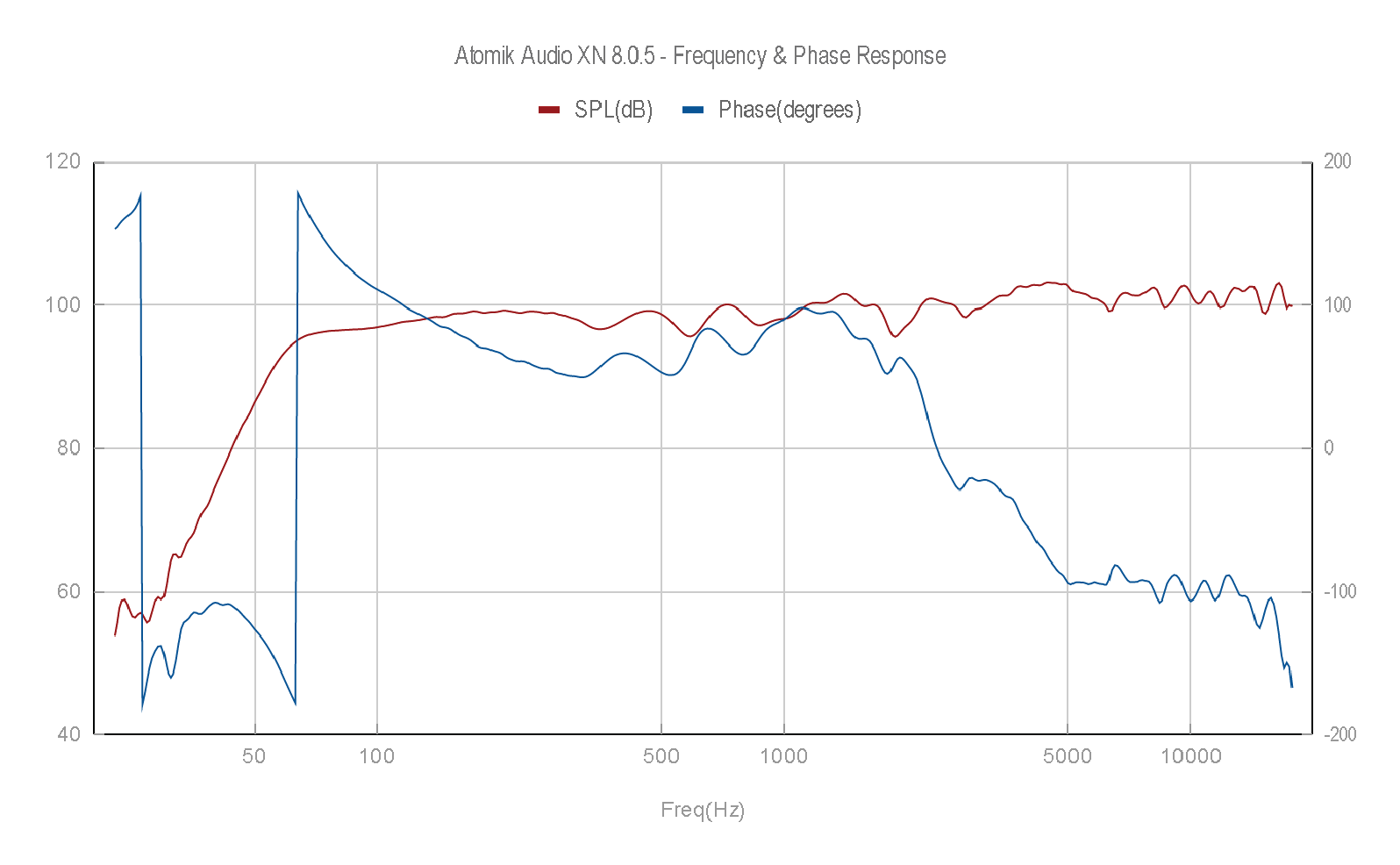

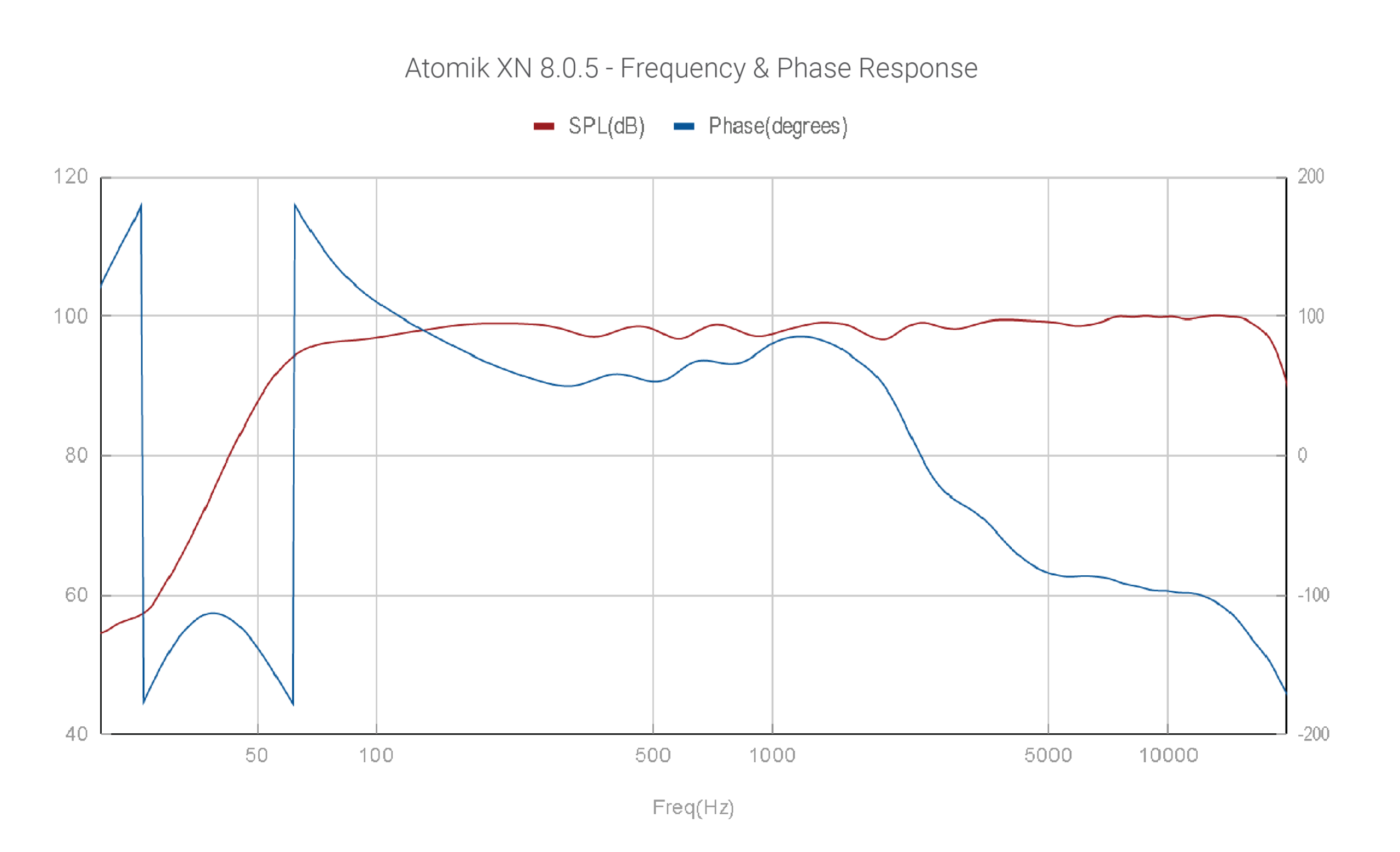

Frequency & Phase Response – Raw

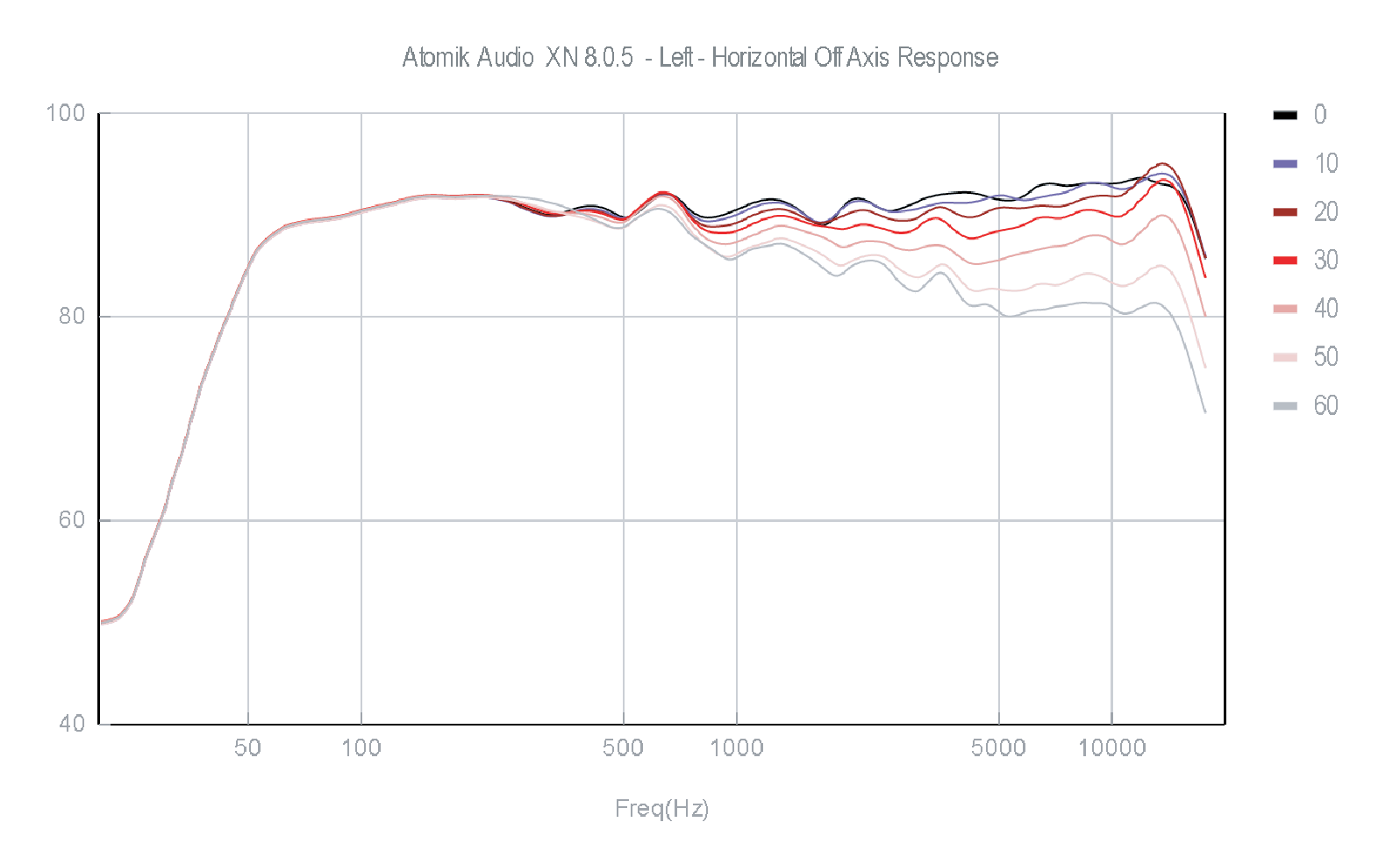

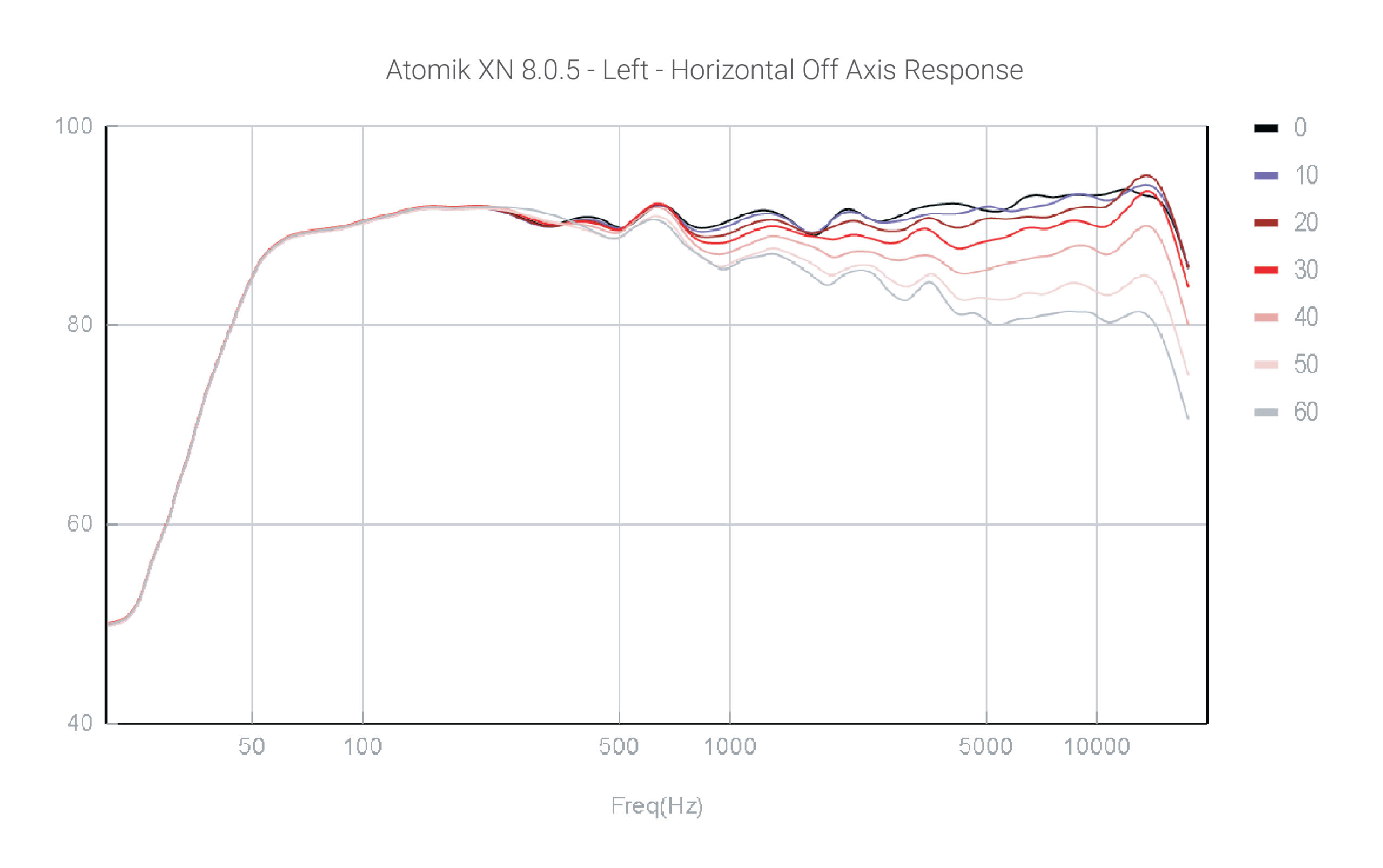

Left – Horizontal Off Axis Response

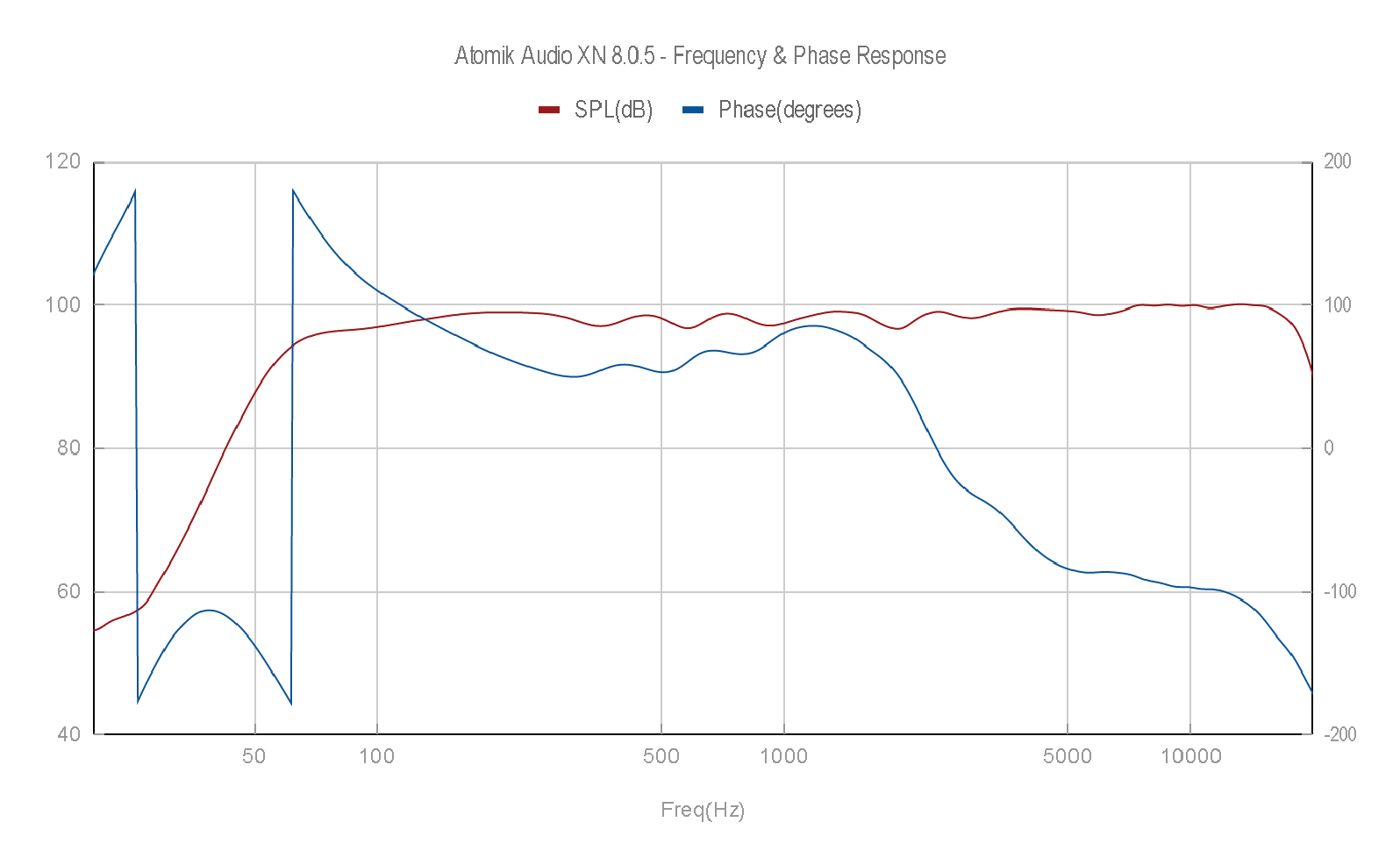

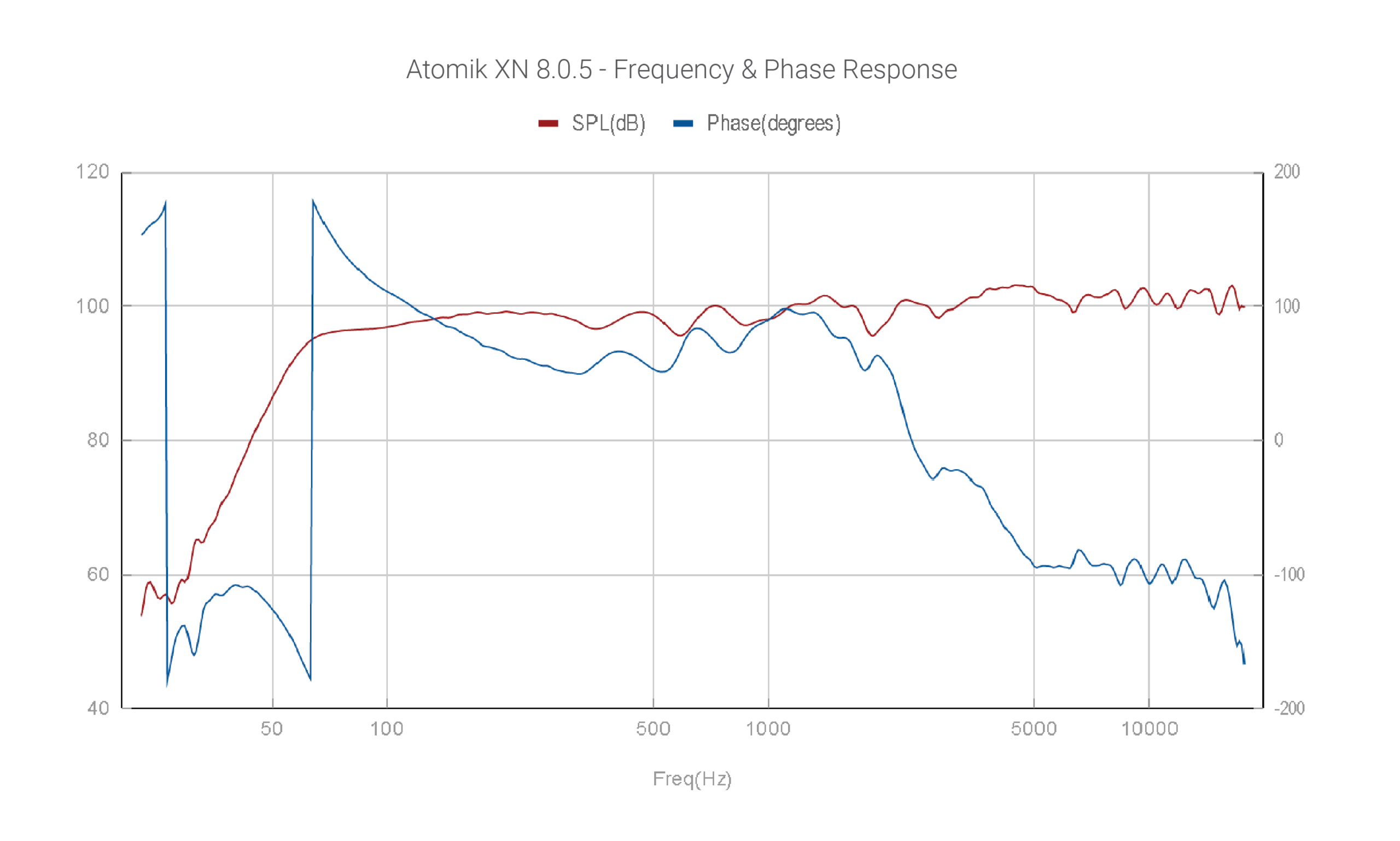

Frequency & Phase Response – Processed
Right – Horizontal Off Axis Response

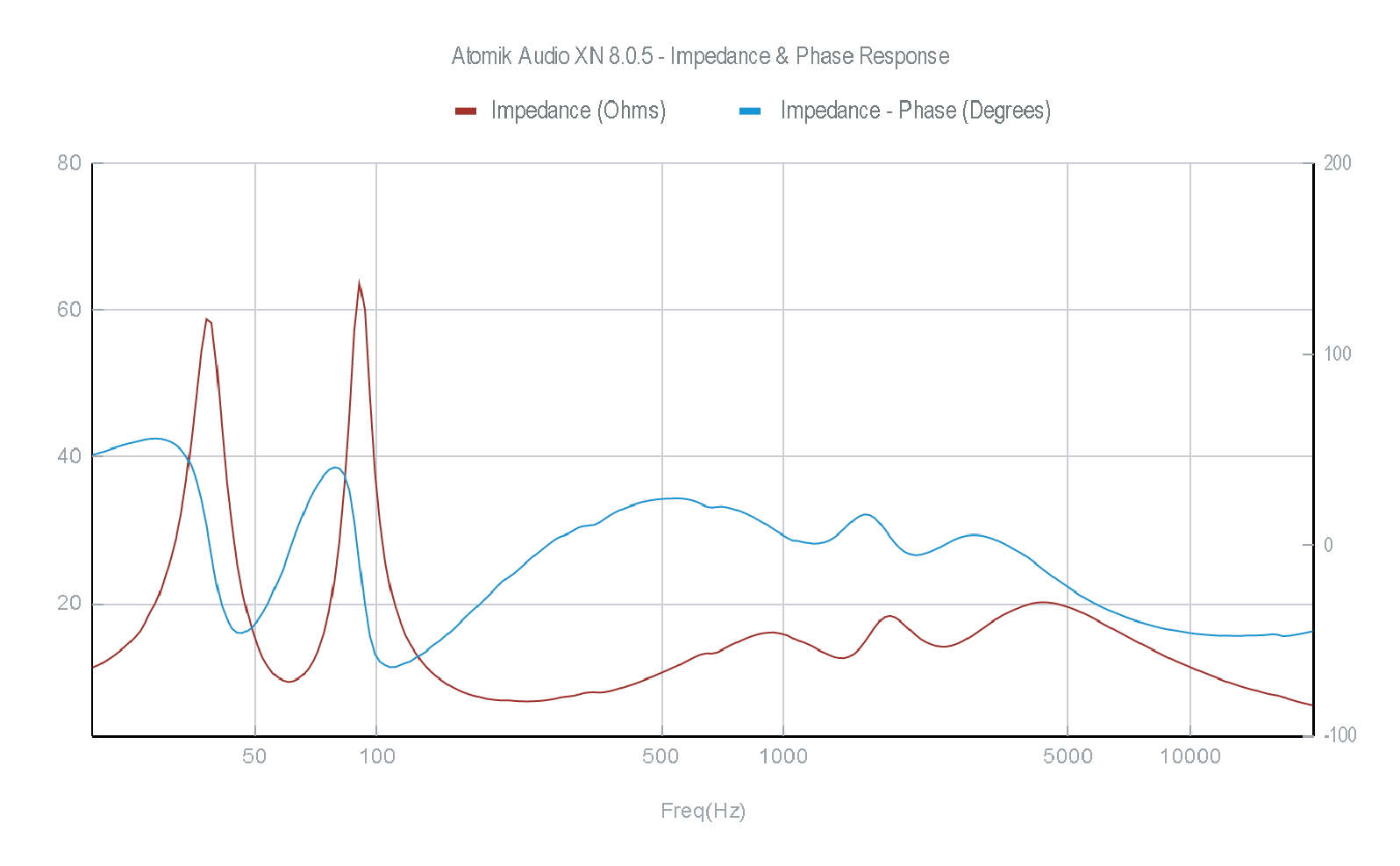

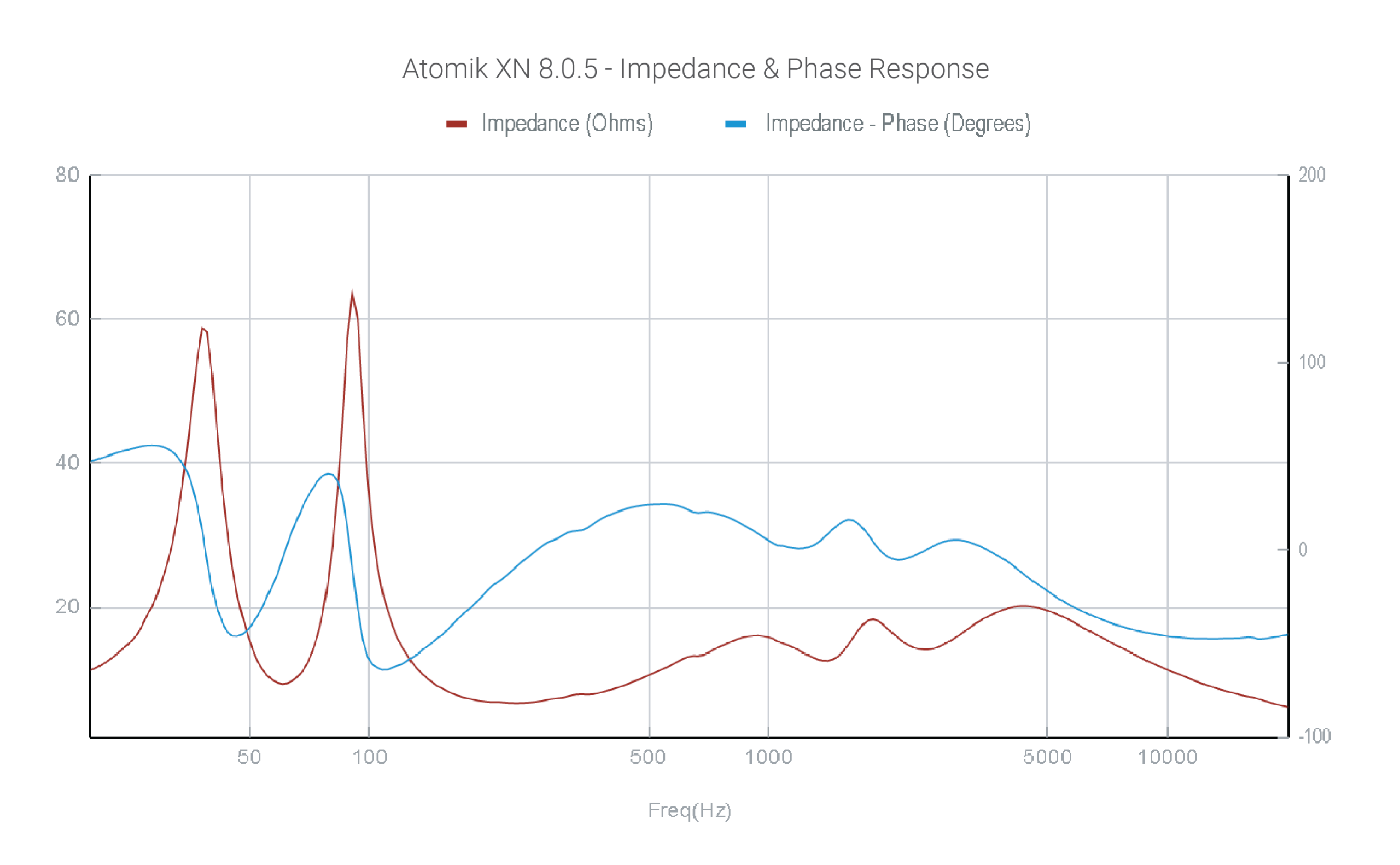

Impedance & Phase Response

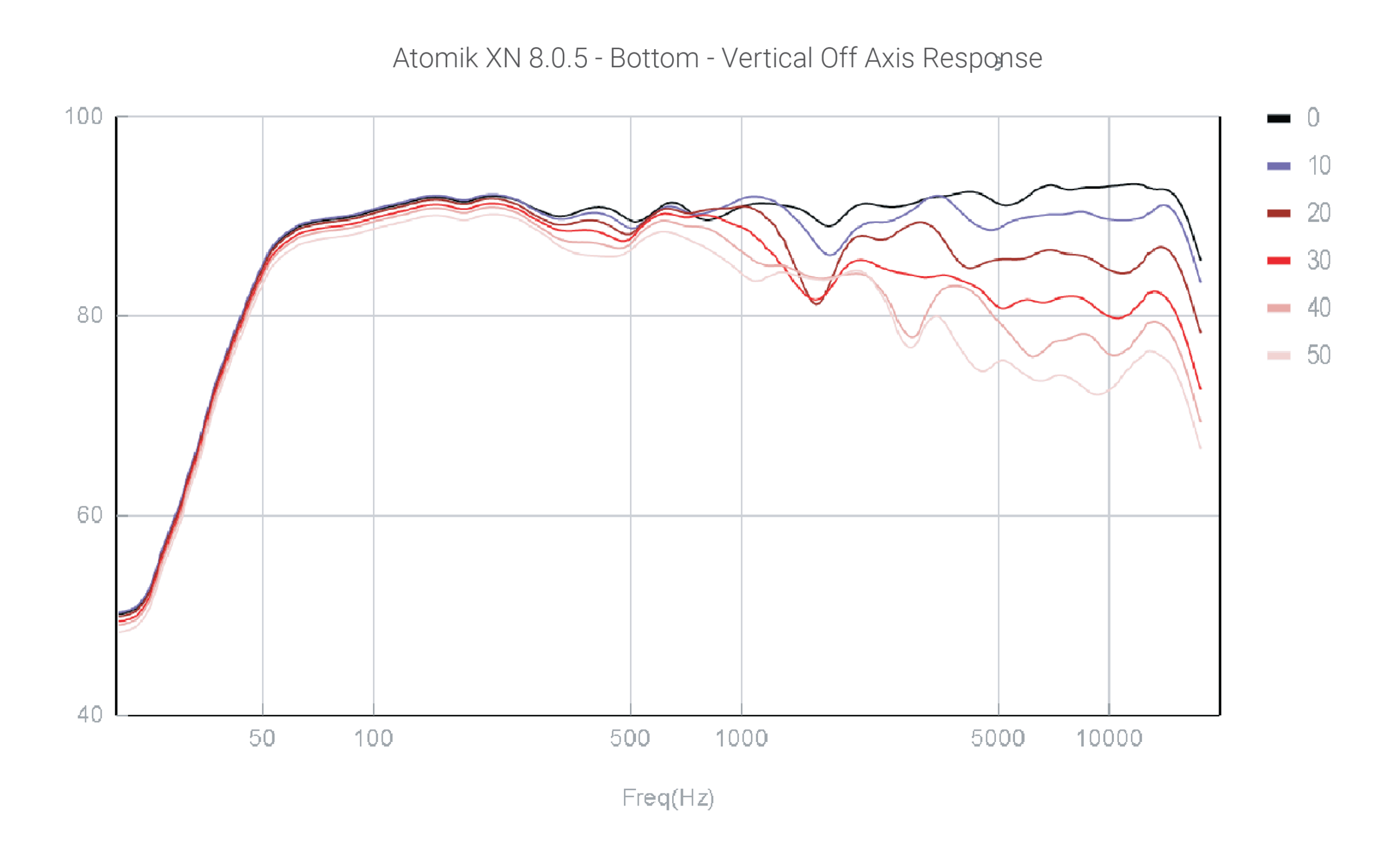

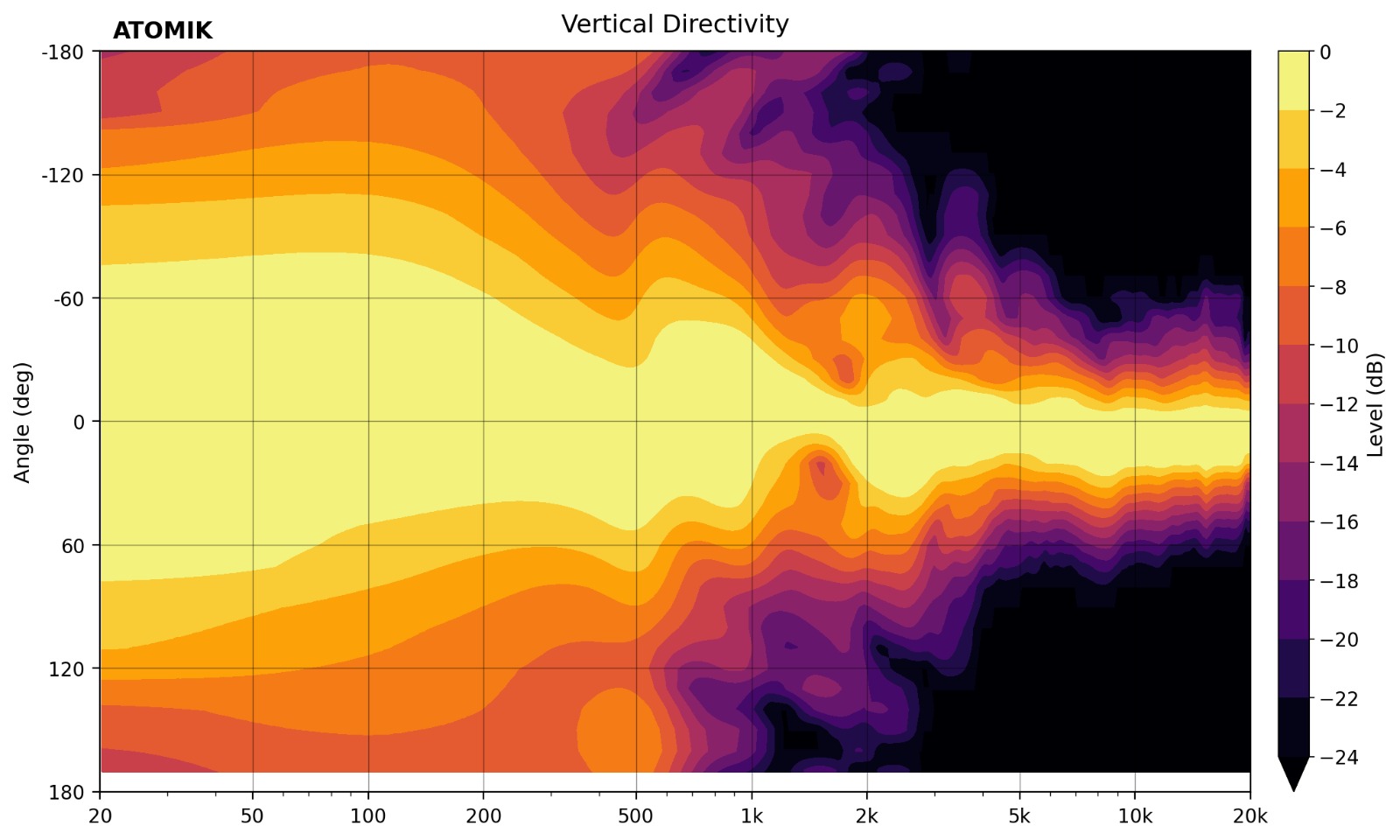

Bottom – Vertical Off Axis Response
