DESCRIPTION

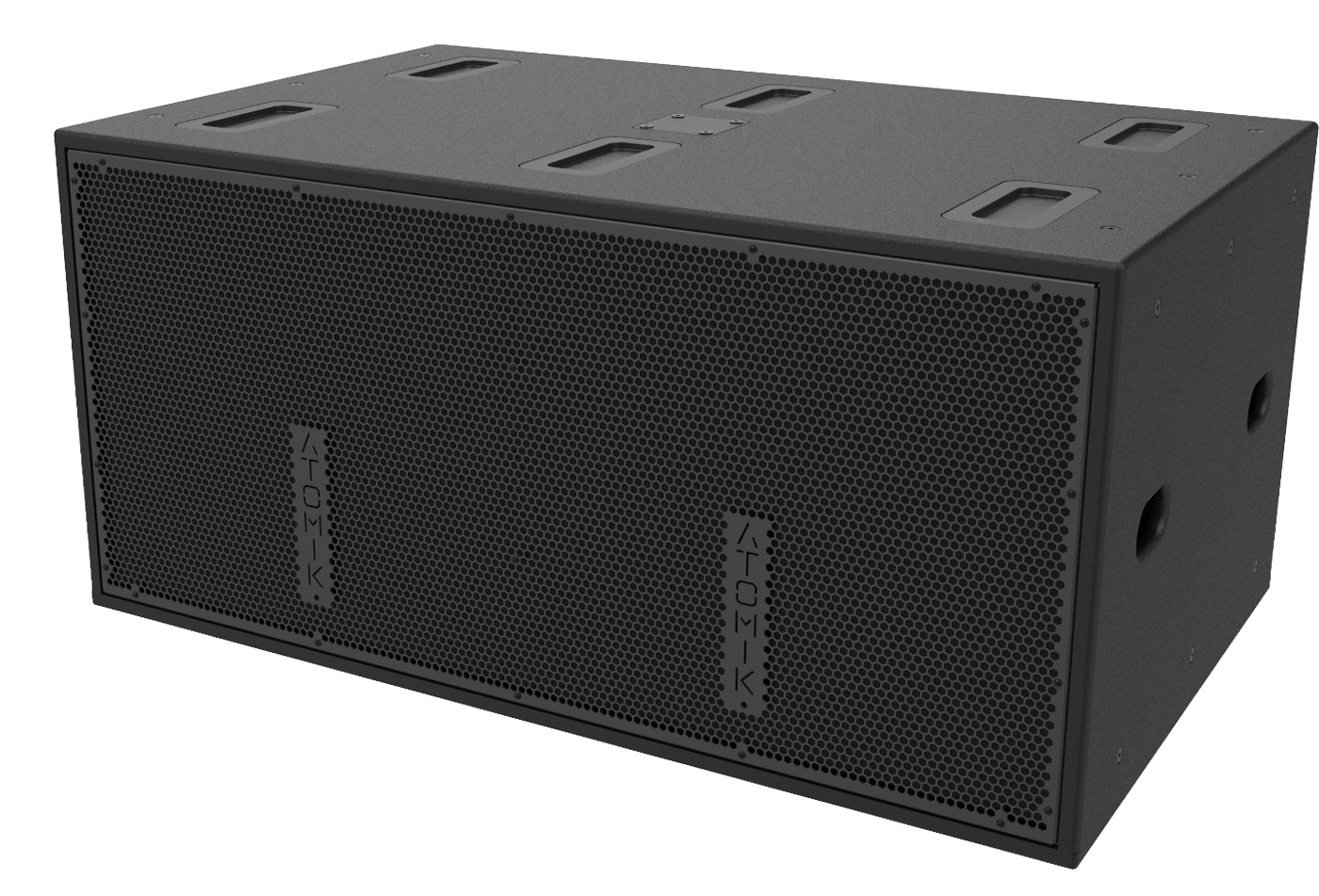

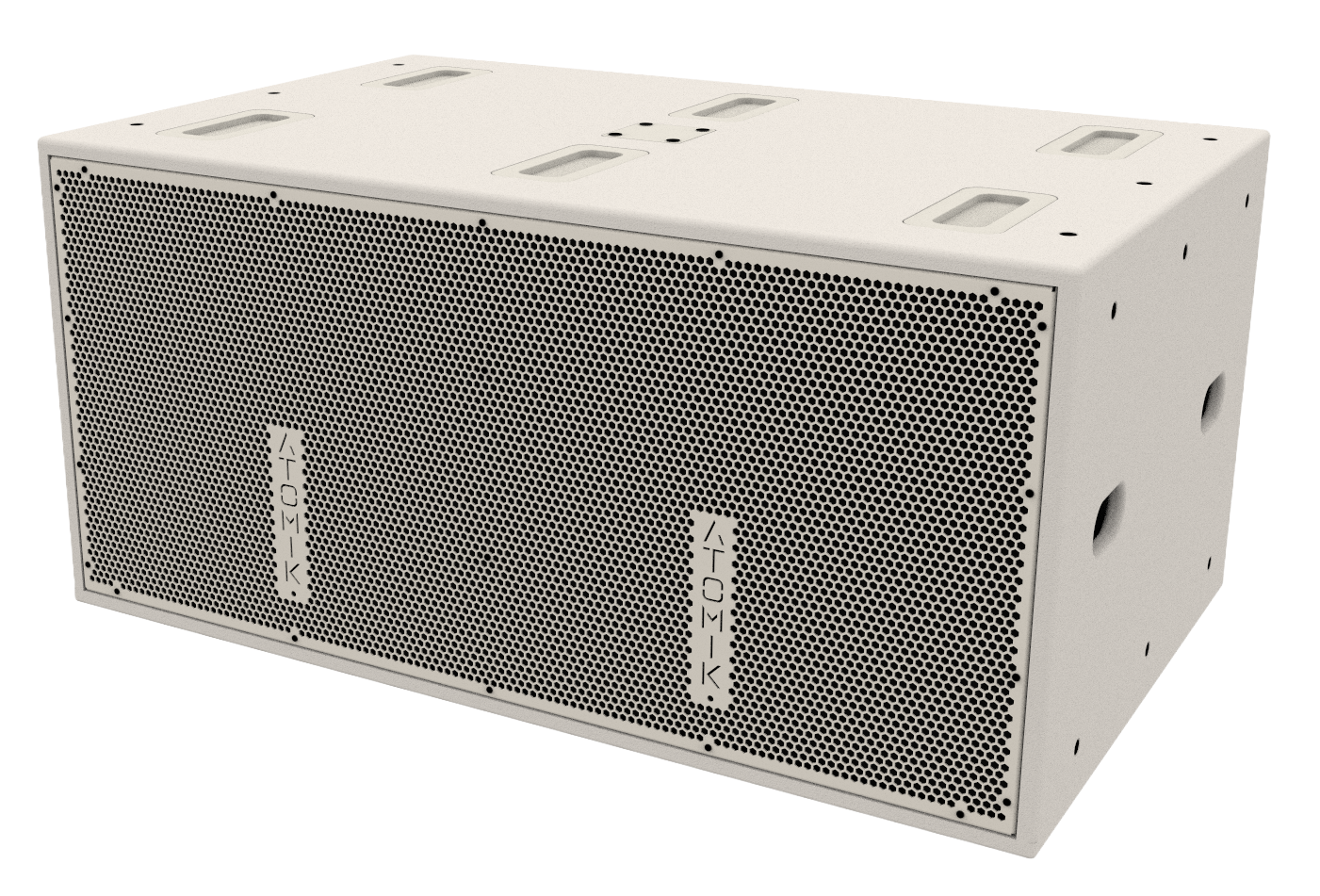

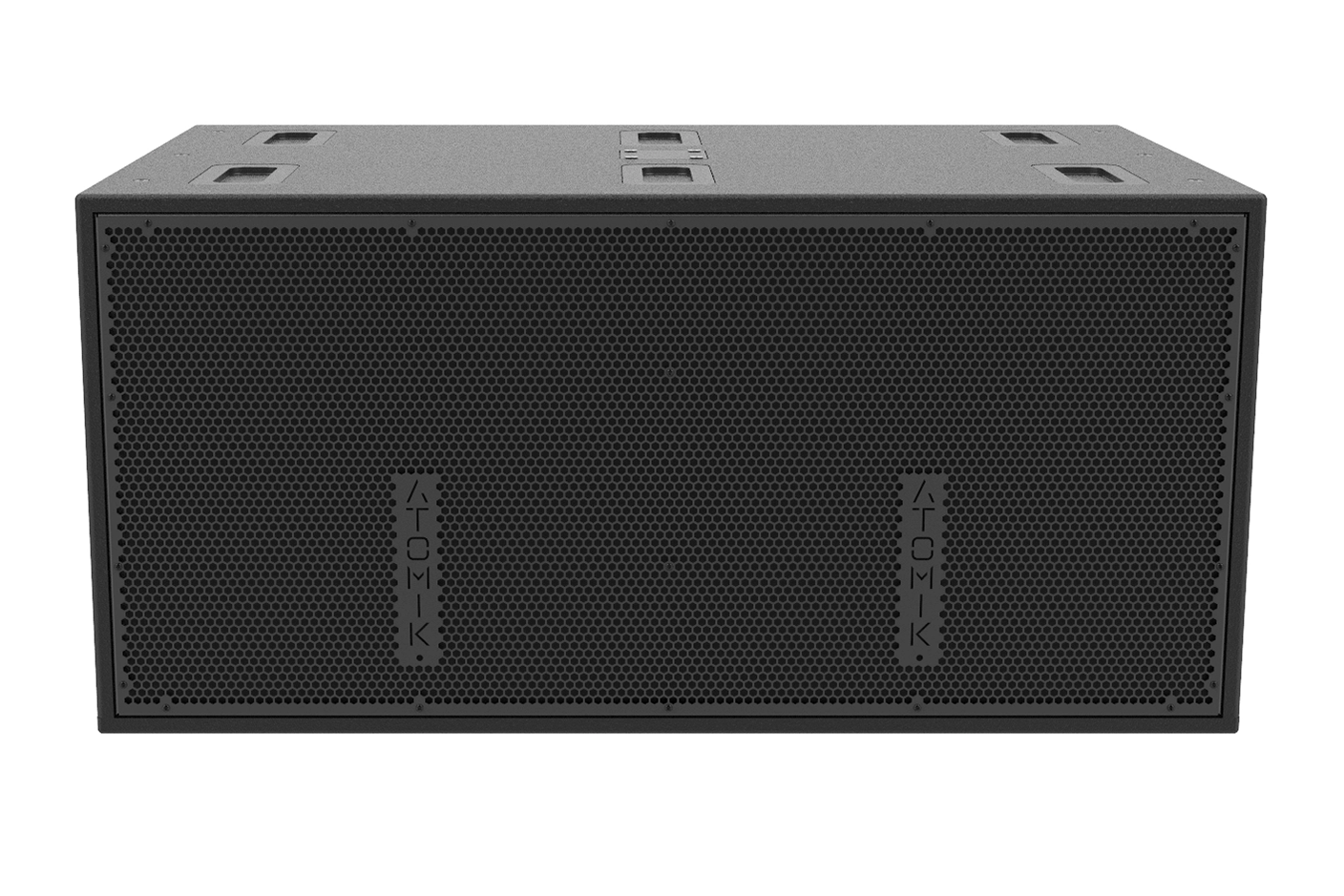

The Atomik Audio XN 218.0.2 is a high powered ported dual sub bass loudspeaker, designed for the pro-audio rental and fixed installation markets.
This enclosure employs dual 18” sub drivers in a high efficiency bandpass horn-loaded design for maximum impact.
It can be paired with any of the Atomik Audio XN series of full range loudspeakers.
Features
- Very high SPL output for a dual 18” subwoofer.
- 18” drivers with 4” voice coils.
- Exceptional punch and impact.

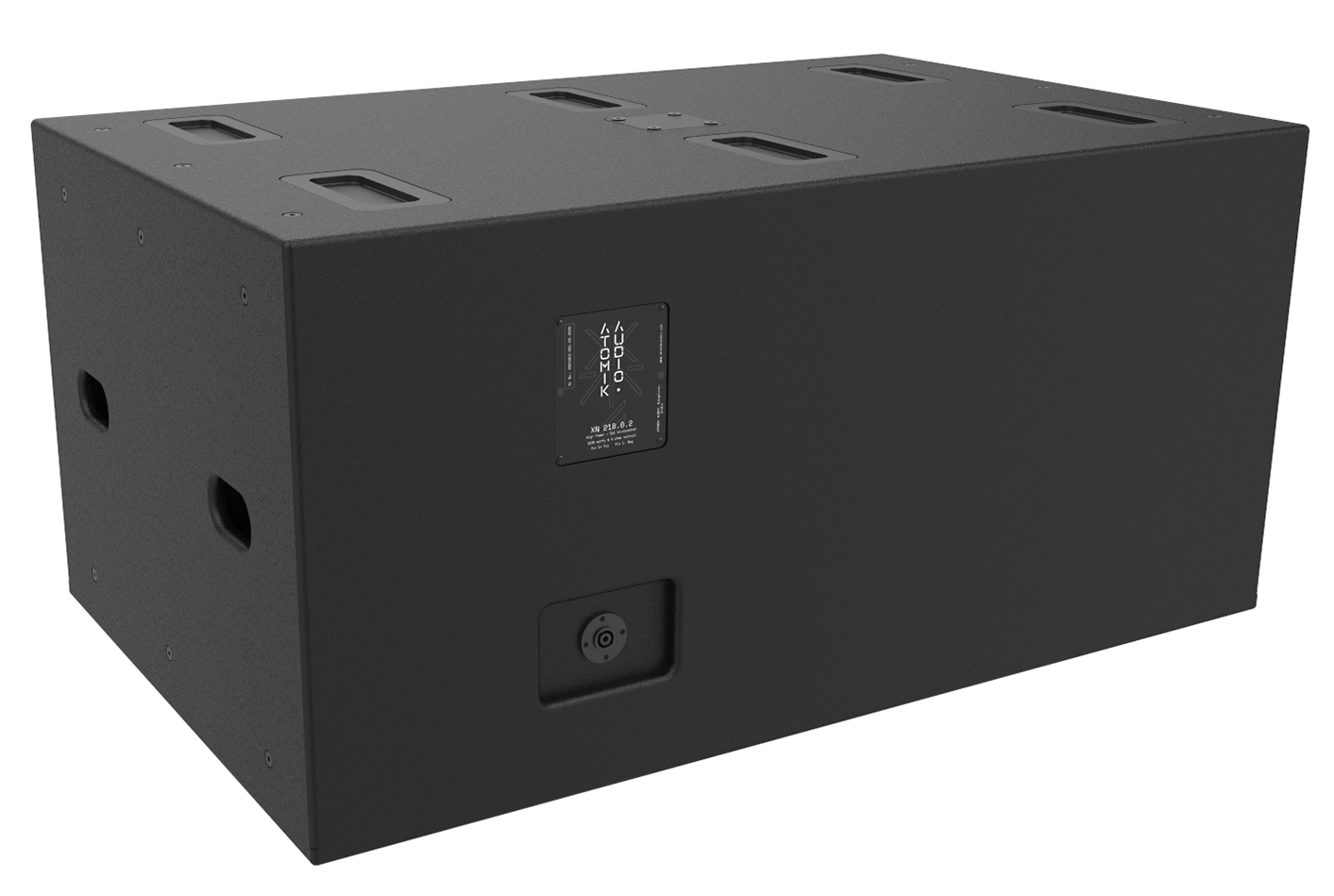

- Dual Neutrik NL4 connectors.
- Heavy duty 18mm marine plywood enclosure.
- 2mm thick steel grill with an acoustic micro foam backing.
- Perfectly suited for any DJ or Live performance.
Technical Specifications
LF Driver
18″ ferrite sub driver with a 100 mm voice coil
18″ ferrite sub driver with a 100 mm voice coil
Enclosure
Bandpass Hornloaded
Bandpass Hornloaded
Axial Sensitivity
102dB @ 1w/1m
102dB @ 1w/1m
Maximum SPL
136dB @ 1m
136dB @ 1m
Power
Max 2400 watts long term continuous / Peak 4800 watts
Max 2400 watts long term continuous / Peak 4800 watts
Nominal Impedance
4 ohms
4 ohms
Frequency Response
-3dB 42Hz to 300Hz
-3dB 42Hz to 300Hz
Dimensions in mm & in WxHxD
1220mm x 585mm x 760mm, 48″ x 23″ x 29.9″
1220mm x 585mm x 760mm, 48″ x 23″ x 29.9″
Weight
90kgs / 198lbs
90kgs / 198lbs
*Atomik Audio products are continually improved. All specifications are therefore subject to change without notice.

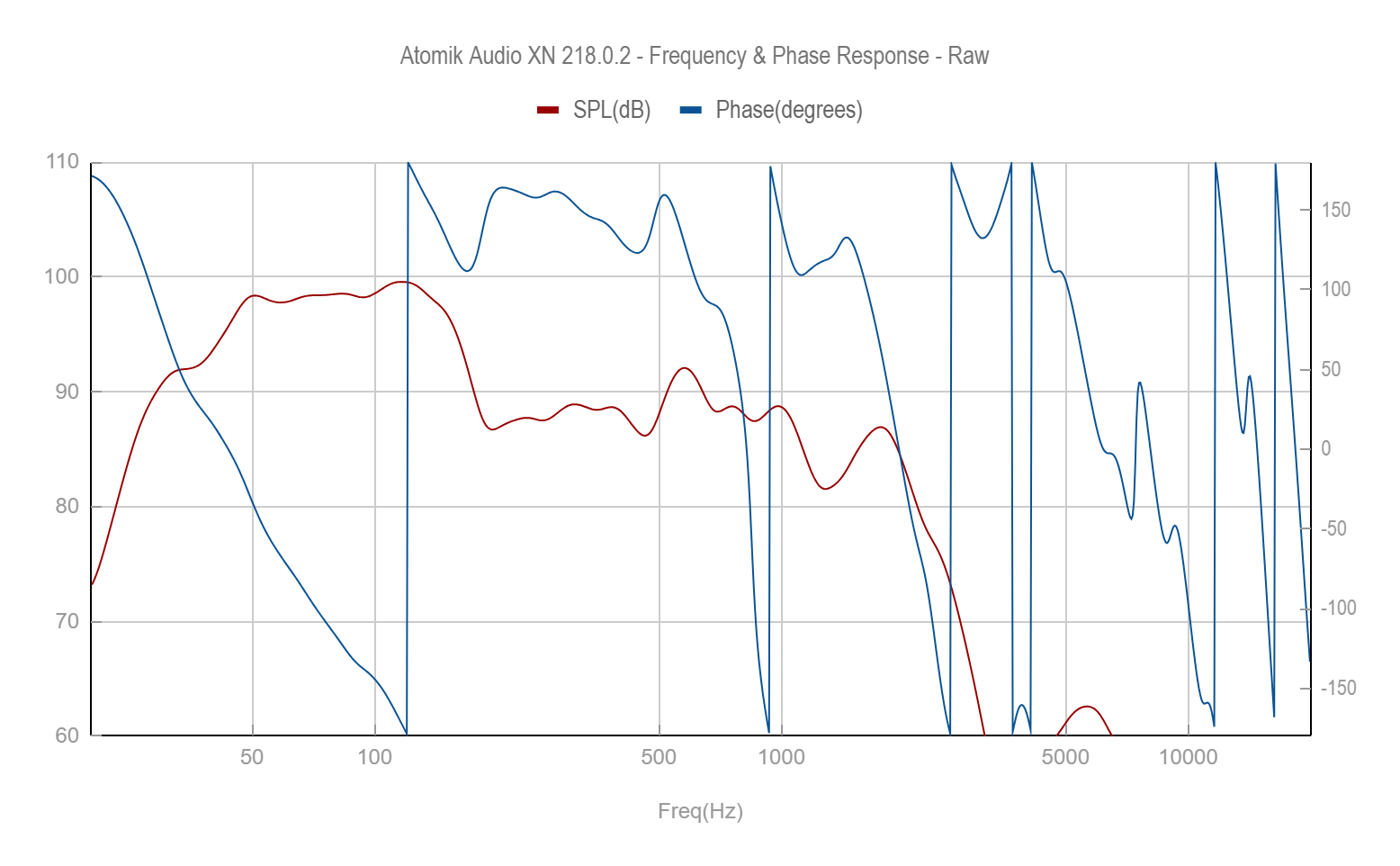

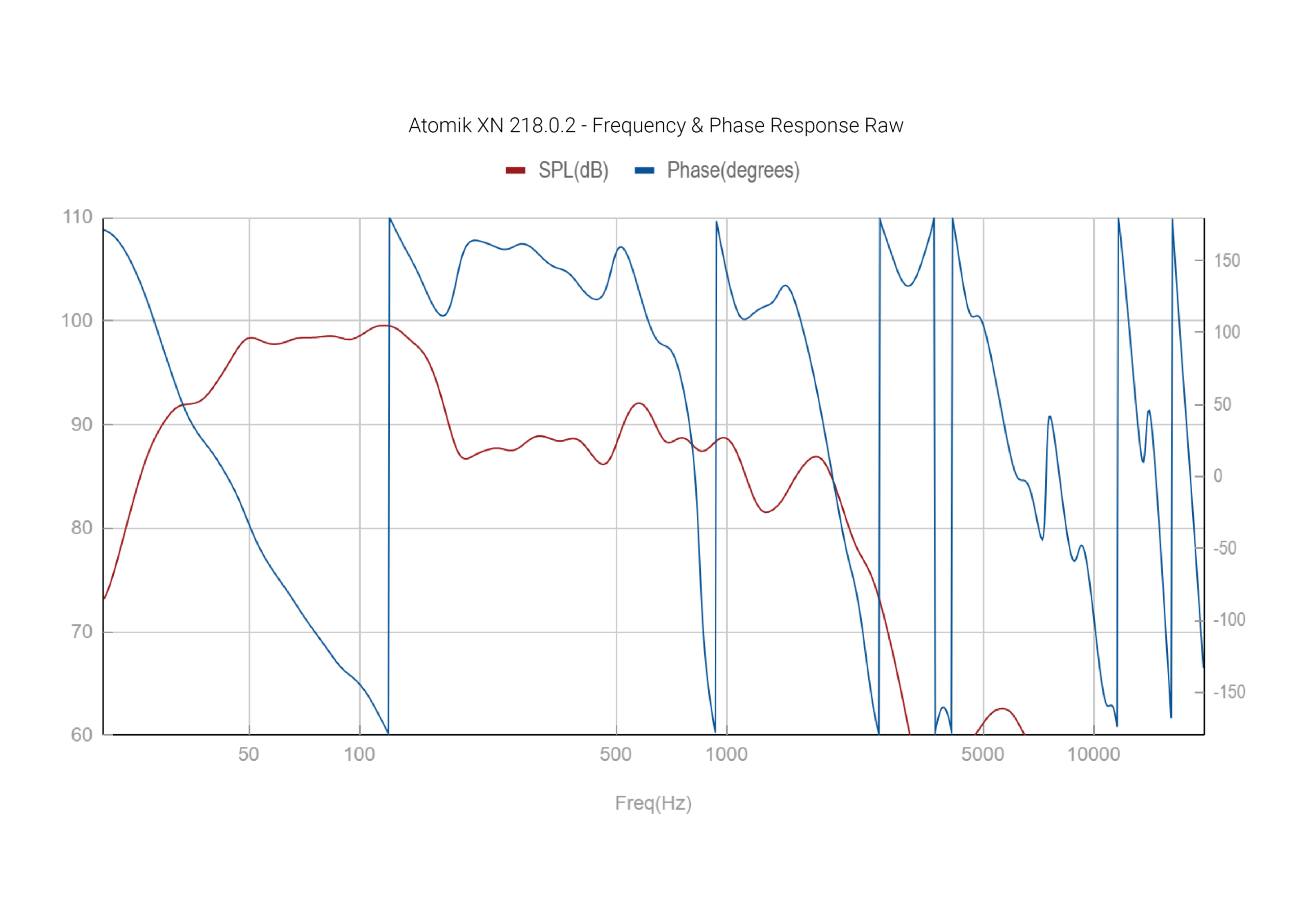

Frequency & Phase Response – Raw

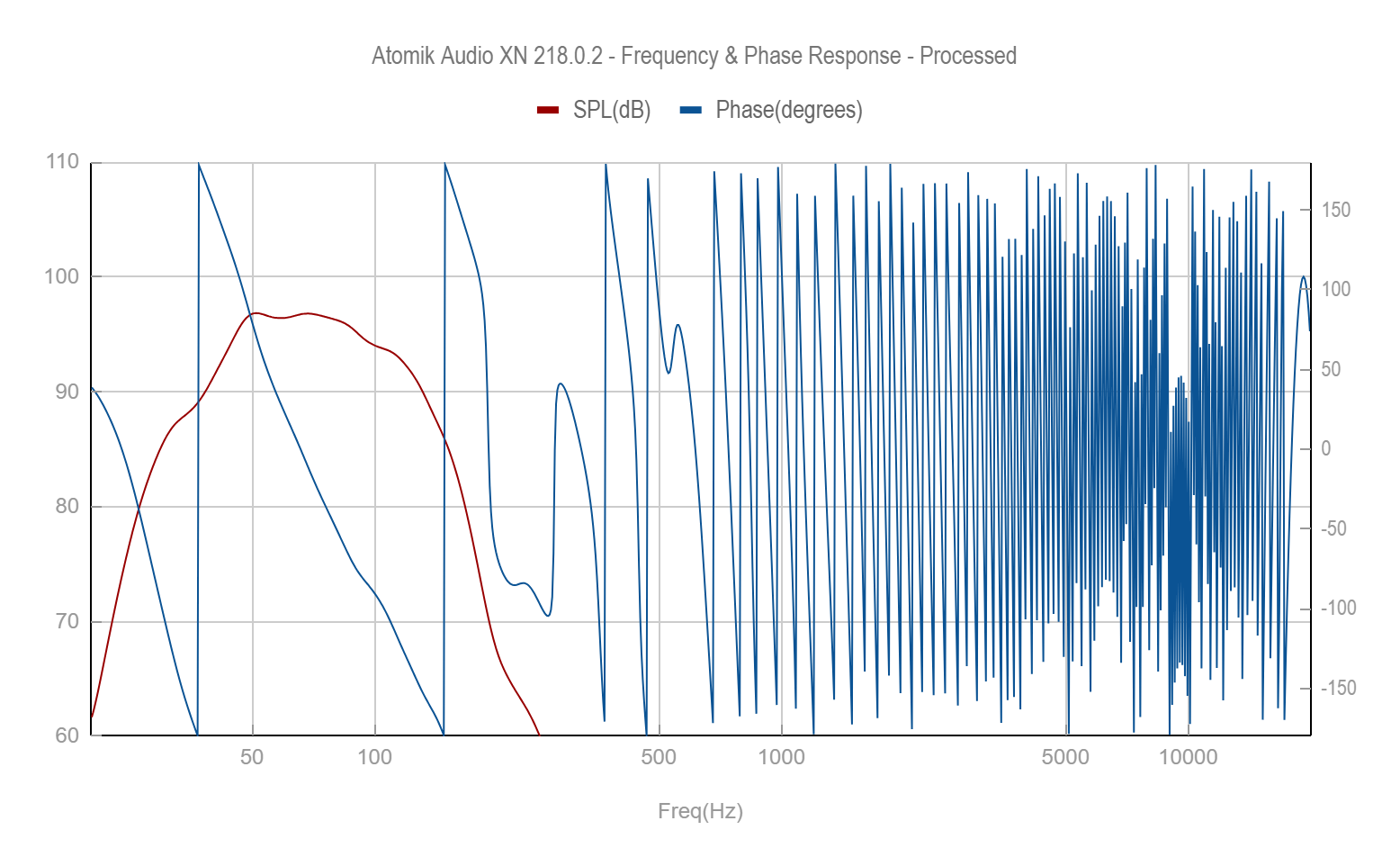

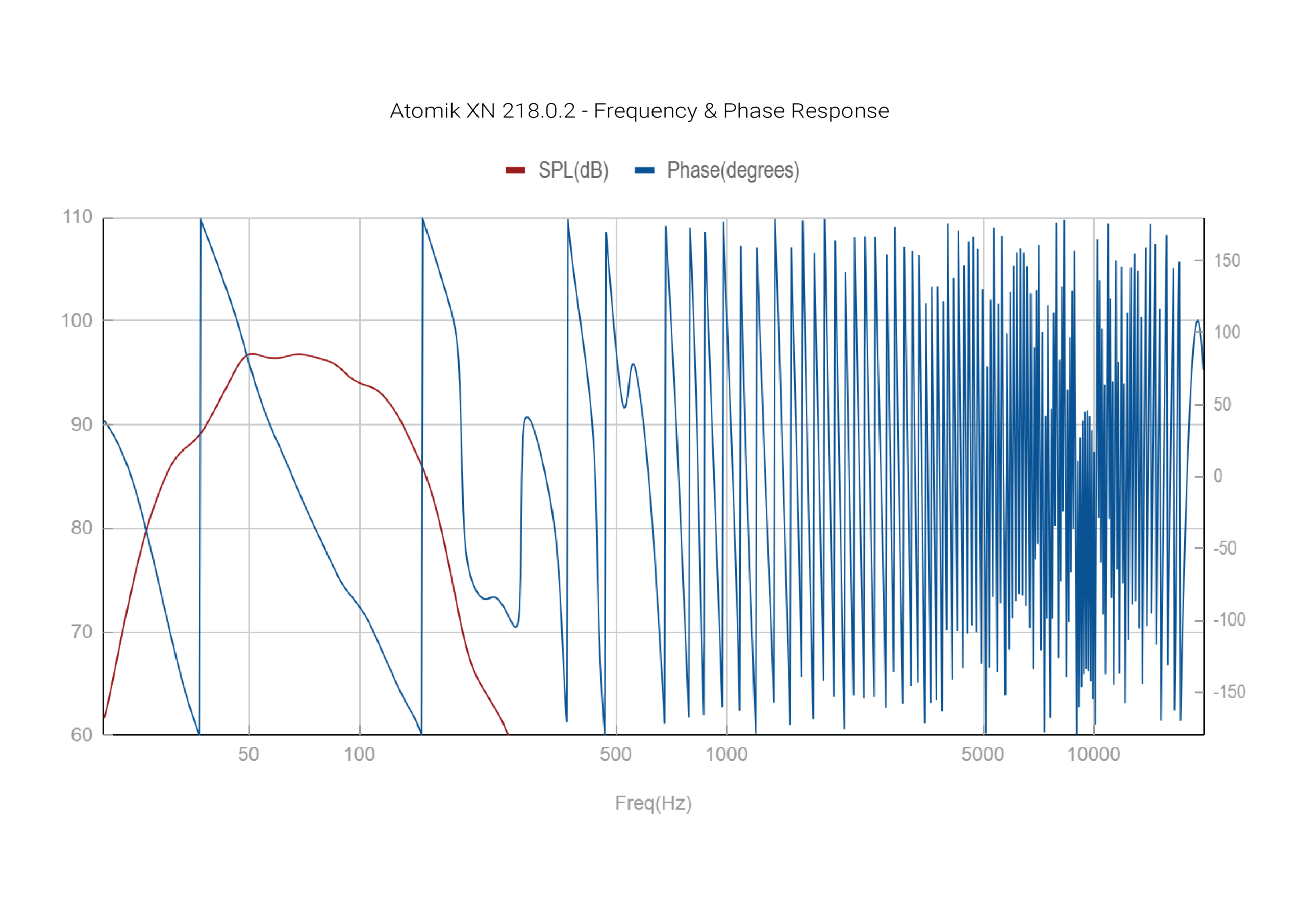

Frequency & Phase Response – Processed

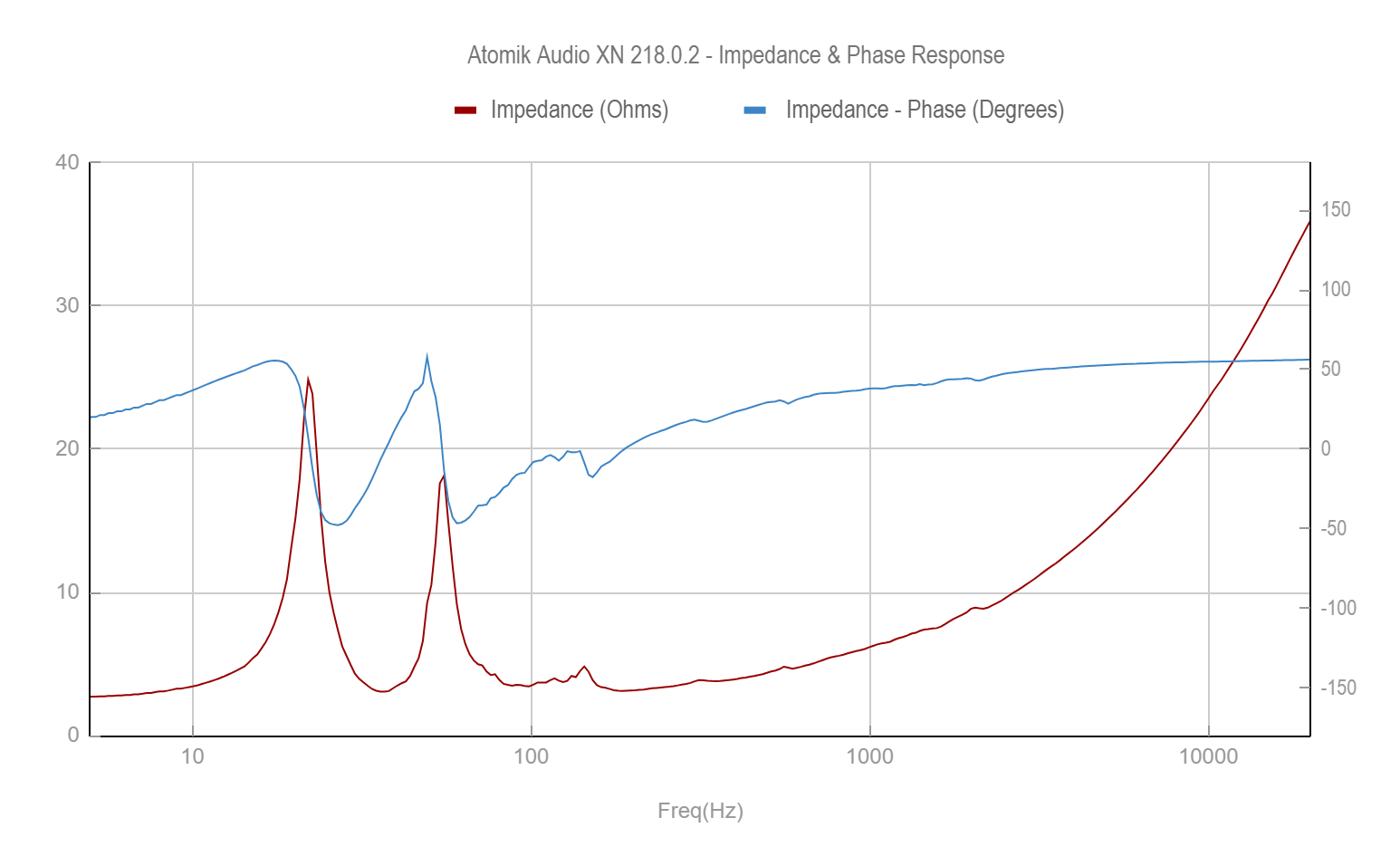

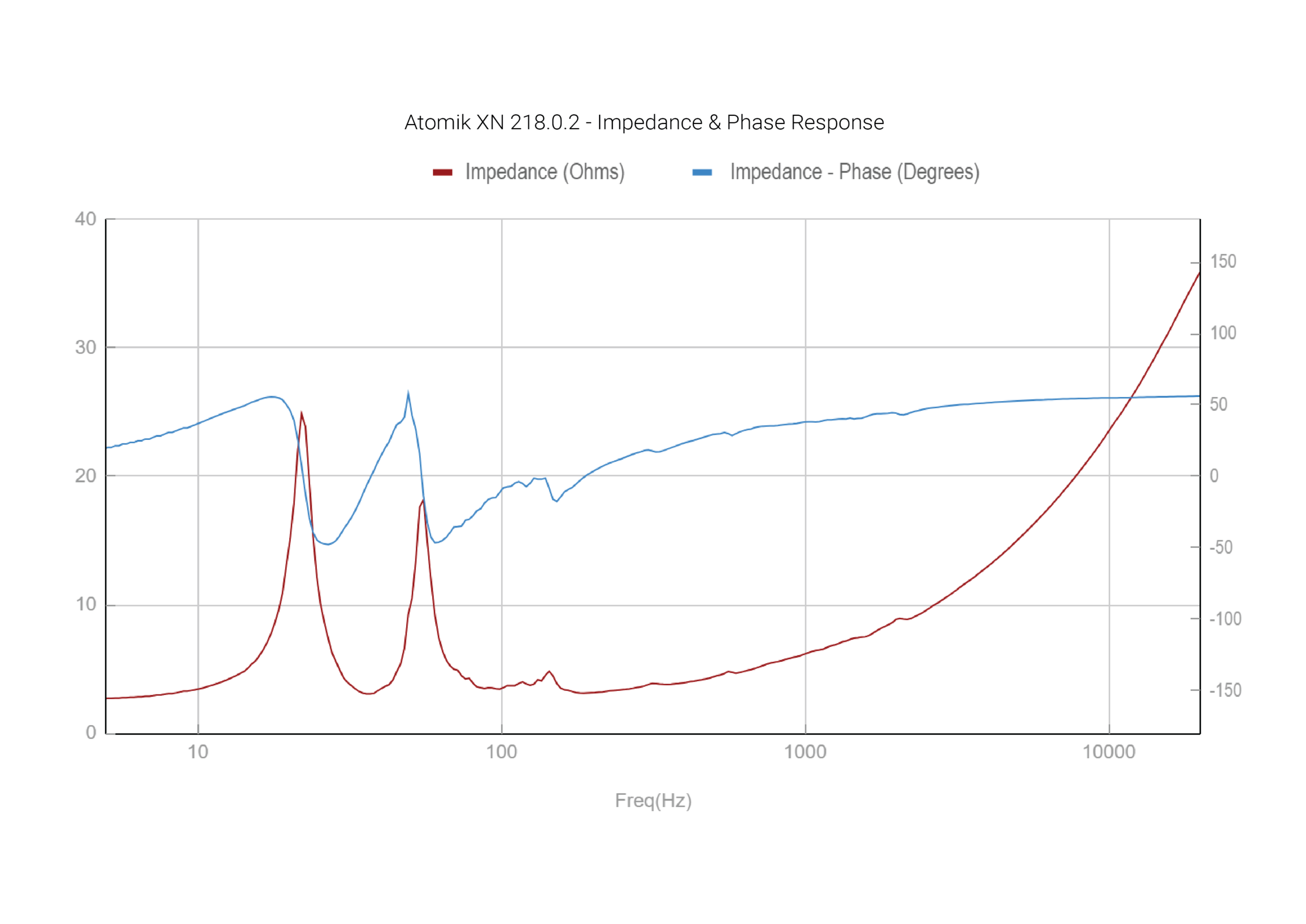

Impedance & Phase Response
For more detailed information about this product, please refer to the documents listed below
