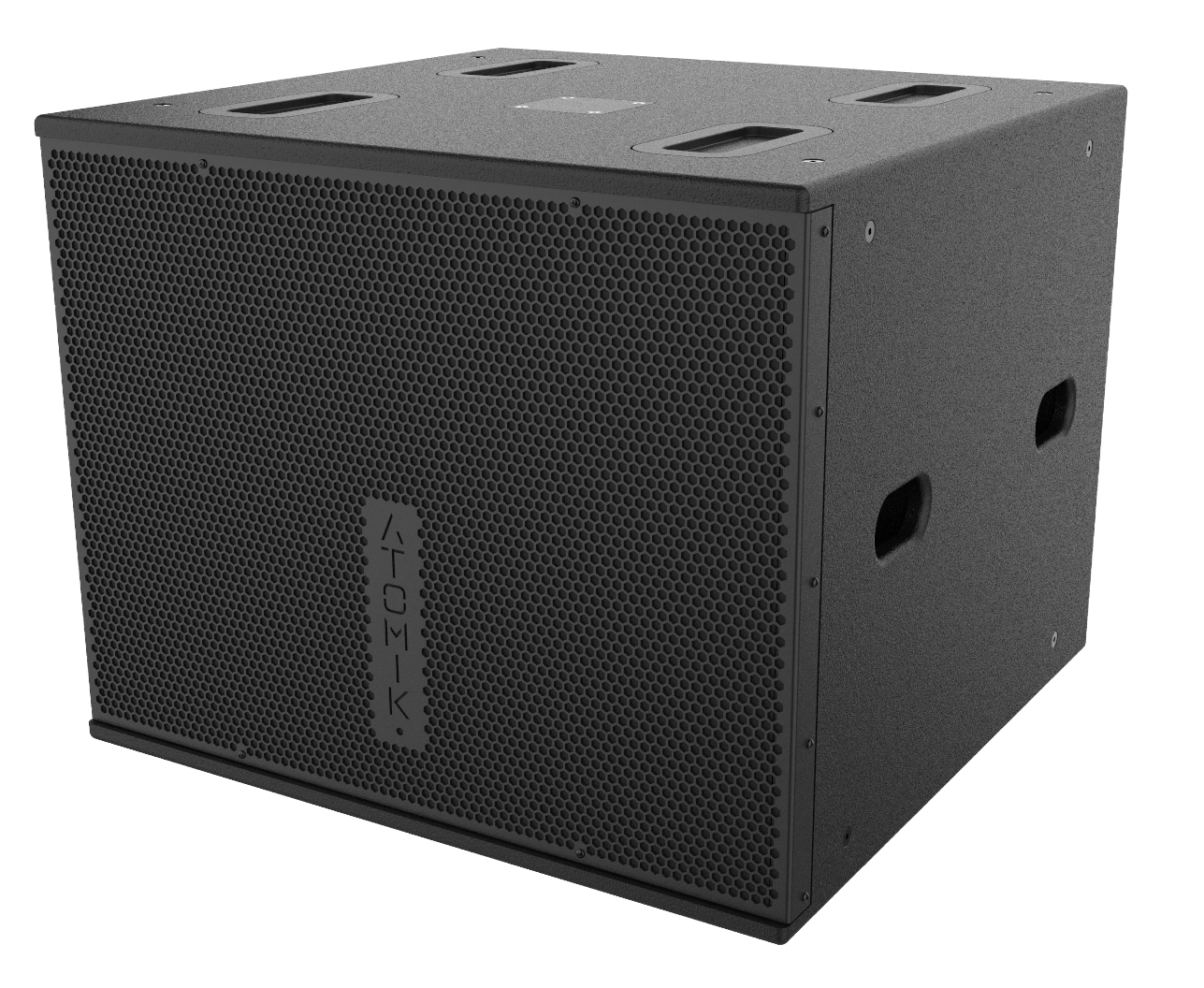

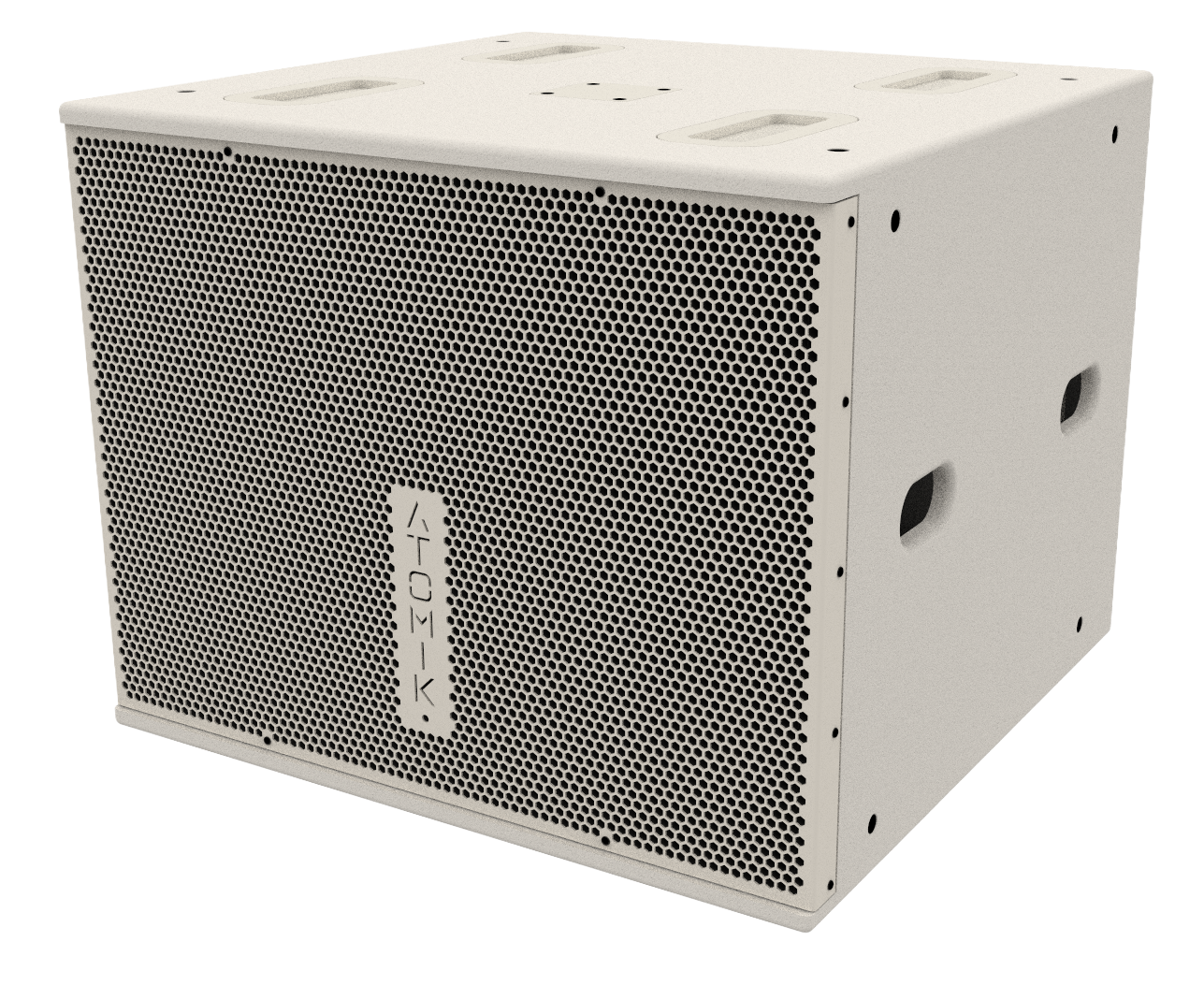

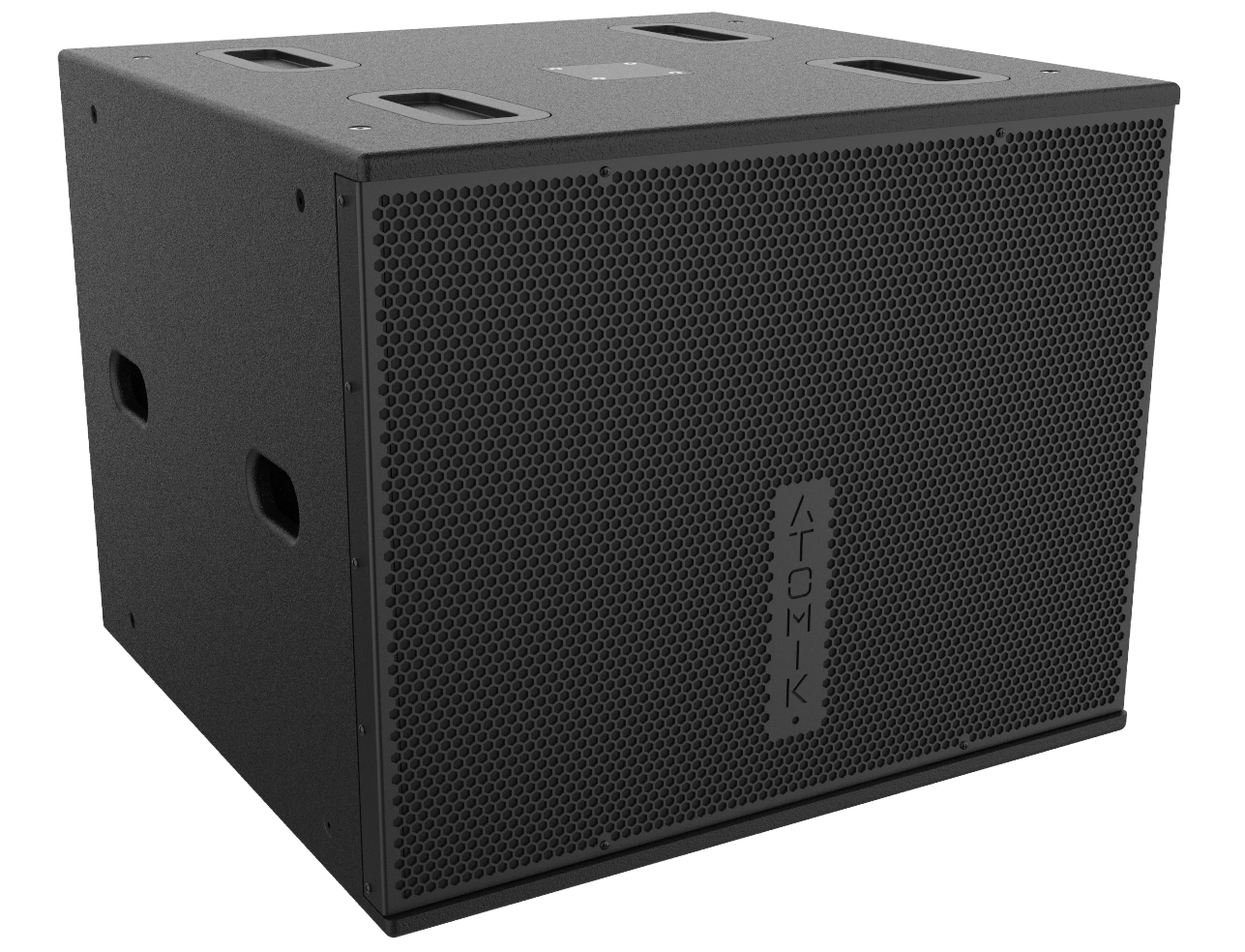

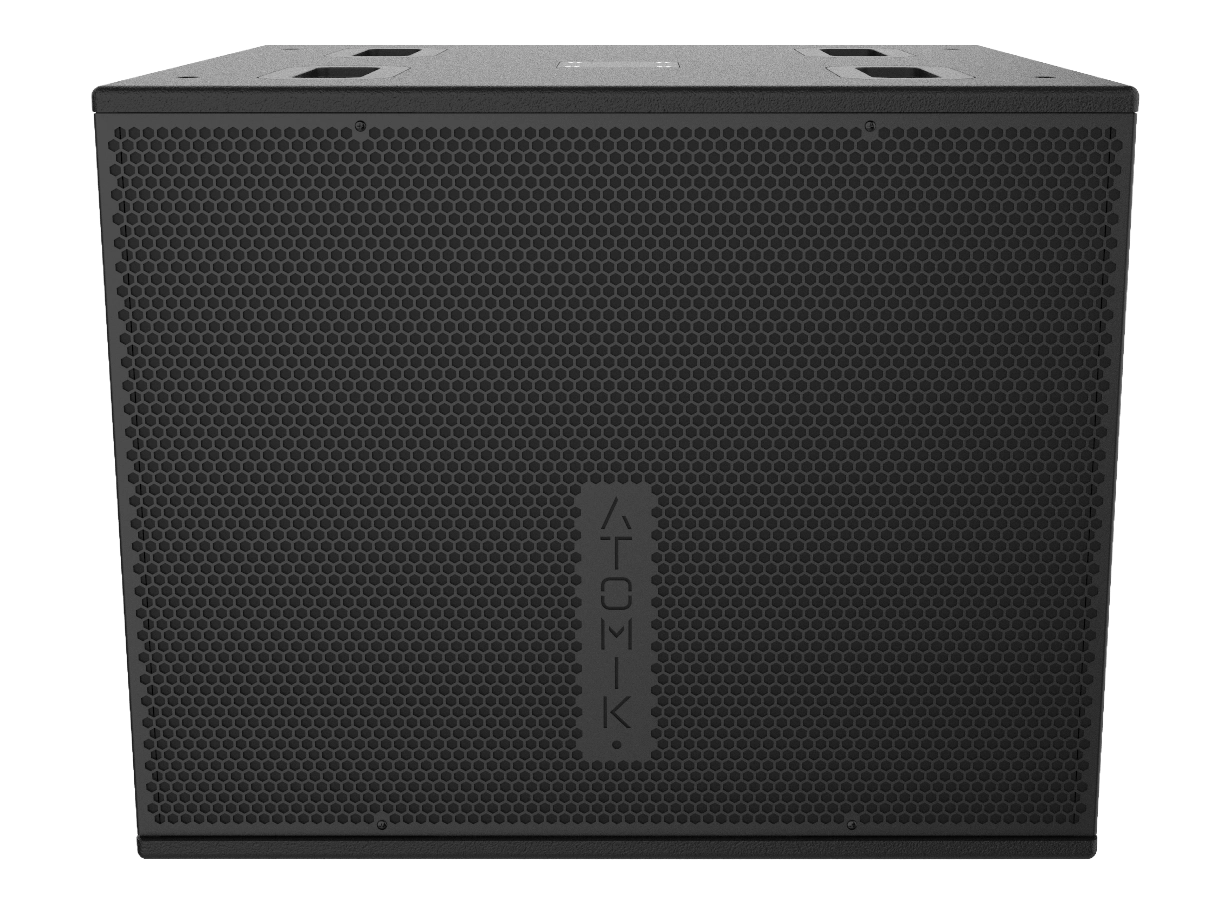

DESCRIPTION
The Atomik Audio XN 18.0.2 is a high powered ported sub bass loudspeaker, designed for the pro-audio rental and fixed installation markets.
This design is able to achieve high SPLs for a bass reflex design.
The four large ports ensure high output with very low distortion and power compression.
It can be paired with any of the Atomik Audio XN series of full range loudspeakers.
Features
- Very high SPL output for a single 18” subwoofer.
- 18” driver with 4” voice coil.
- Exceptional punch and impact from a single driver subwoofer.
- Dual Neutrik NL4 connectors.
- Heavy duty 18mm marine plywood enclosure.
- 2mm thick steel grill with an acoustic micro foam backing.

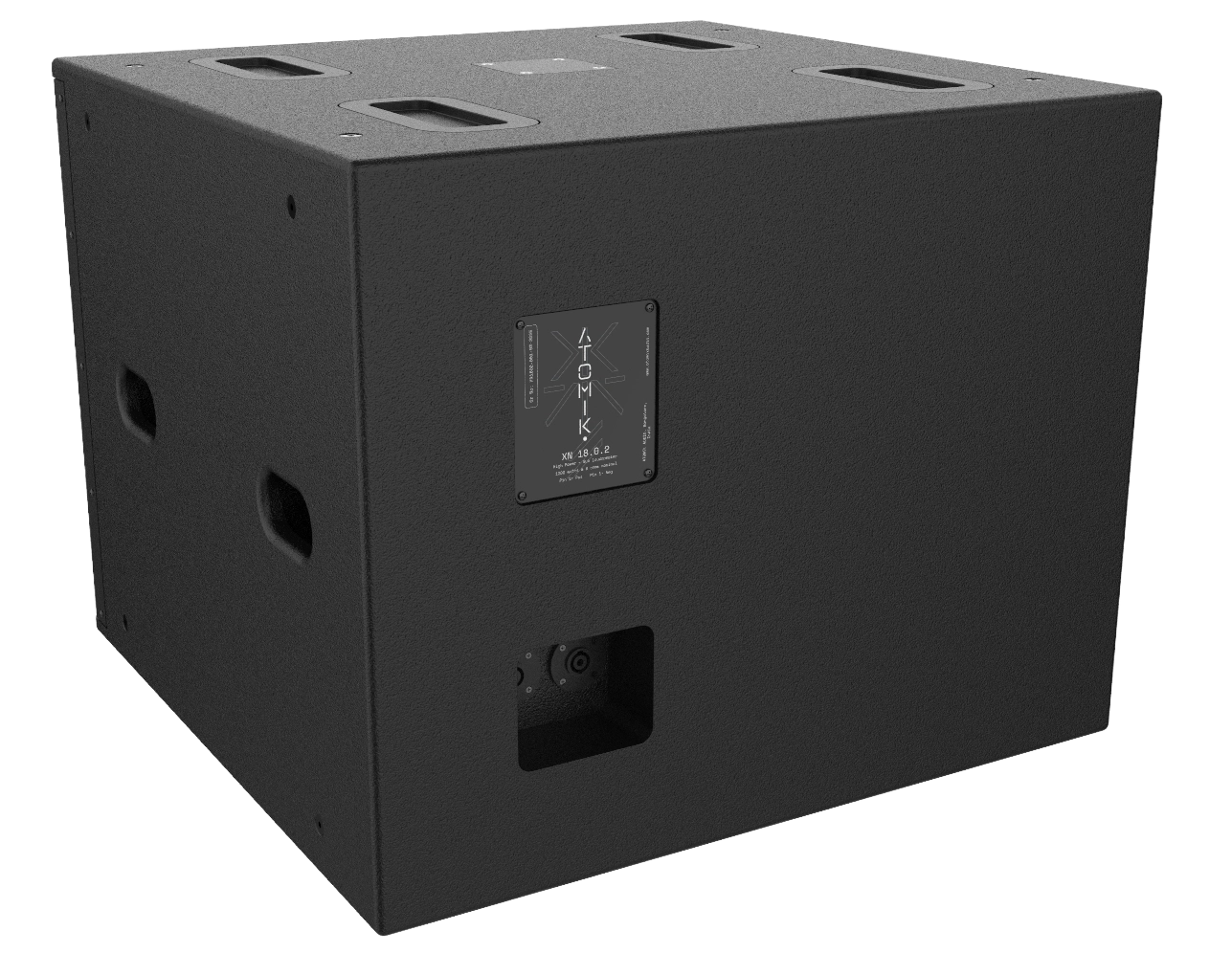

- Recessed pocket for the speakon connectors.
- Perfectly suited for any DJ or Live performance.
Technical Specifications
LF Driver
18″ ferrite sub driver with a 100 mm voice coil.
18″ ferrite sub driver with a 100 mm voice coil.
Enclosure
Ported
Ported
Axial Sensitivity
98dB @ 1w/1m
98dB @ 1w/1m
Maximum SPL
130dB @ 1m
130dB @ 1m
Power
Max 1200 watts long term continuous / Peak 2400 watts
Max 1200 watts long term continuous / Peak 2400 watts
Nominal Impedance
8 ohms
8 ohms
Frequency Response
-3dB 42Hz to 300kHz
-3dB 42Hz to 300kHz
Dimensions (in mm & in WxHxD)
738mm x 595mm x 708mm, 29″ x 23.4″ x 27.9″
738mm x 595mm x 708mm, 29″ x 23.4″ x 27.9″
Weight
47kgs / 104lbs
47kgs / 104lbs
*Atomik Audio products are continually improved. All specifications are therefore subject to change without notice.
Frequency & Phase Response – Raw

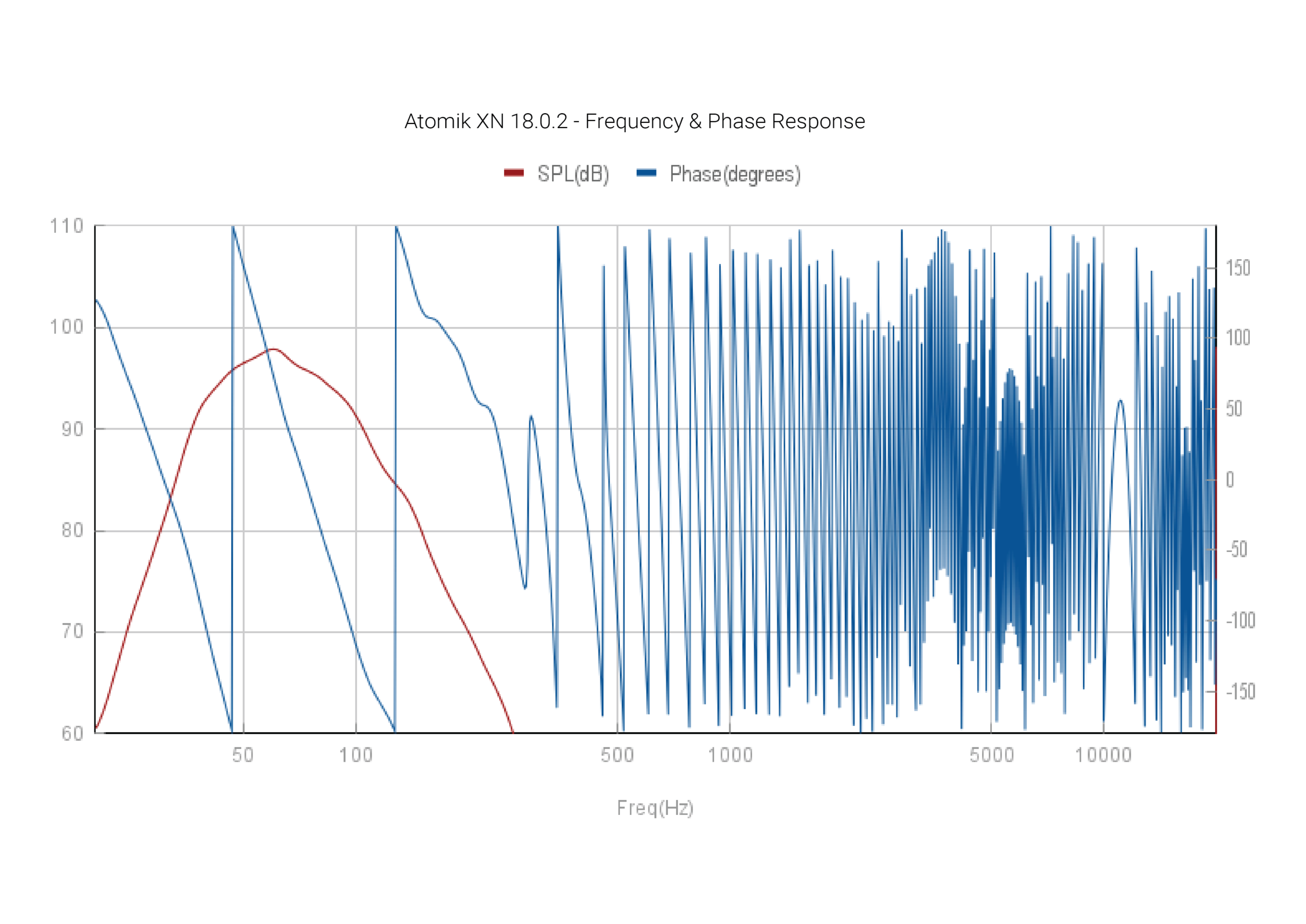

Frequency & Phase Response – Processed

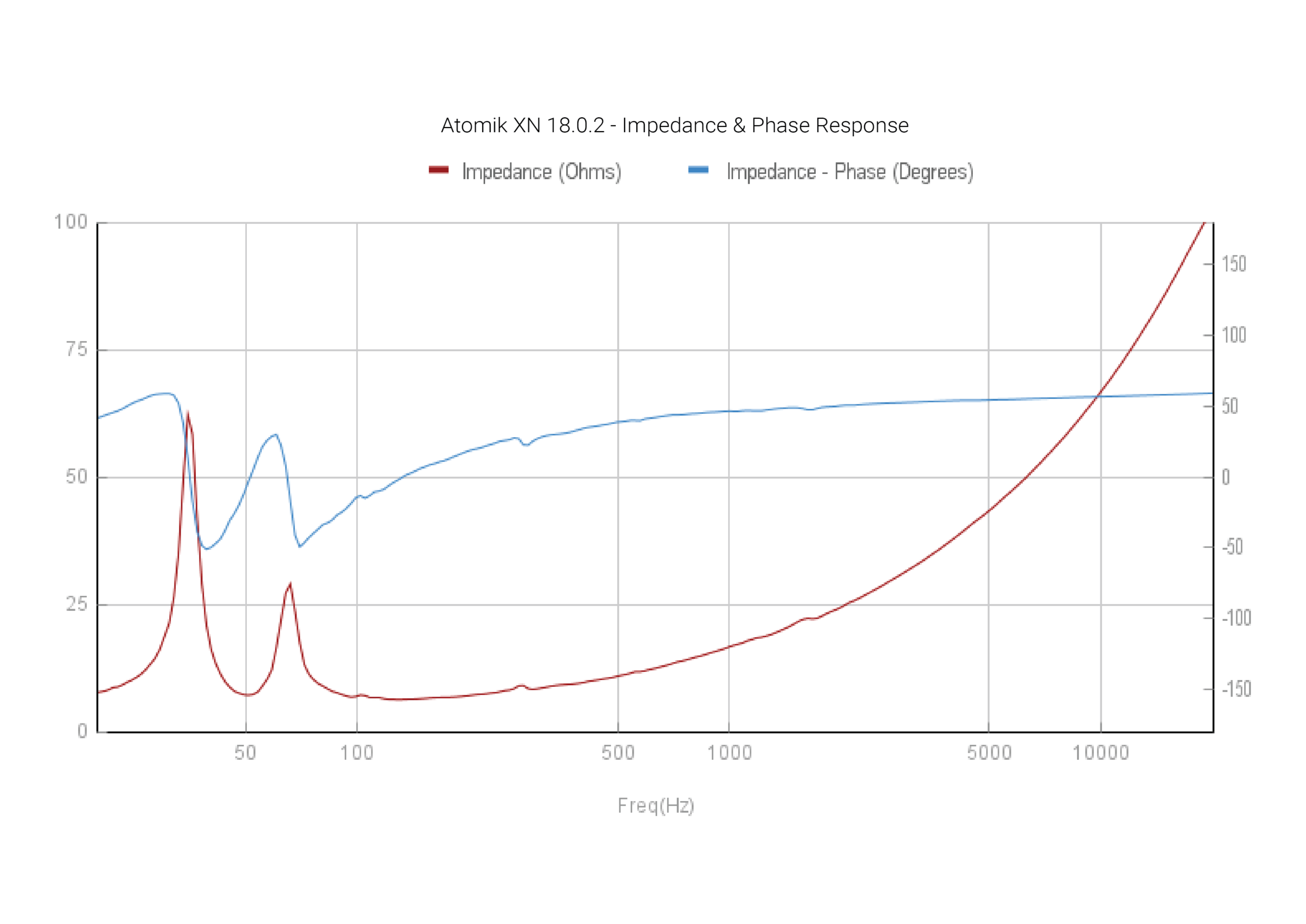

Impedance & Phase Response
