DESCRIPTION

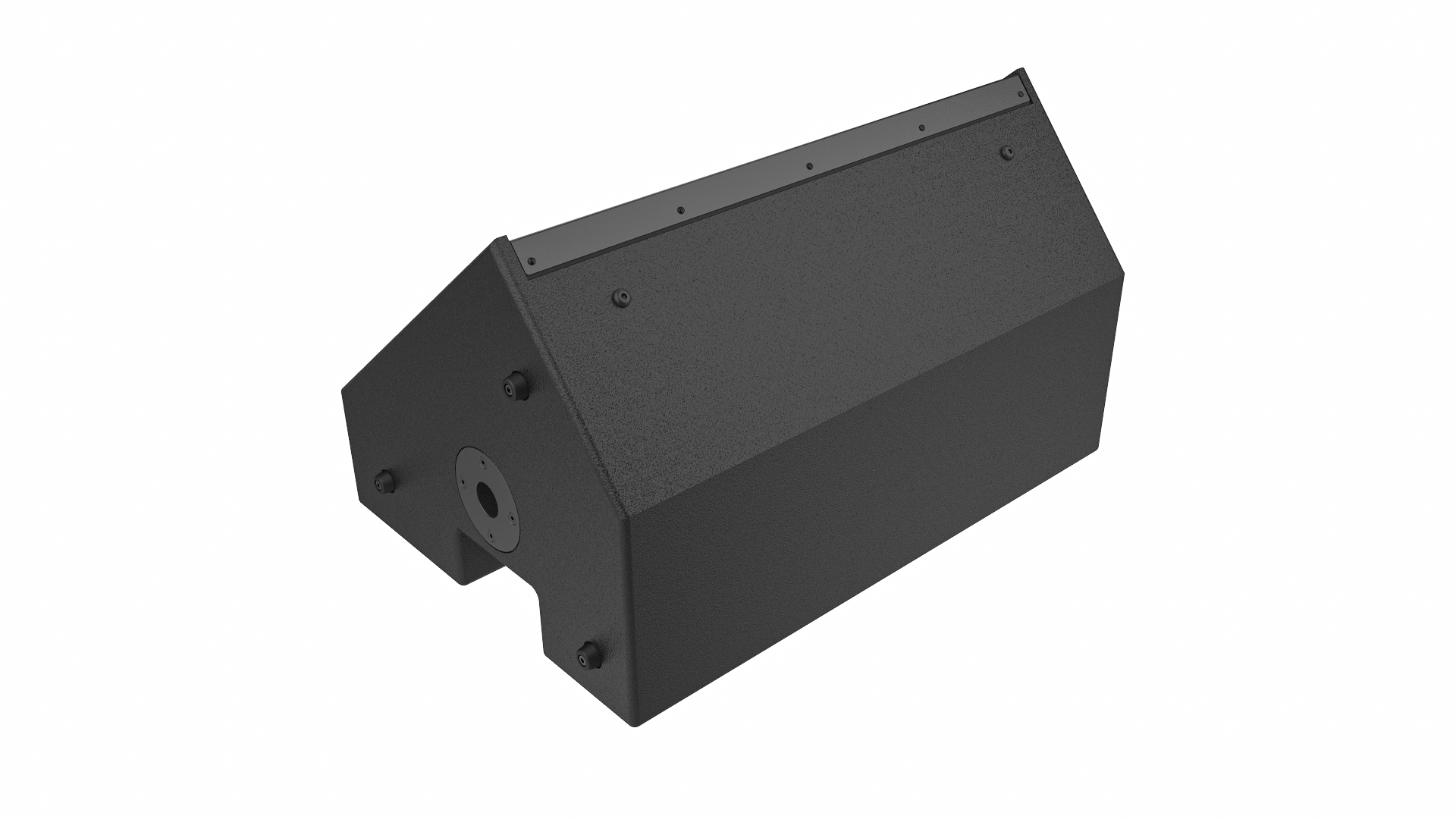

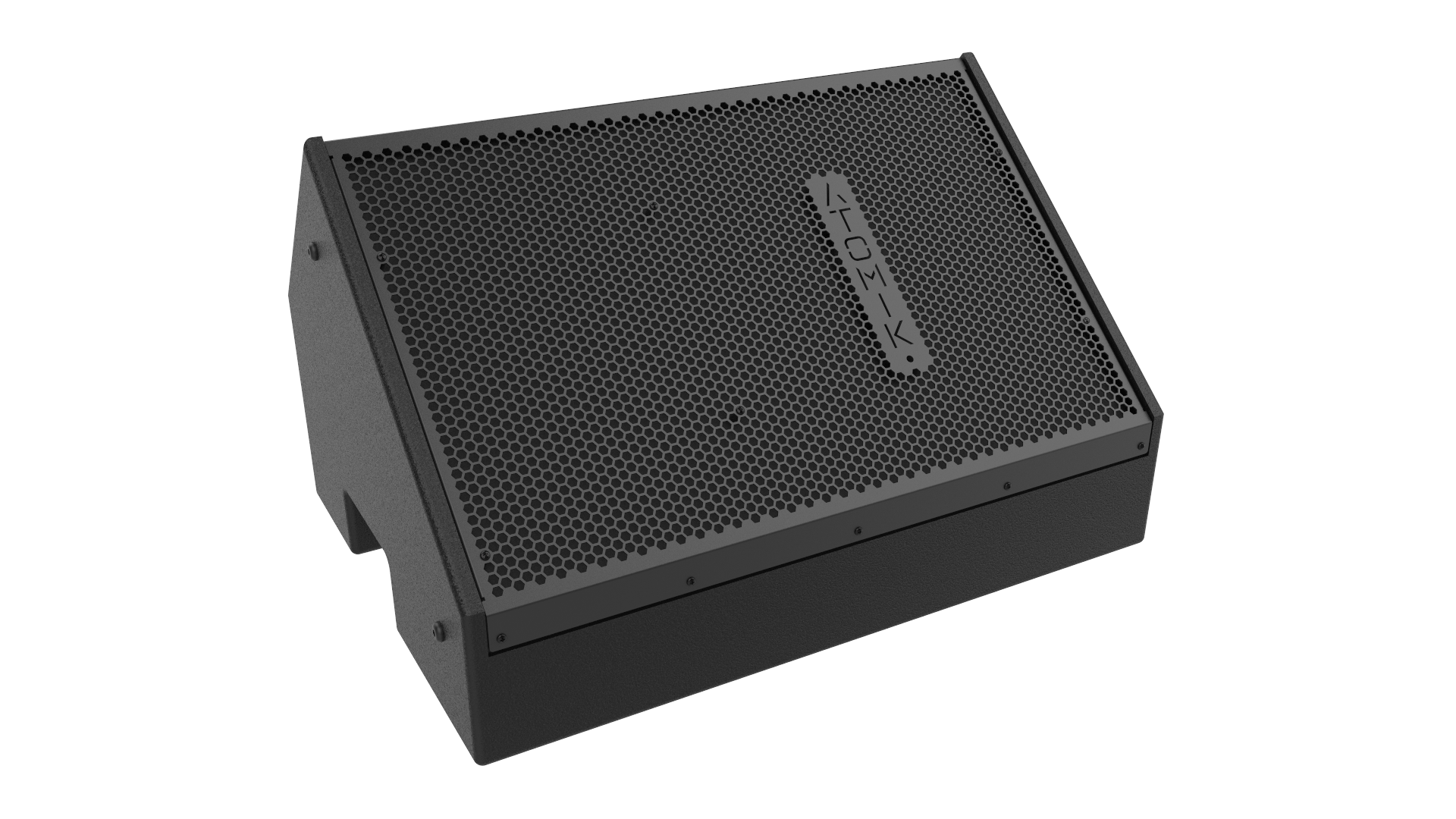

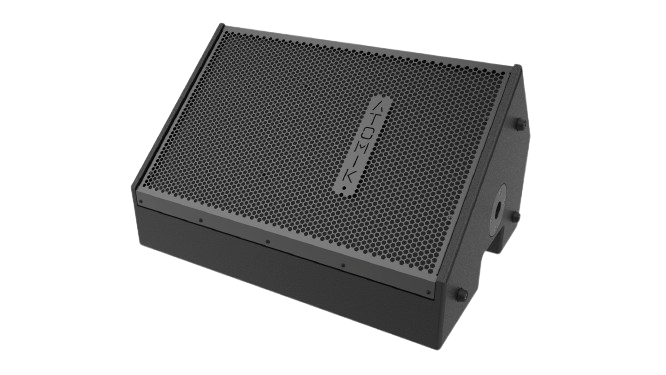

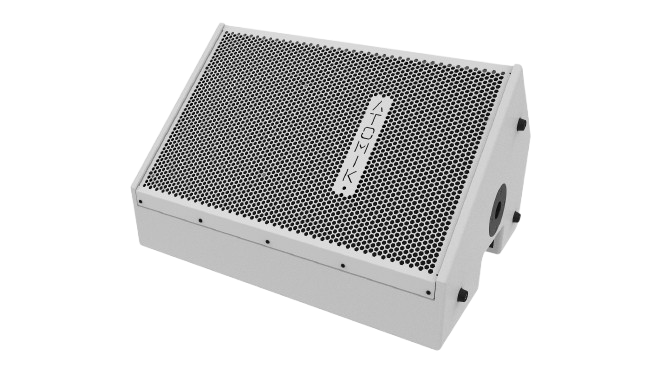

The Atomik Audio XN15M is a 2-way passive full-range wedge monitor, designed for live performances.
It delivers extreme high SPL and high resolution, so much that this enclosure can be easily substituted for a main PA applications.
A powerful low end makes it a very popular monitor amongst the DJ community.
Features
- Very high SPL output.
- Exceptional fidelity & high resolution loudspeaker system.
- Built-in passive crossover.

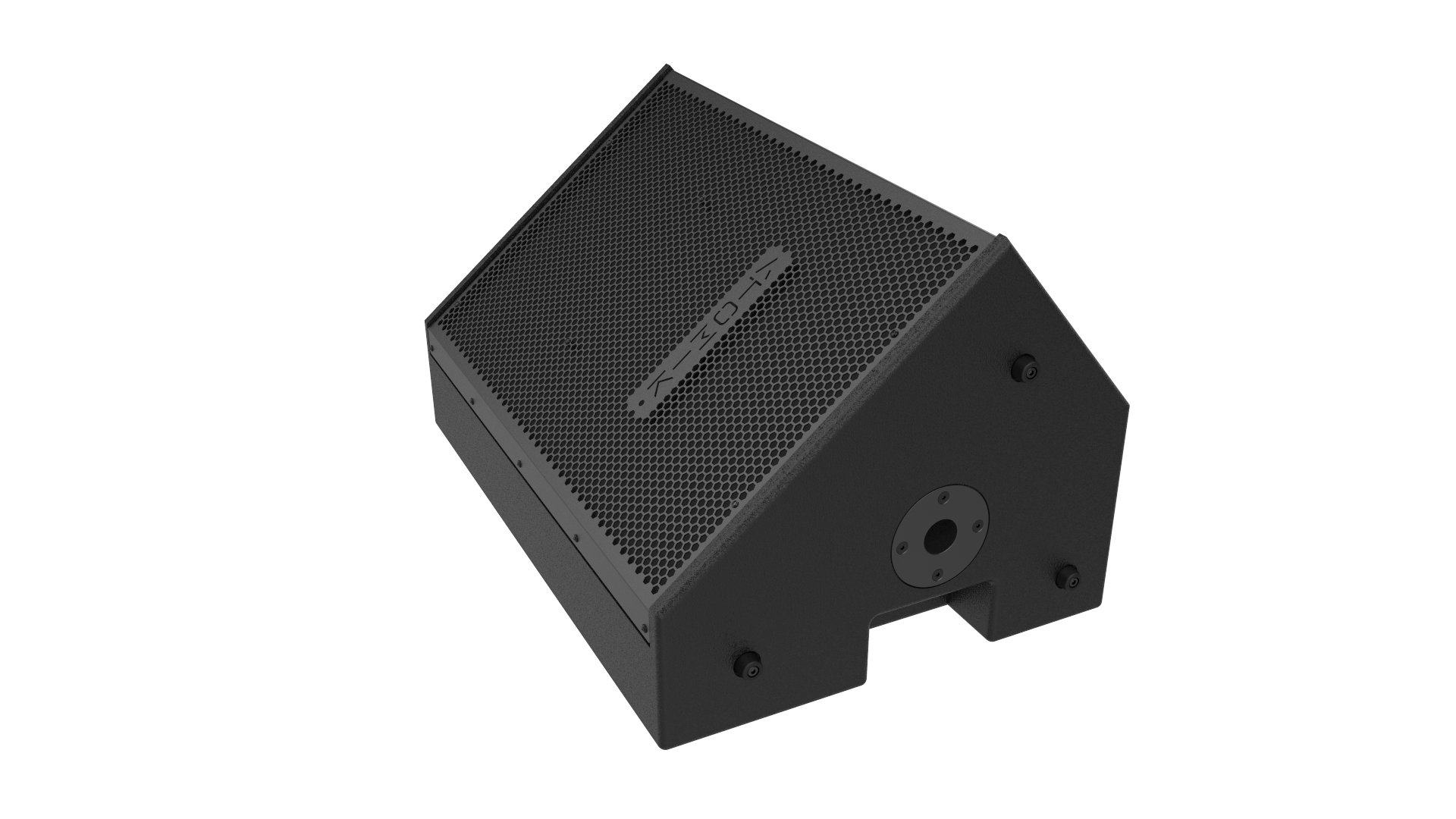

- Speakon connectors on the sides of the enclosure ensures the cables/connectors are not visible by the audience.
- Top hat for sub woofer mounting for Main PA applications.
- Easily compatible with the XN 18.0.2 Sub Woofer or the passive crossover can be easily accessed
- for repair and maintenance from the outside without having to remove the grill/drivers etc.
- Heavy duty 16mm marine plywood enclosure.
- 2mm thick steel grill with an acoustic micro foam backing.
- 5 x M10 rigging points for easy flying.
Technical Specifications
HF Driver
1.4″ HF ferrite compression driver with a 51.6 mm voice coil and titanium diaphragm.
1.4″ HF ferrite compression driver with a 51.6 mm voice coil and titanium diaphragm.
LF Driver
15″ LF ferrite driver with a 100 mm voice coil.
15″ LF ferrite driver with a 100 mm voice coil.
HF Horn
60 x 40 degree nominal coverage pattern, rotatable HF horn.
60 x 40 degree nominal coverage pattern, rotatable HF horn.
Enclosure
Ported
Ported
Axial Sensitivity
101dB @ 1w/1m
101dB @ 1w/1m
Maximum SPL
132dB @ 1m
132dB @ 1m
Power
Max 1200 watts long term continuous / Peak 2400 watts
Max 1200 watts long term continuous / Peak 2400 watts
Nominal Impedance
8 ohms passive
8 ohms passive
Frequency Response
-3dB 50Hz to 18kHz
-3dB 50Hz to 18kHz
Dimensions in mm & in WxHxD
706mm x 432mm x 496mm, 28″ x 17″ x 19.5″
706mm x 432mm x 496mm, 28″ x 17″ x 19.5″
Weight
45kgs / 99lbs
45kgs / 99lbs
*Atomik Audio products are continually improved. All specifications are therefore subject to change without notice.

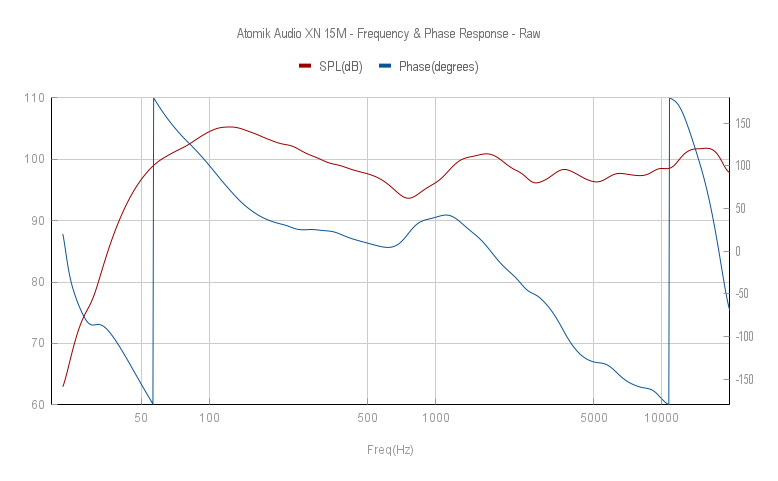

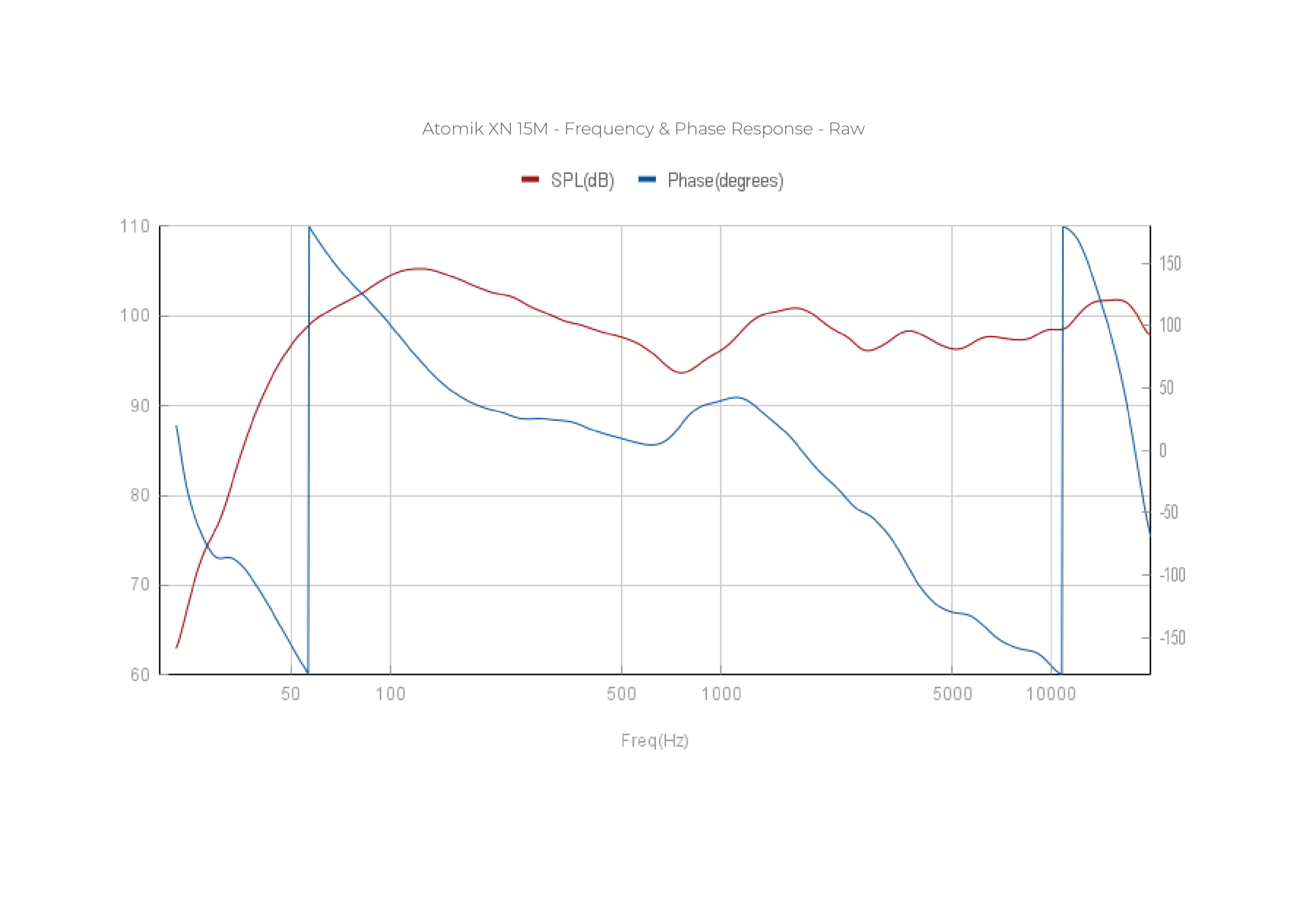

Frequency & Phase Response – Raw
Frequency & Phase Response – Raw

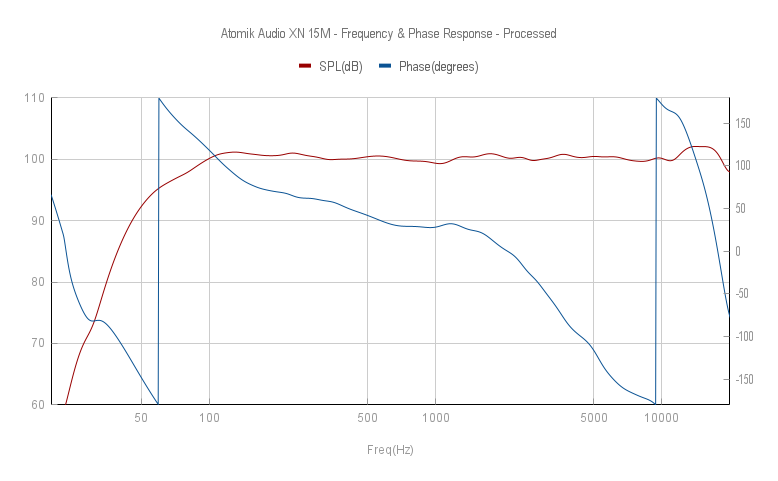

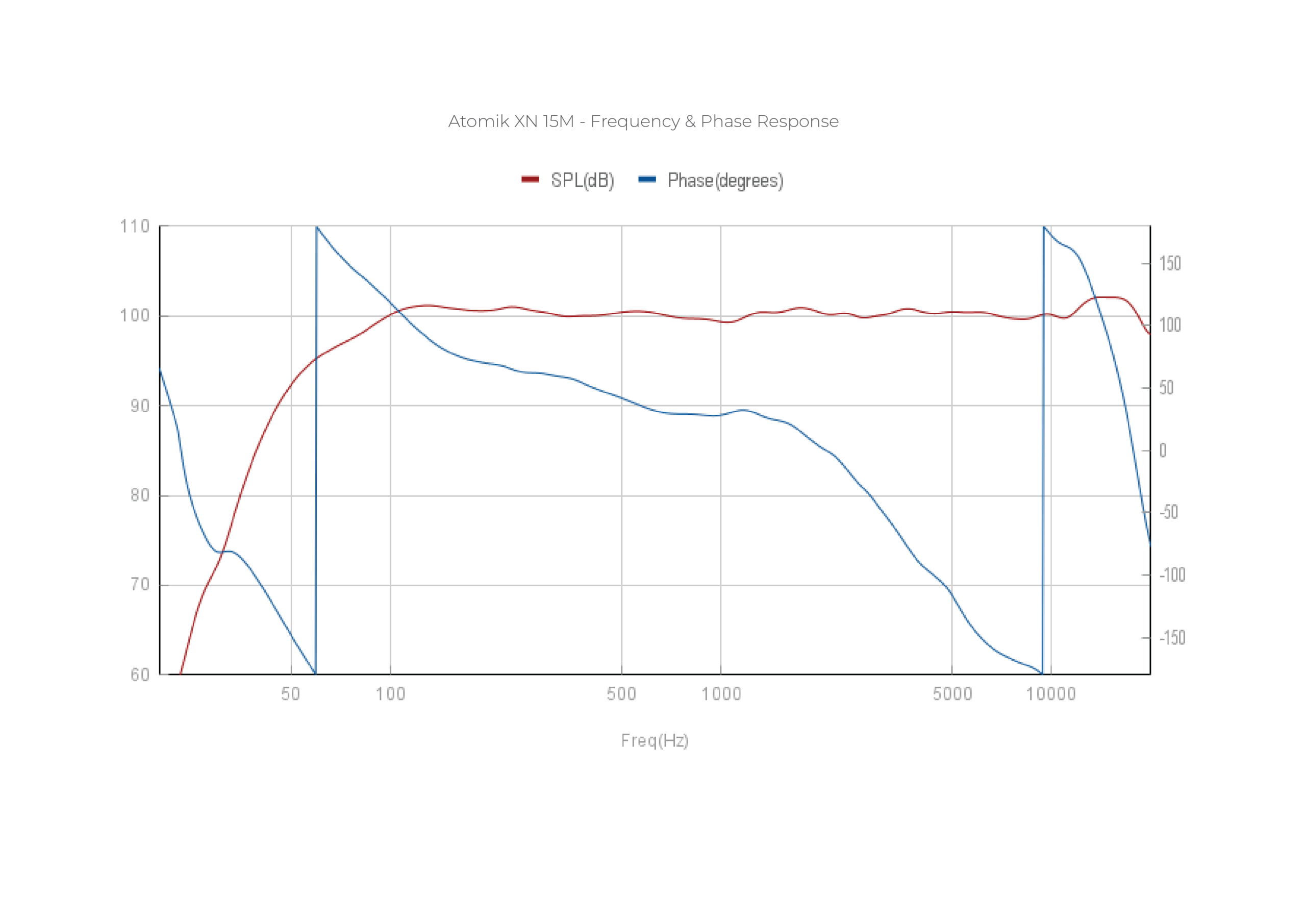

Frequency & Phase Response – Processed
Frequency & Phase Response – Processed

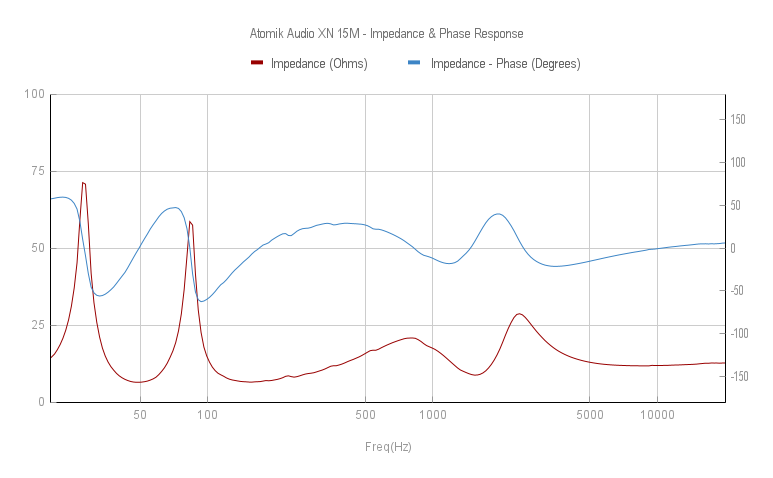

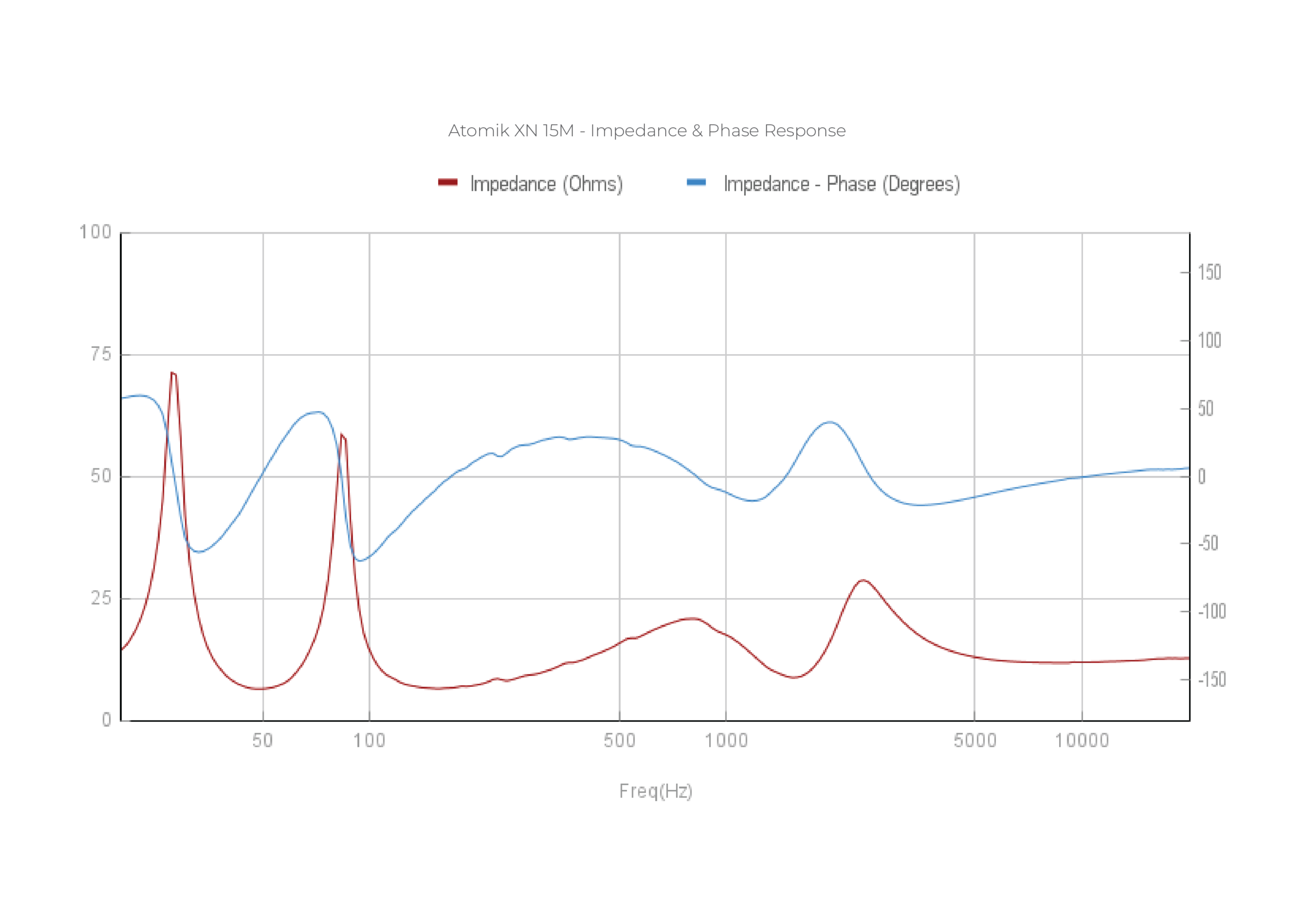

Impedance & Phase Response
Impedance & Phase Response
