DESCRIPTION

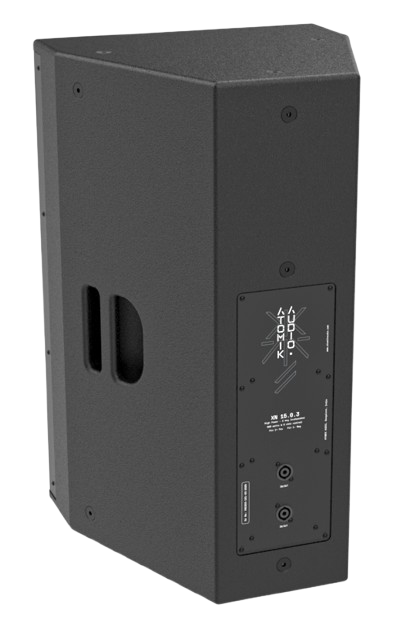

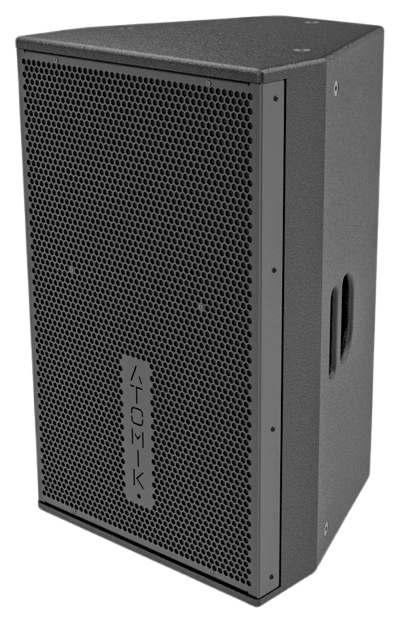

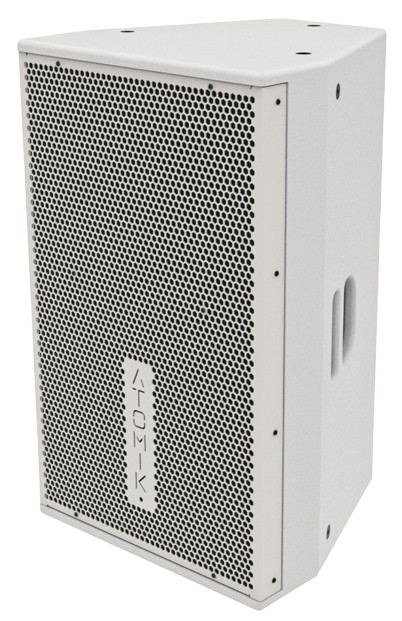

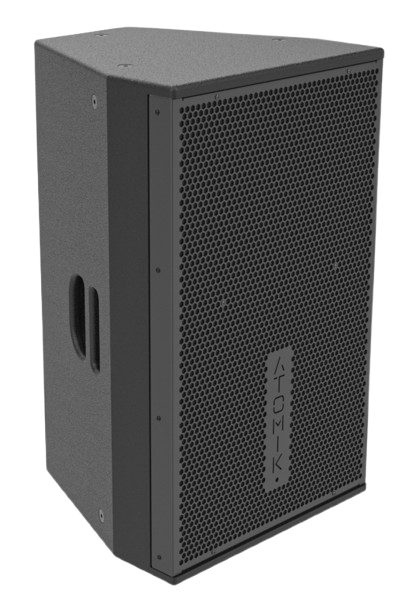

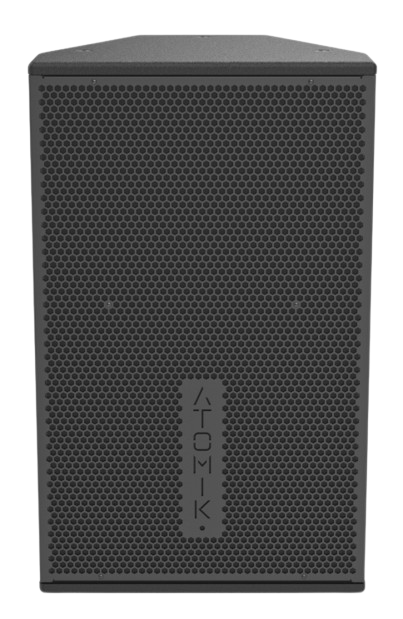

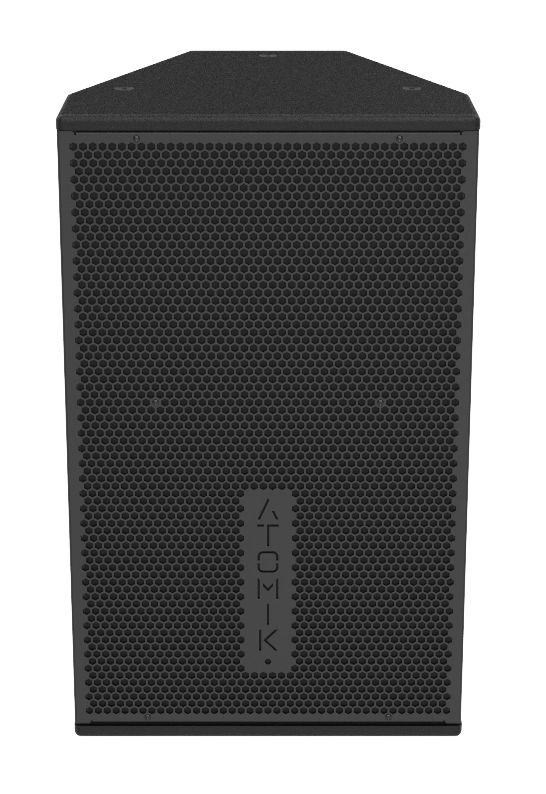

The Atomik Audio XN 15.0.2 is a 2-way passive full-range loudspeaker, designed for the pro-audio rental and fixed installation markets.
This point source box can be used individually or arrayed with up to 3 boxes into a single spherical point source array.
It features a 1.4″ HF driver and a 15″ LF driver for low frequencies, making it a high-output enclosure.
For optimal sound reinforcement with high SPL, we recommend using this enclosure with our subwoofers.
Features
- Very high SPL output.
- Exceptional fidelity & high resolution loudspeaker system.
- Very smooth power response.
- High sensitivity design.
- Dual Neutrik NL4 connectors.
- Easily compatible with the XN 18.0.1 Sub Woofer or the XN 218.0.1 Subwoofer.
- Heavy duty 16mm marine plywood enclosure.
- 2mm thick steel grill with an acoustic micro foam backing.
- 3 x M10 rigging points for easy flying.
- Passive crossover.
Technical Specifications
HF Driver
1.4″ HF ferrite compression driver with a 51.6 mm voice coil and titanium diaphragm
1.4″ HF ferrite compression driver with a 51.6 mm voice coil and titanium diaphragm
LF Driver
15″ LF ferrite driver with a 76.2 mm voice coil
15″ LF ferrite driver with a 76.2 mm voice coil
HF Horn

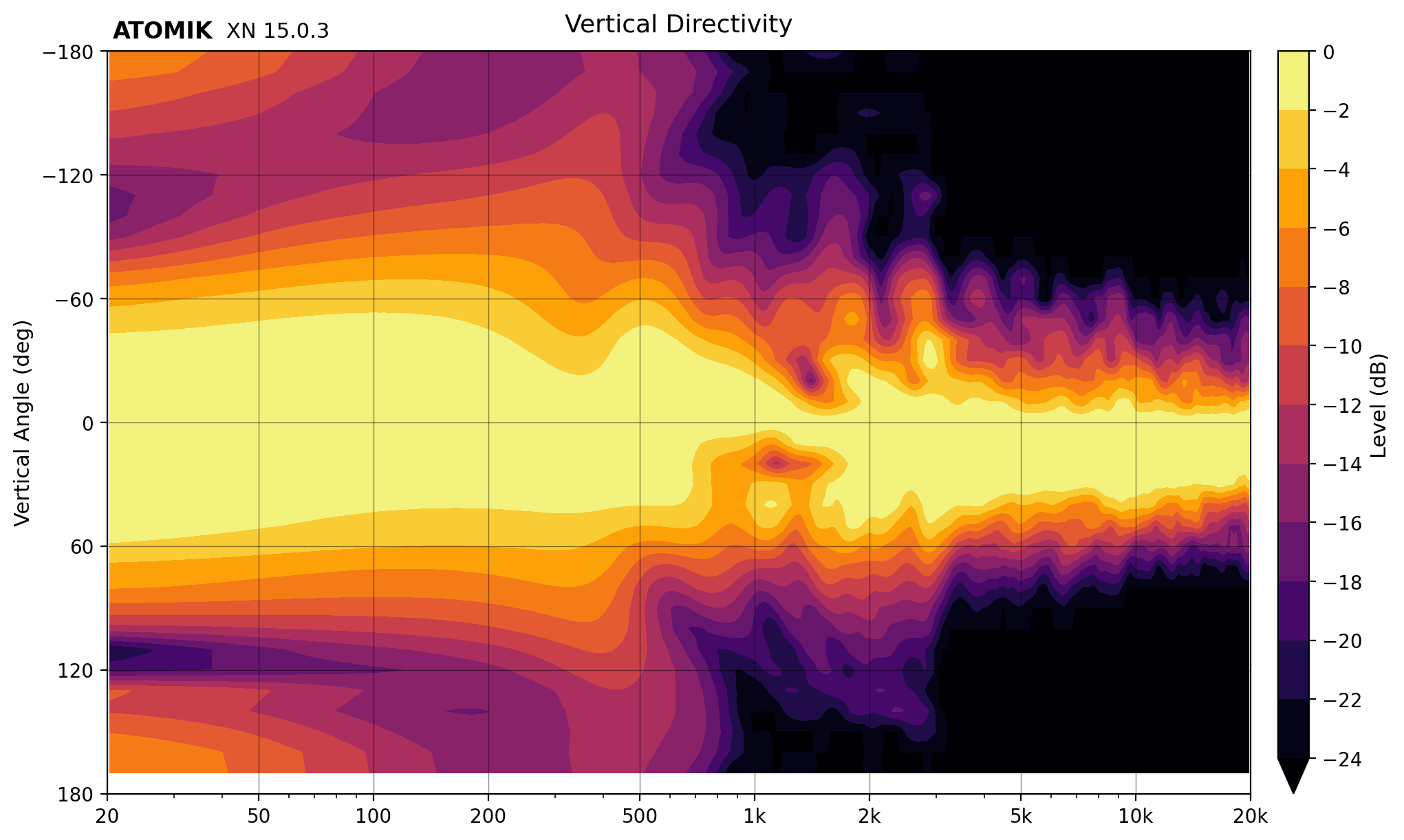

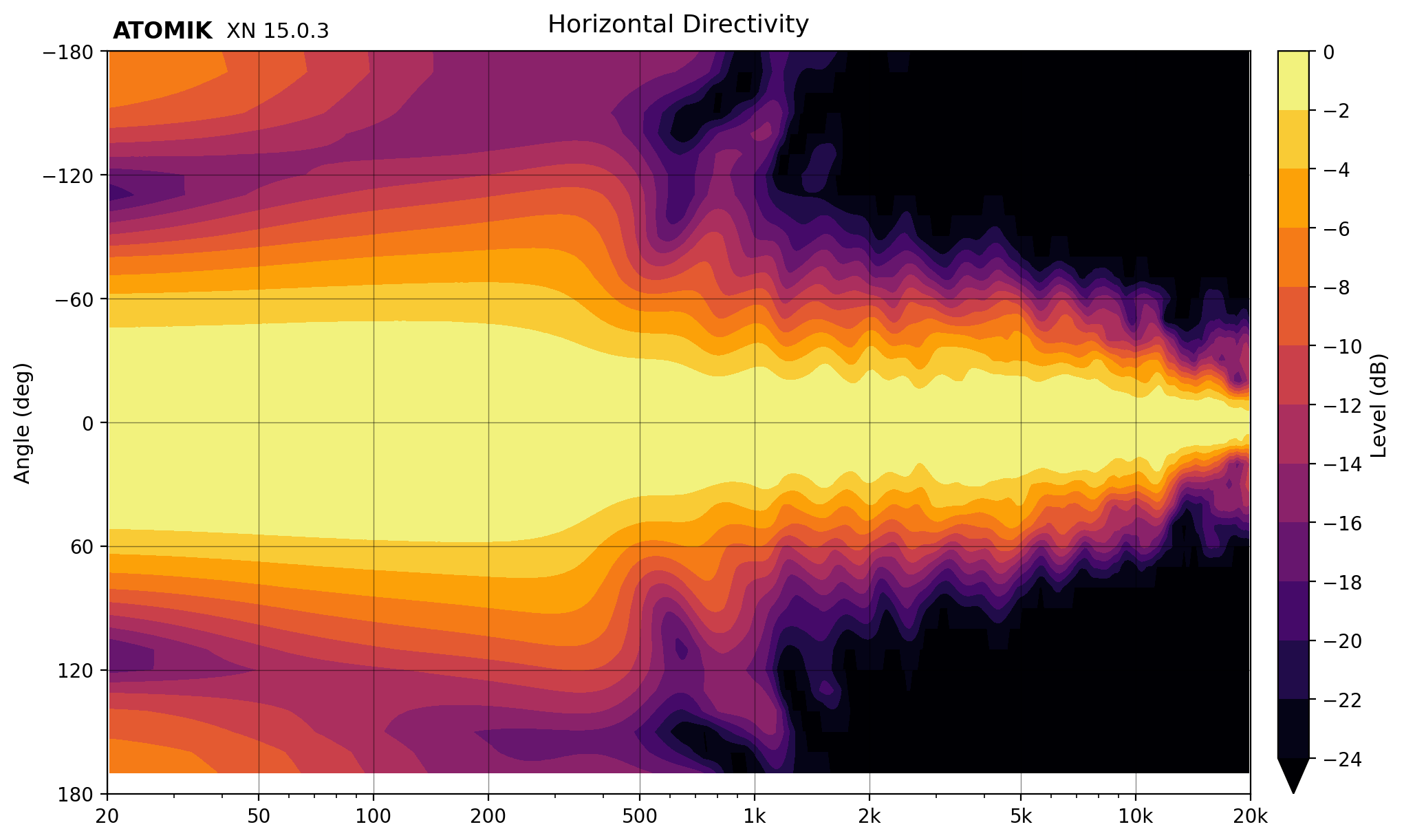

60 x 40 degree nominal coverage pattern, rotatable HF horn
60 x 40 degree nominal coverage pattern, rotatable HF horn
Enclosure
Ported
Ported
Axial Sensitivity
101dB @ 1w/1m
101dB @ 1w/1m
Maximum SPL
130dB @ 1m
130dB @ 1m
Power
Max 500 watts long term continuous / Peak 1000 watts
Max 500 watts long term continuous / Peak 1000 watts
Nominal Impedance
8 ohms passive
8 ohms passive
Frequency Response
-3dB 65Hz to 18kHz
-3dB 65Hz to 18kHz
Dimensions in mm & in WxHxD
436mm x 757mm x 415mm, 17.2″ x 29.8″ x 16.3″
436mm x 757mm x 415mm, 17.2″ x 29.8″ x 16.3″
Weight
40kgs / 88lbs
40kgs / 88lbs
*Atomik Audio products are continually improved. All specifications are therefore subject to change without notice.

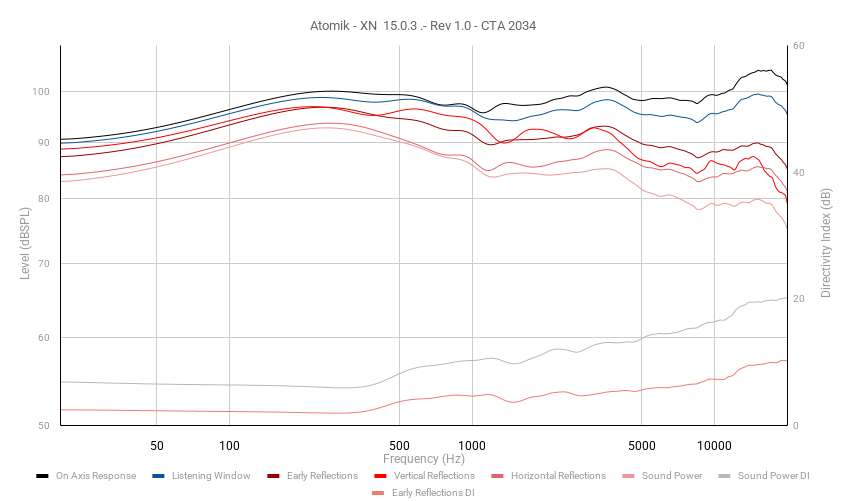

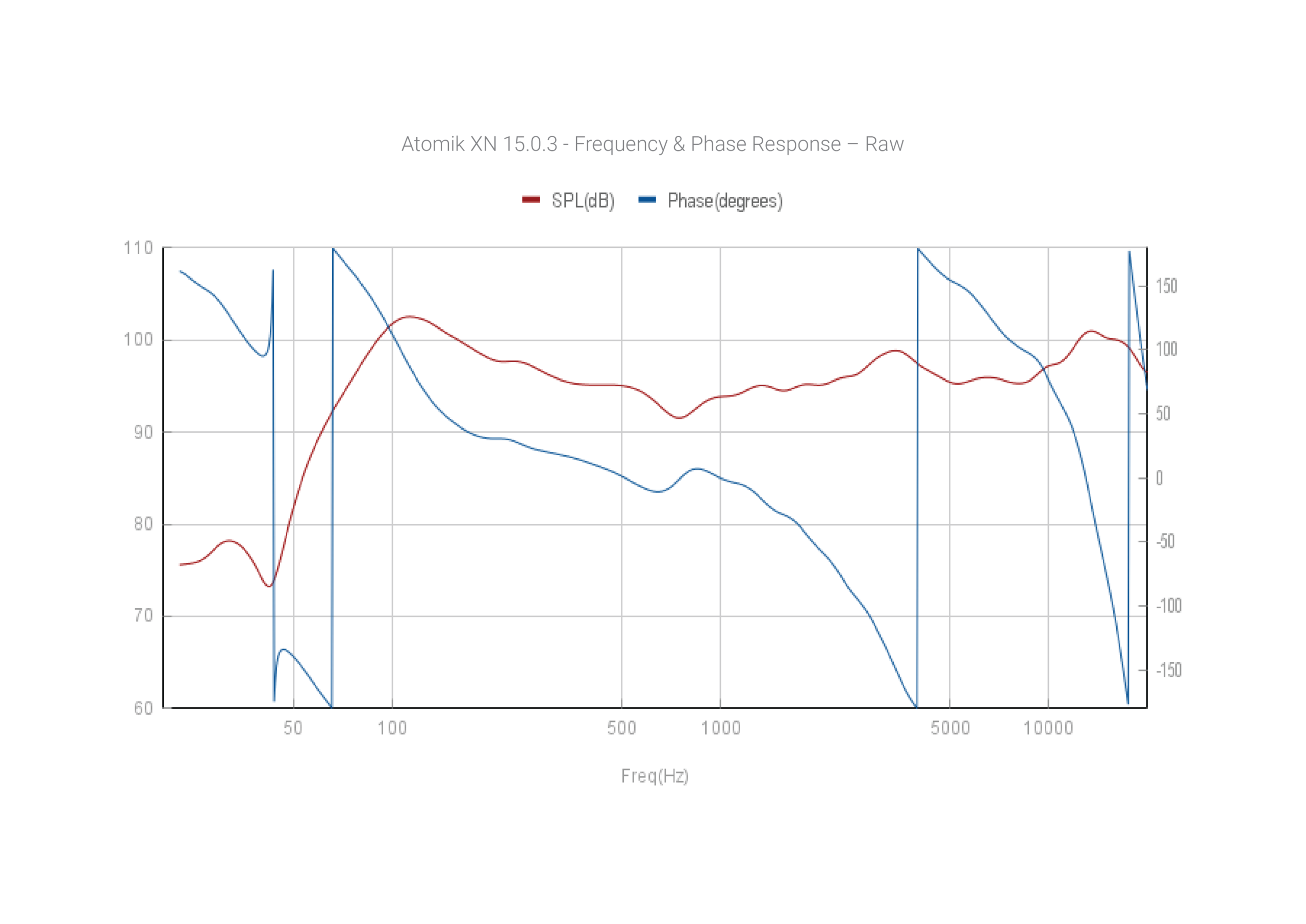

Frequency & Phase Response – Raw
Frequency & Phase Response – Raw

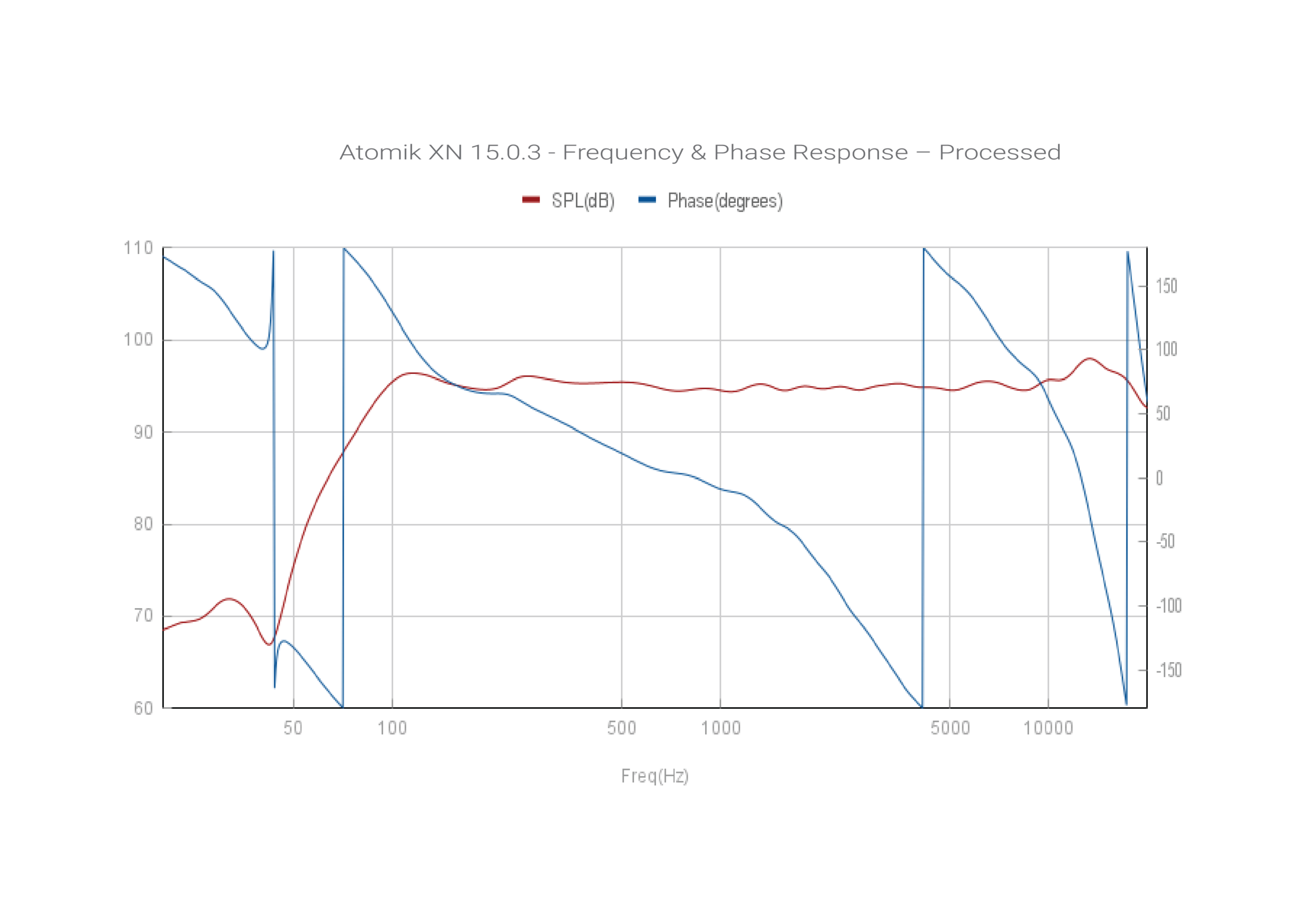

Frequency & Phase Response – Processed
Frequency & Phase Response – Processed

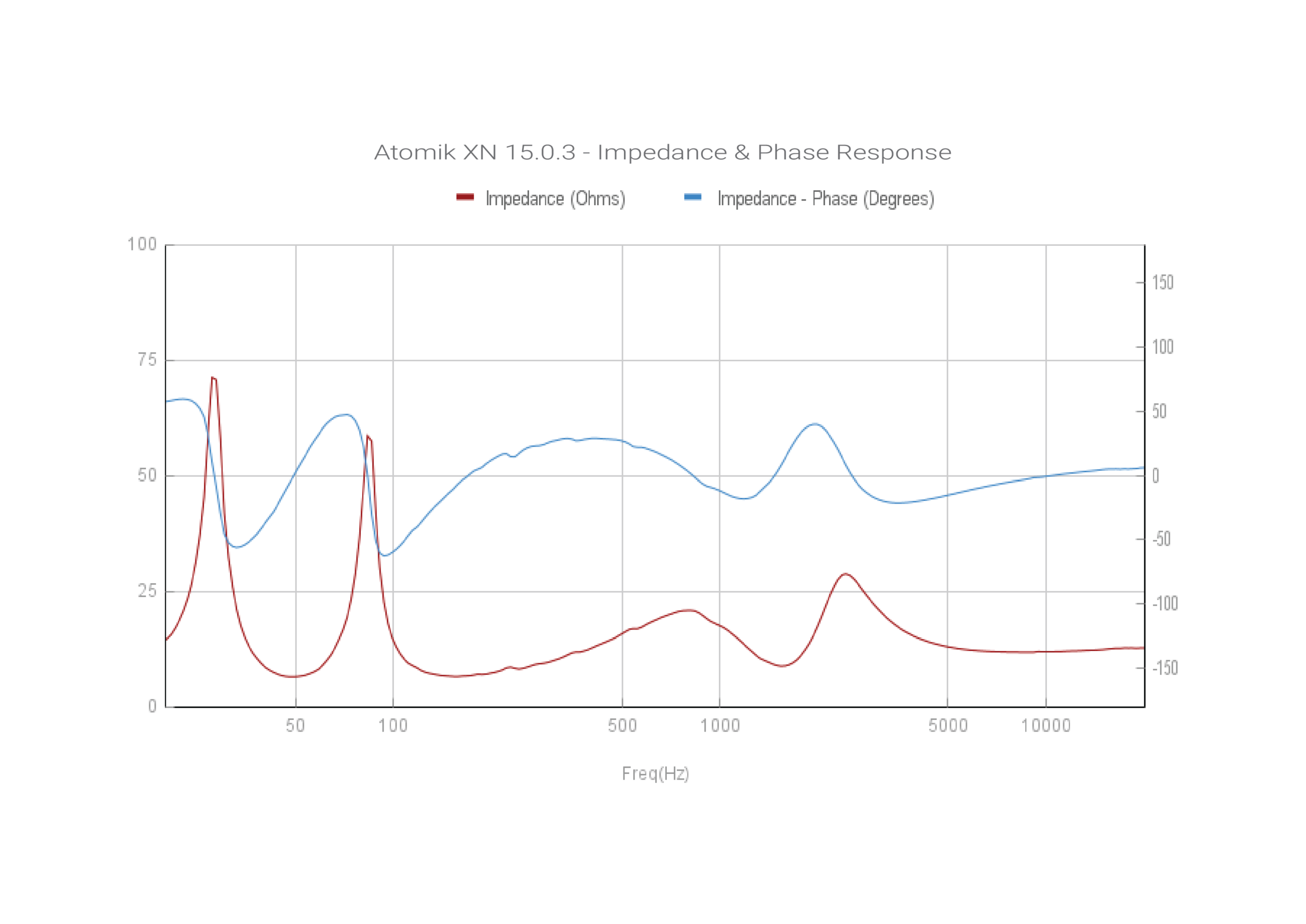

Impedance & Phase Response
Impedance & Phase Response
