DESCRIPTION
The Atomik Q221S is an ultra-powerful infra sub-bass loudspeaker, engineered to deliver exceptional subsonic performance. Designed for large concert venues and nightclubs, it offers very high acoustical output, ensuring deep, impactful bass reproduction.
Featuring dual 4.5-inch voice coils and an 8000-watt peak power handling capacity, the Q221S is built for maximum efficiency and reliability. Its low-noise forced air cooling system enhances thermal management, allowing sustained high-performance operation under demanding conditions.
With industry-leading output and precision-engineered acoustics, the Q221S is designed to outperform rival subwoofers, making it an ideal choice for high-intensity sound reinforcement applications.
Features
- Subwoofer with incredible SPL levels.
- 21” drivers with 4.5” voice coils.
- Dual Neutrik NL4 Speakon connectors.
- Heavy-duty 18mm marine plywood enclosure.
- Perfectly suited for large discos or live performances.
Technical Specifications
21” neodymium sub driver with dual 4.24 voice coils.
Bandpass Hornloaded
103.1dB @ 1W/1m
148.2 dB Peak SPL (Measured – AES75-2022 M-Noise)
148.4 dB Peak SPL inf (Measured – AES75-2022 M-Noise)
Max 3600 watts long term continuous / Peak 8000 watts
4 ohms passive
3.0 ohms @ 59 Hz
-3dB 34Hz to 100Hz
1546mm x 679mm x 1024mm, 60.86″ x 26.73″ x 40.31″
115kg / 253lbs
*Atomik products are continually improved. All specifications are therefore subject to change without notice.

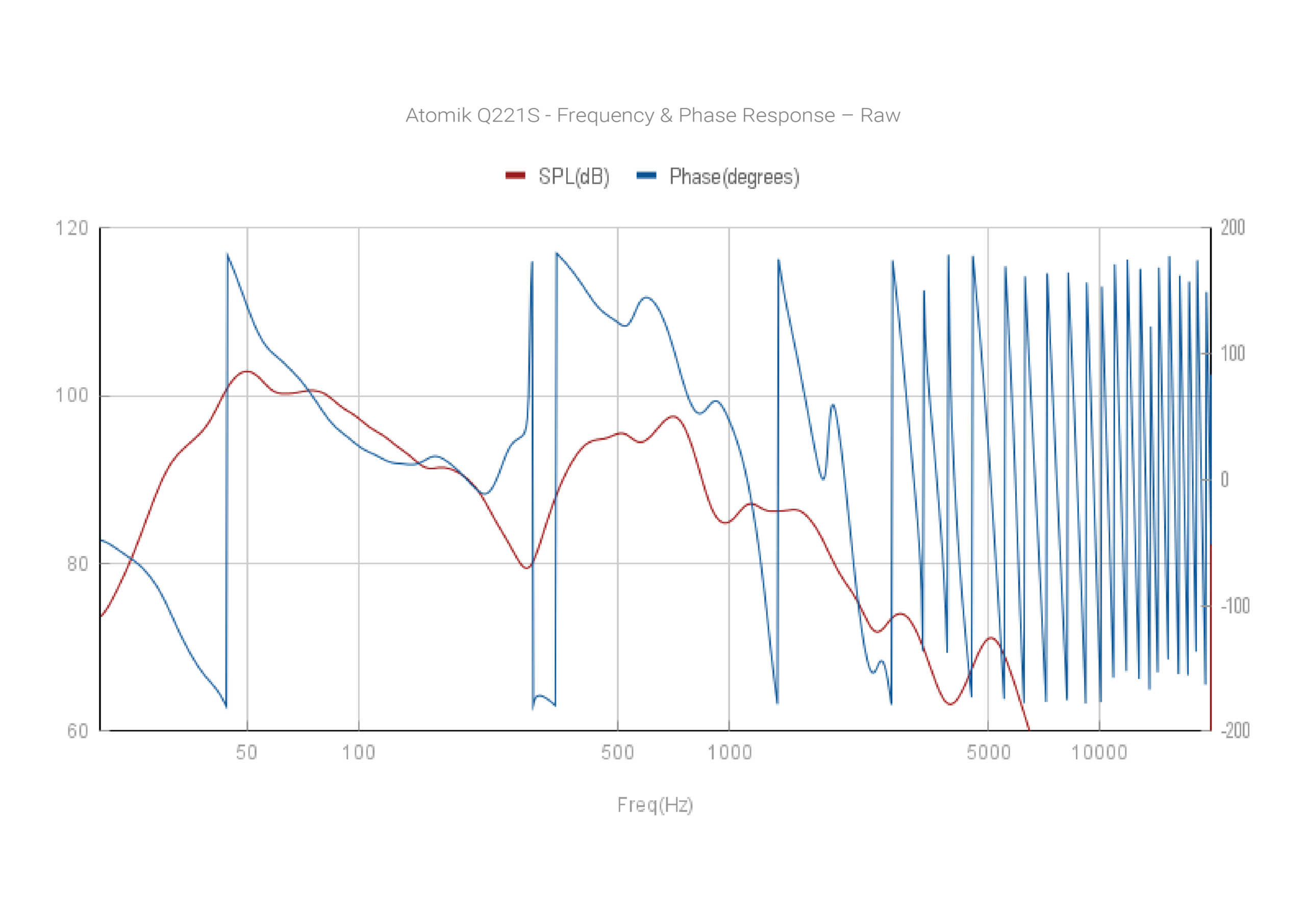

Frequency & Phase Response – Raw

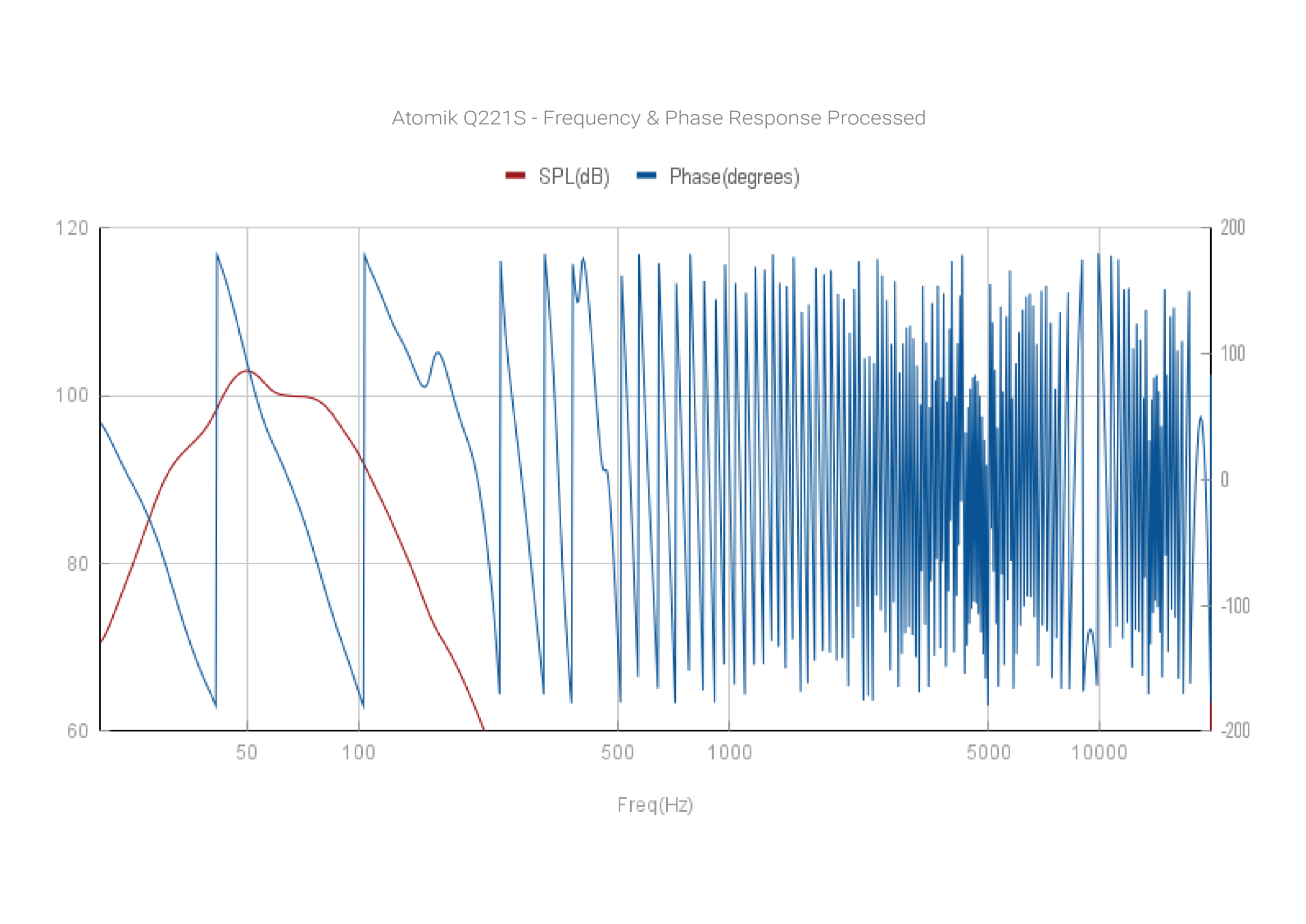

Frequency & Phase Response – Processed
Impedance & Phase Response

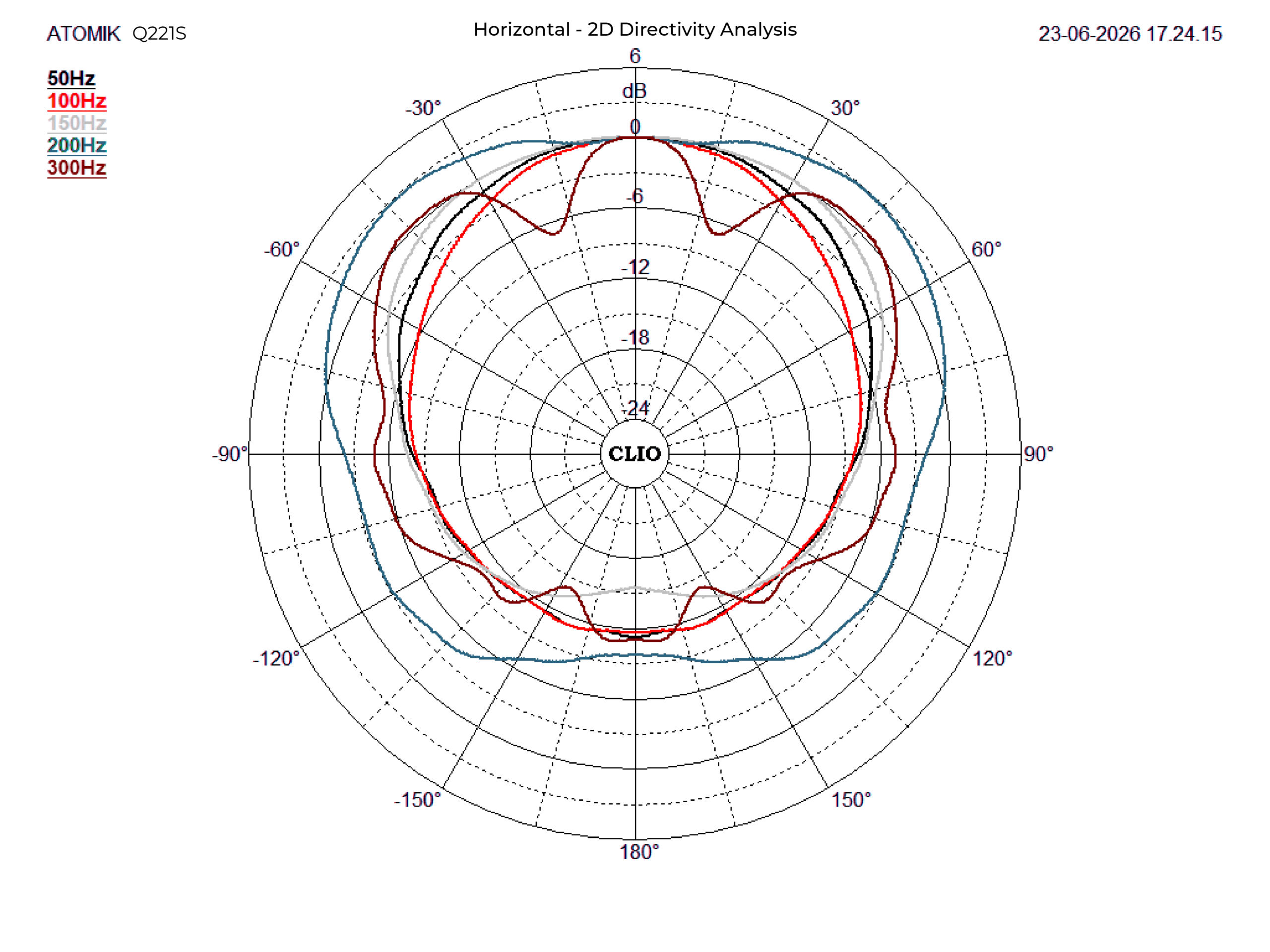

2D Horizontal Polar Plot

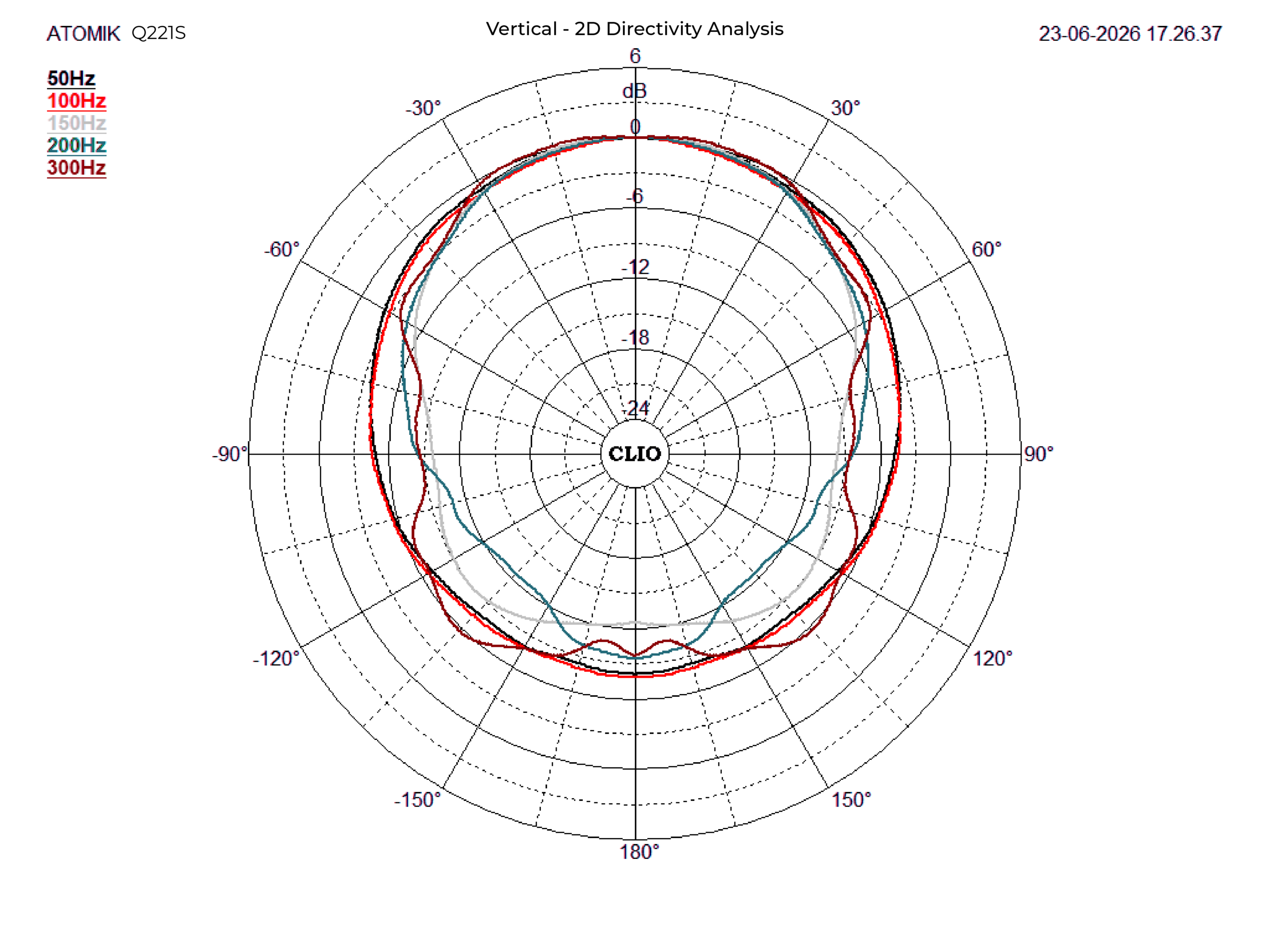

2D Vertical Polar Plot
+ For a clearer view, please open the graph in a separate tab.
+ For more detailed information about this product, please refer to the documents listed below.
