DESCRIPTION

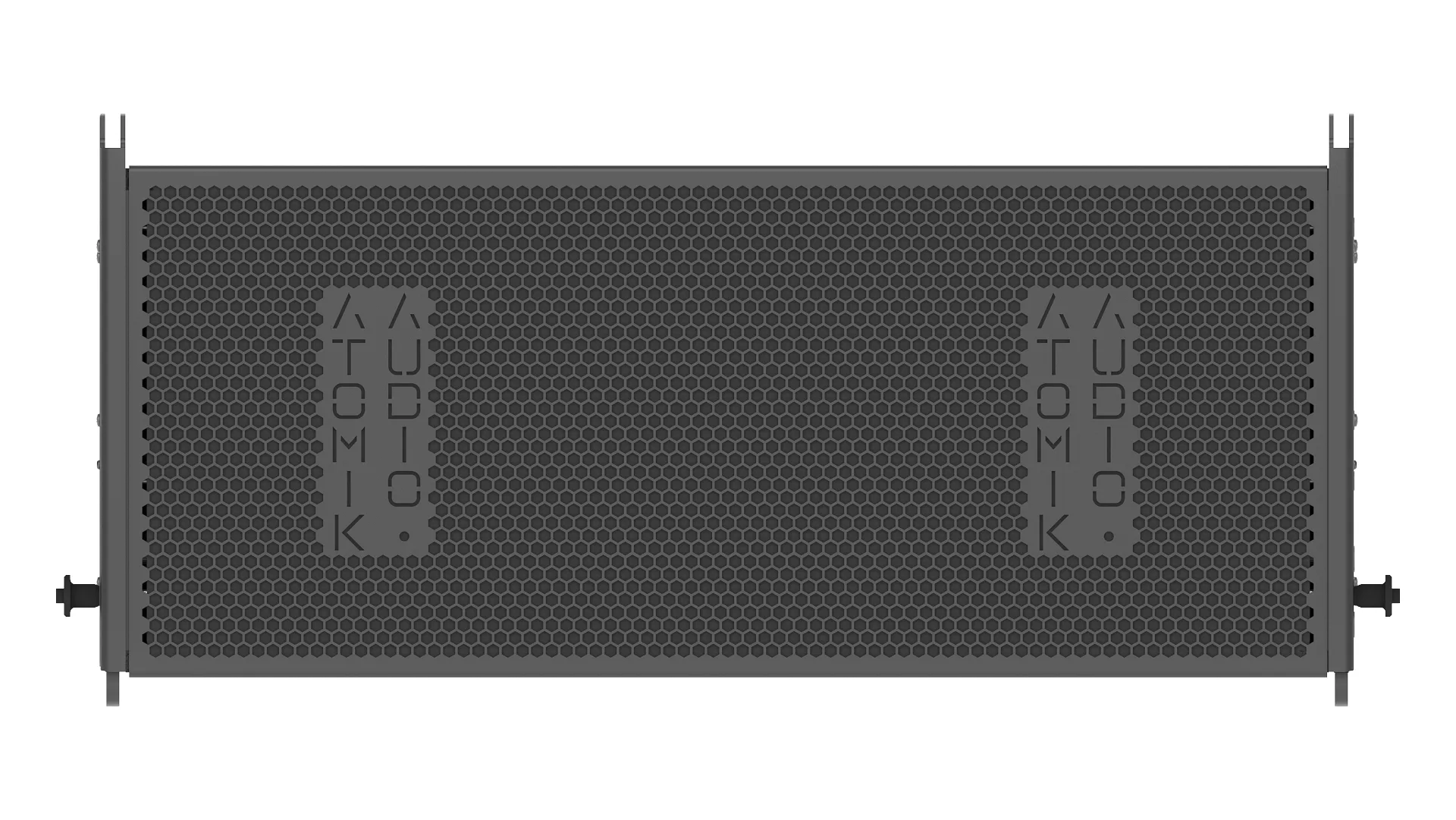

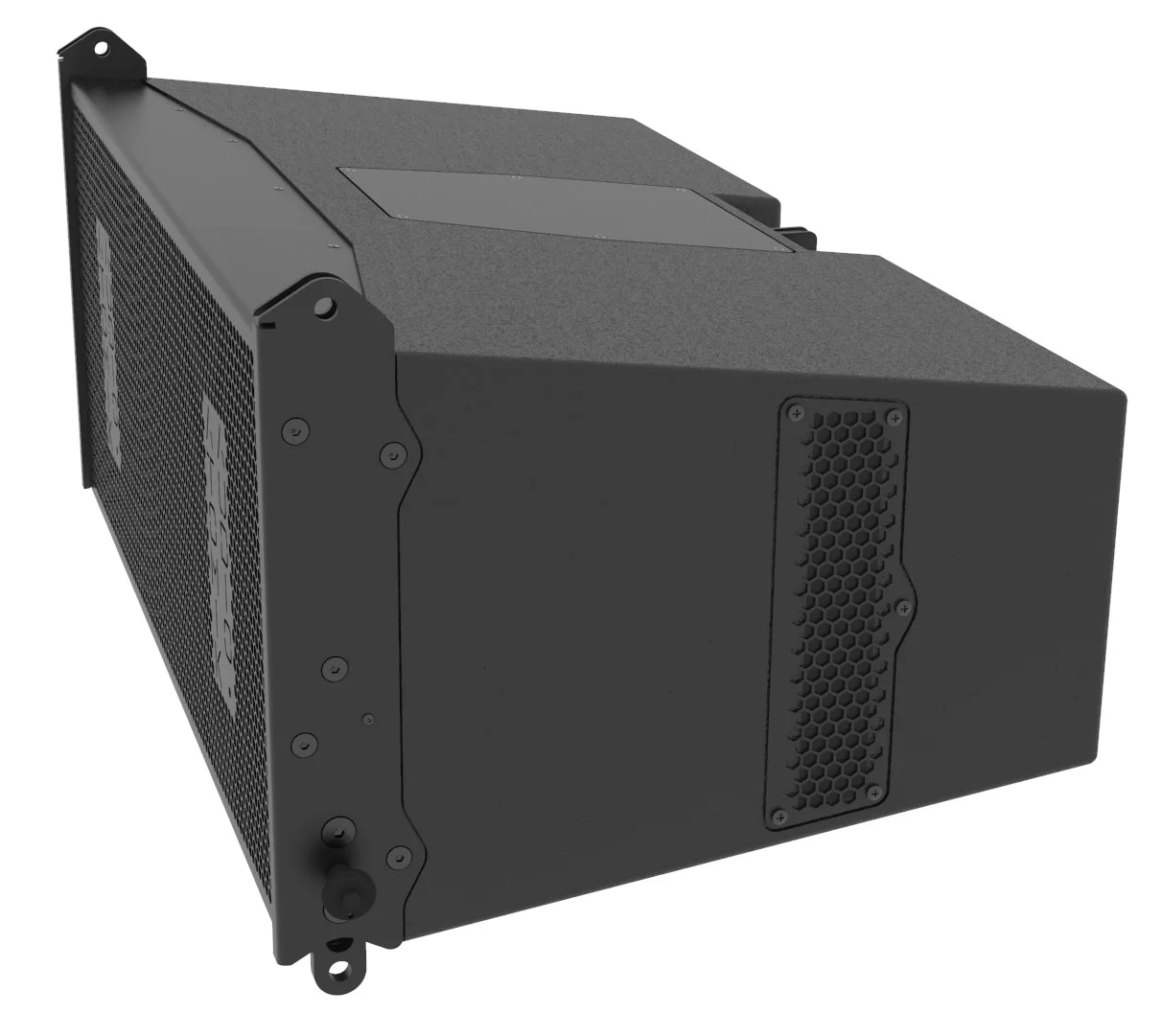

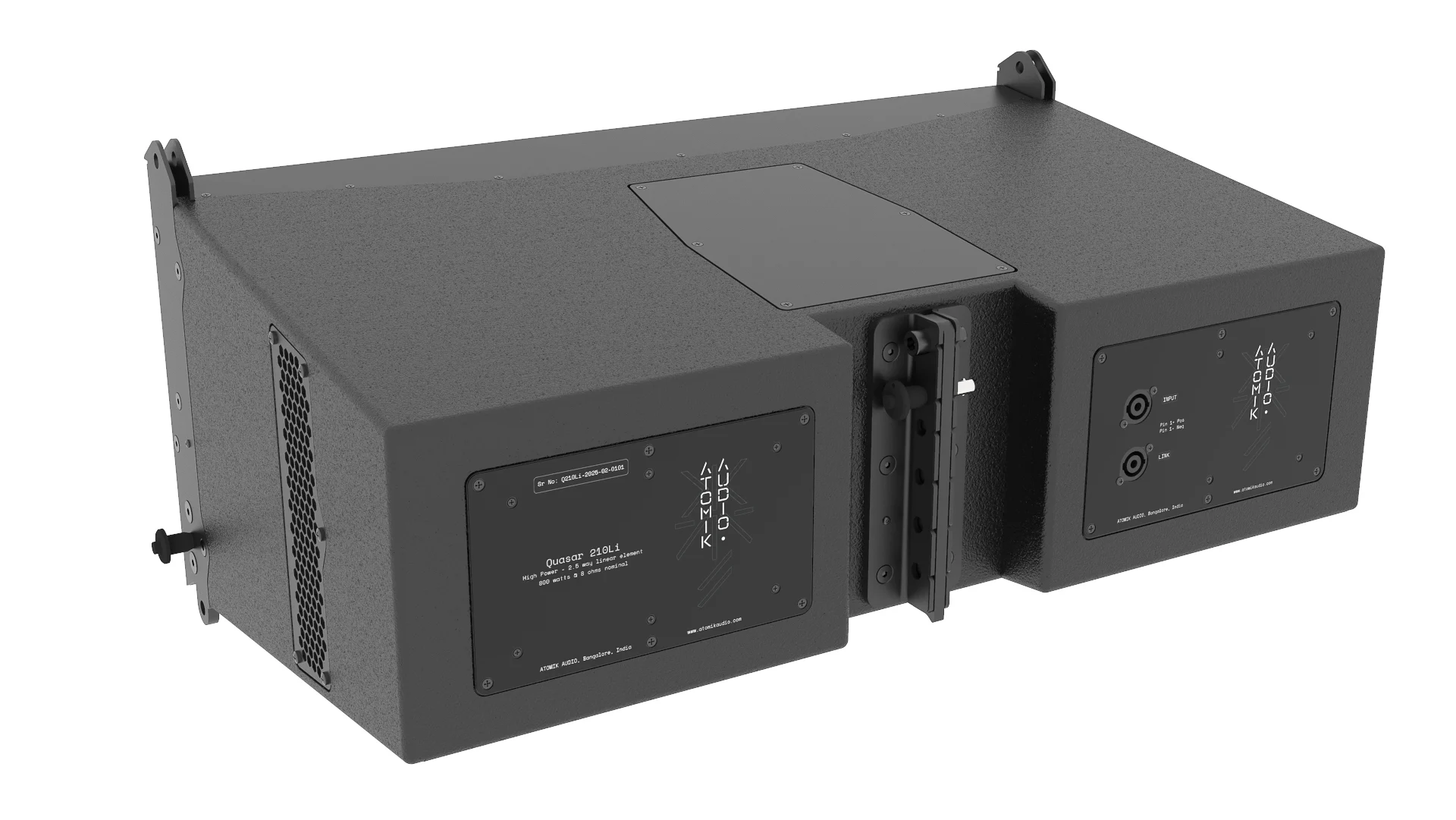

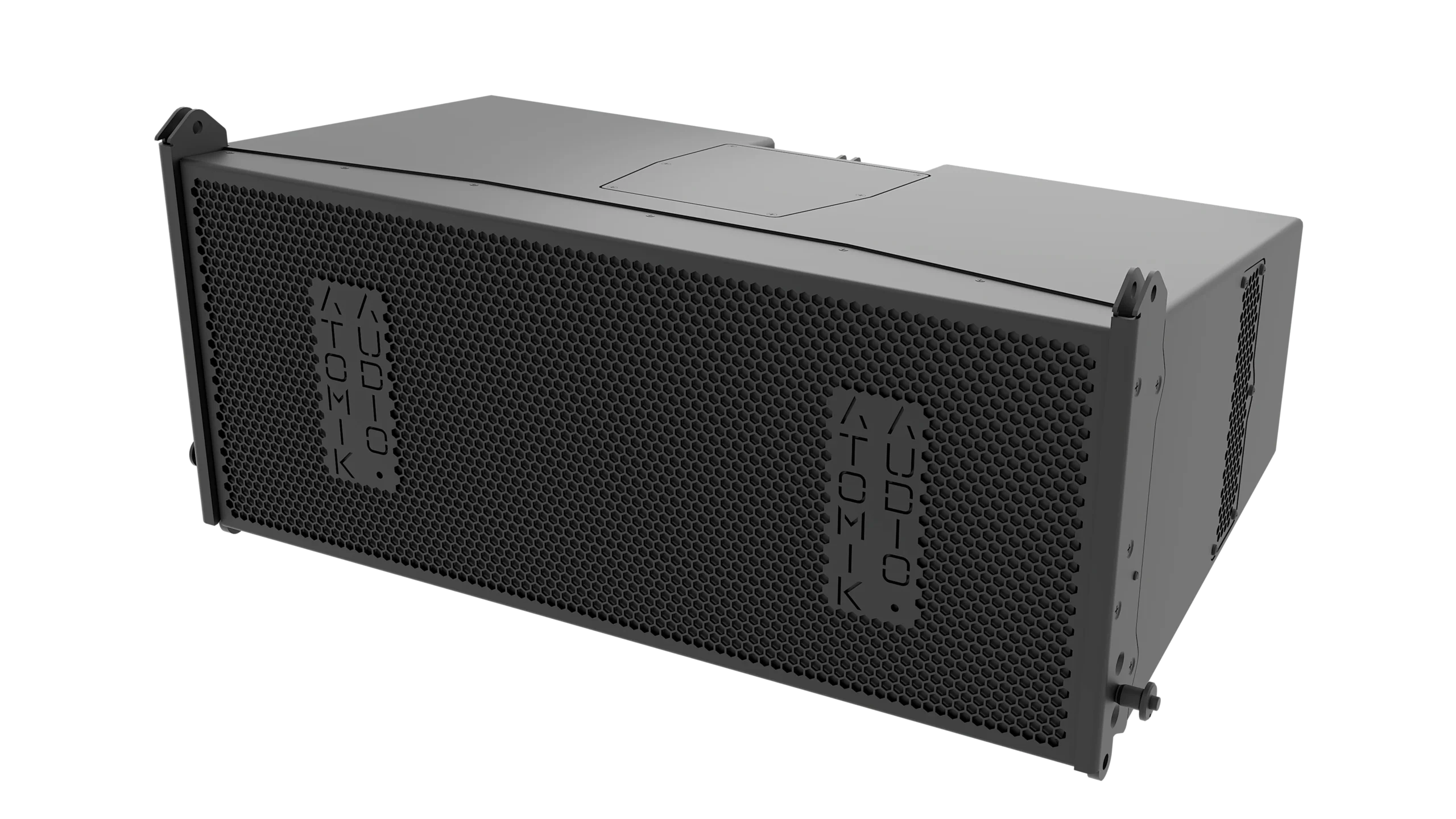

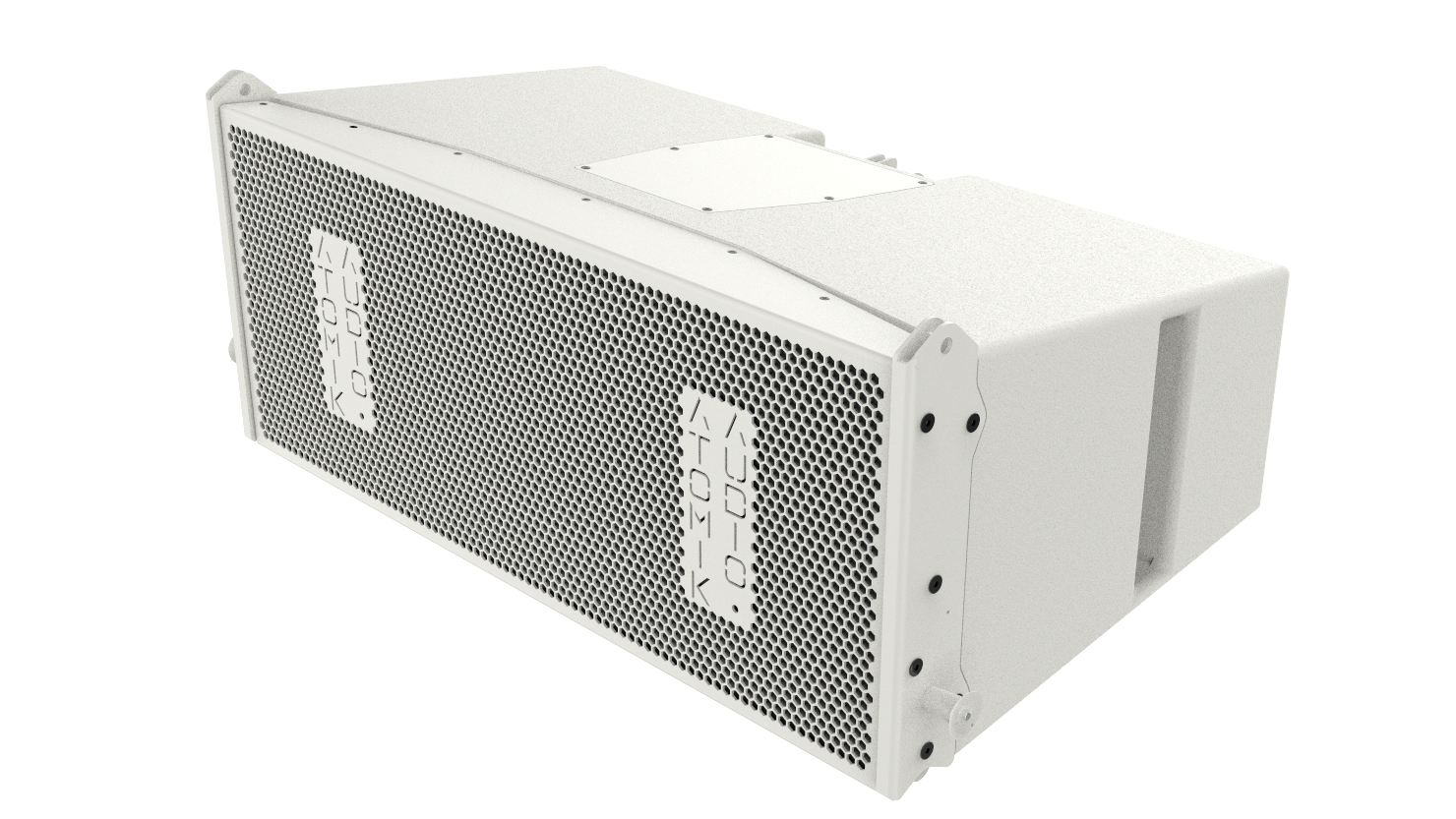

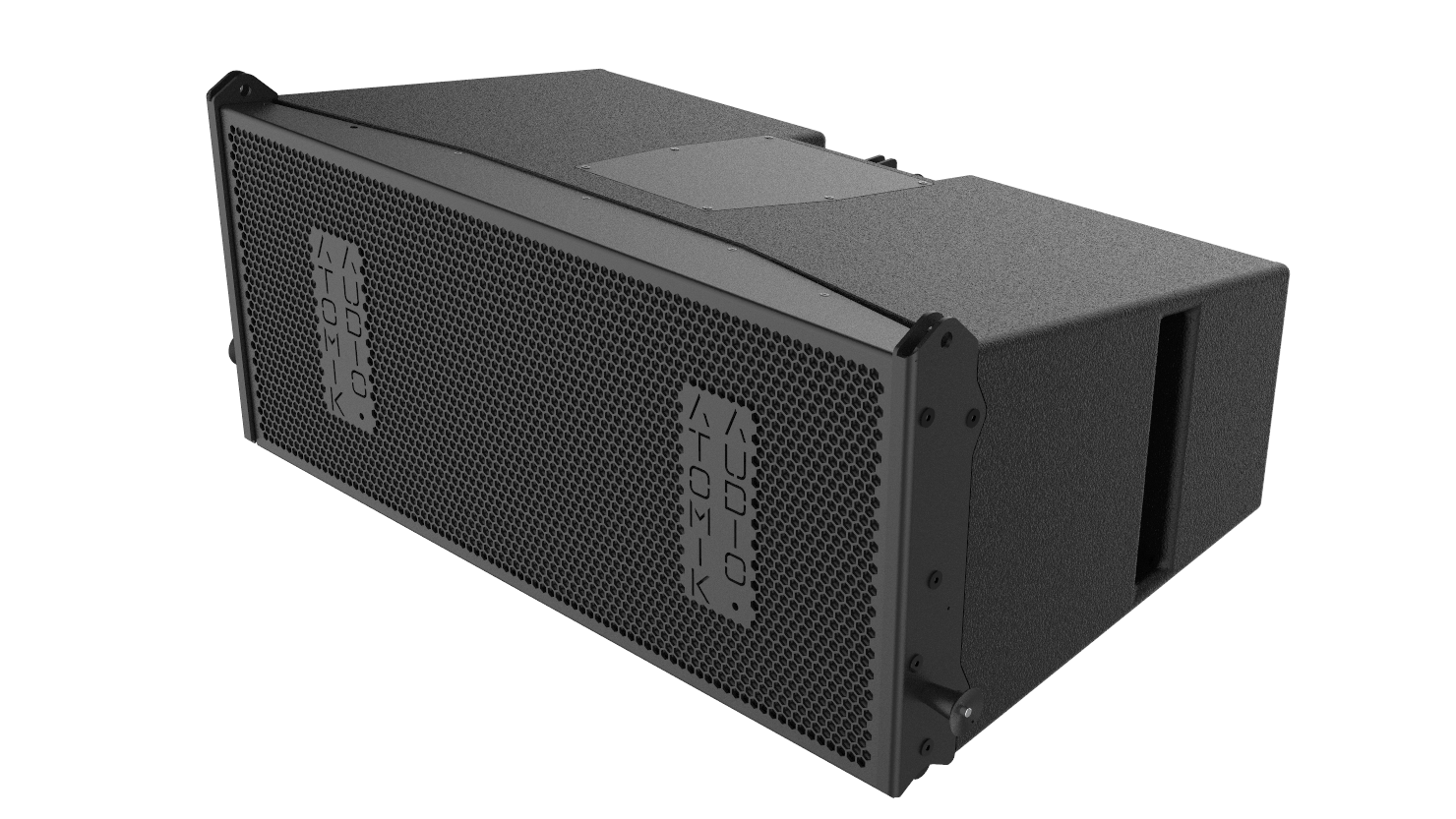

The Atomik Audio Quasar Q210Li is an installation-specific line array engineered for precision and reliability. This two-way line array loudspeaker delivers superior sound quality and broad coverage for demanding professional applications. Its design ensures that even from a small form factor, it provides powerful, clear, and accurate sound reproduction, meeting the high standards required for critical audio environments.
Ideal for professionals who require uncompromising performance, the Q210Li stands as a testament to innovative audio engineering and meticulous design. Enhancing its versatility, the system comes equipped with a comprehensive range of accessories tailored for every imaginable installation scenario, ensuring a seamless integration in any setting.
Features
- High SPL capability, allowing for powerful sound reproduction.
- Wide off-axis response, ensuring consistent audio quality even when not directly in front of the speakers.
- Excellent resolution, delivering clear and detailed sound.
- Very dynamic loudspeaker system.
- Heavy duty 16mm marine plywood enclosure.
- 1.7mm thick steel grill with an acoustic micro foam backing.
Technical Specifications
1.4″ HF ferrite compression driver with a 51.6mm voice coil and titanium diaphragm.
10″ LMF ferrite driver with a 3” voice coil.
10″ LF ferrite driver with a 3” voice coil.
90 deg.

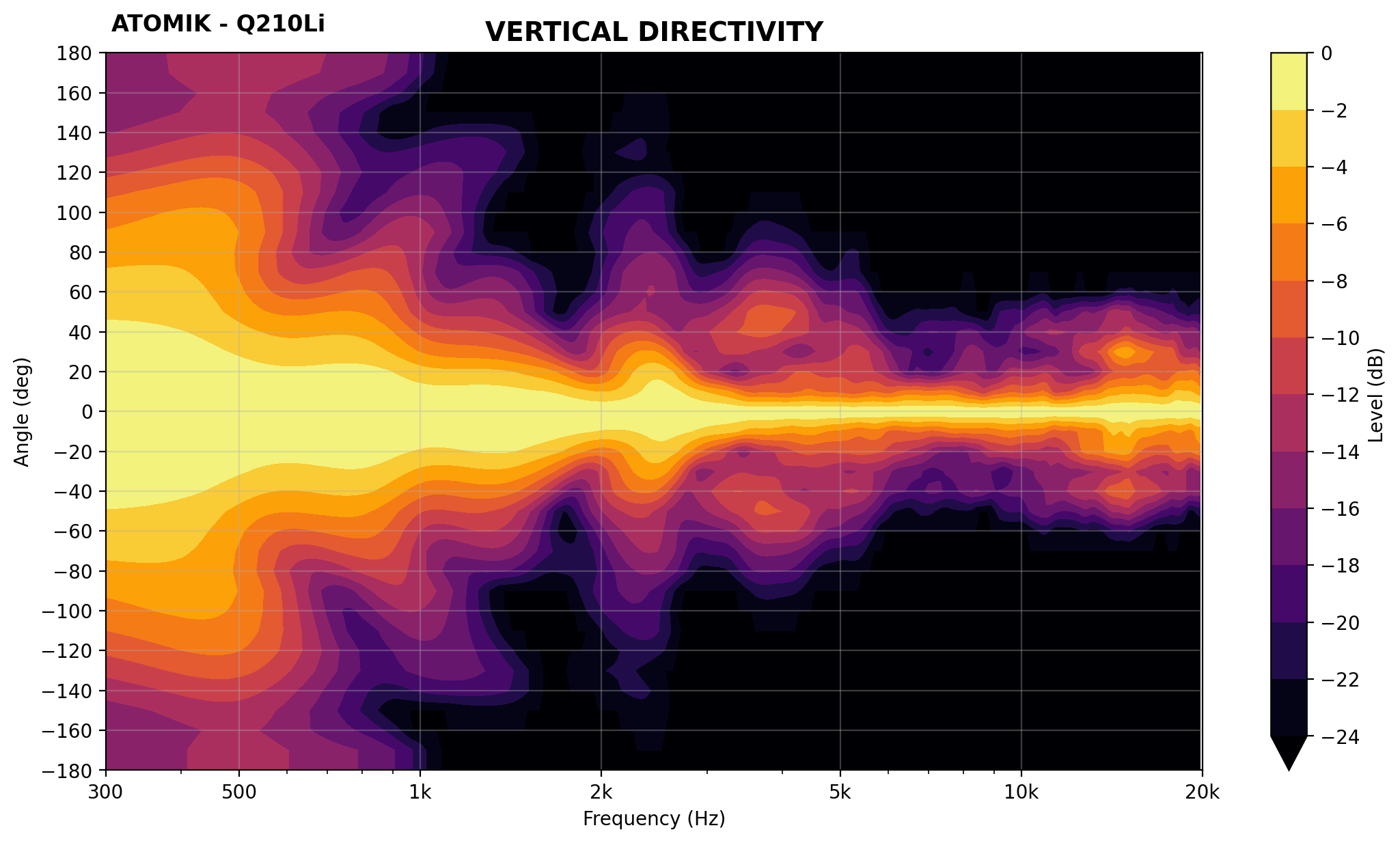

15 deg.
Ported
106dB @ 1w/1m
138dB @ 1m
Max 800 watts long term continuous / Peak 1600 watts
8 ohms passive
-3dB 90Hz to 18kHz
-6dB 80Hz to 20kHz
744mm x 352mm x 426mm, 29.3″ x 13.85″ x 16.8″
39kgs / 86lbs

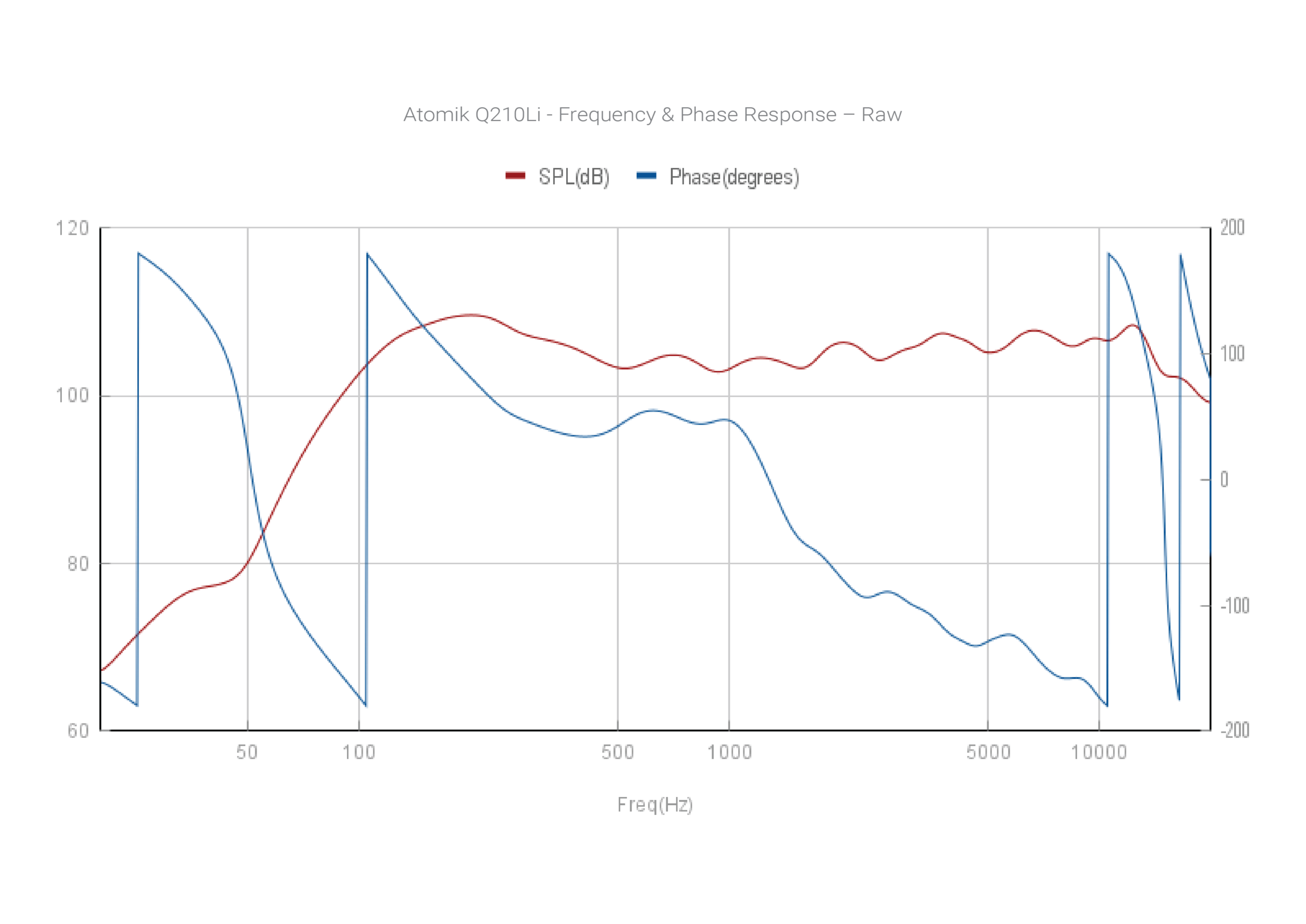

Frequency & Phase Response – Raw

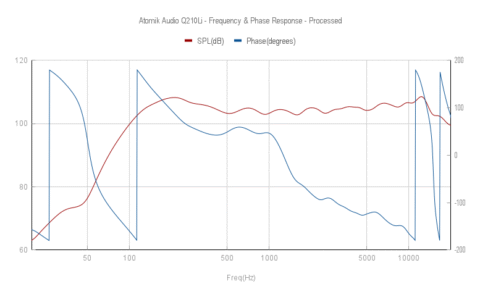

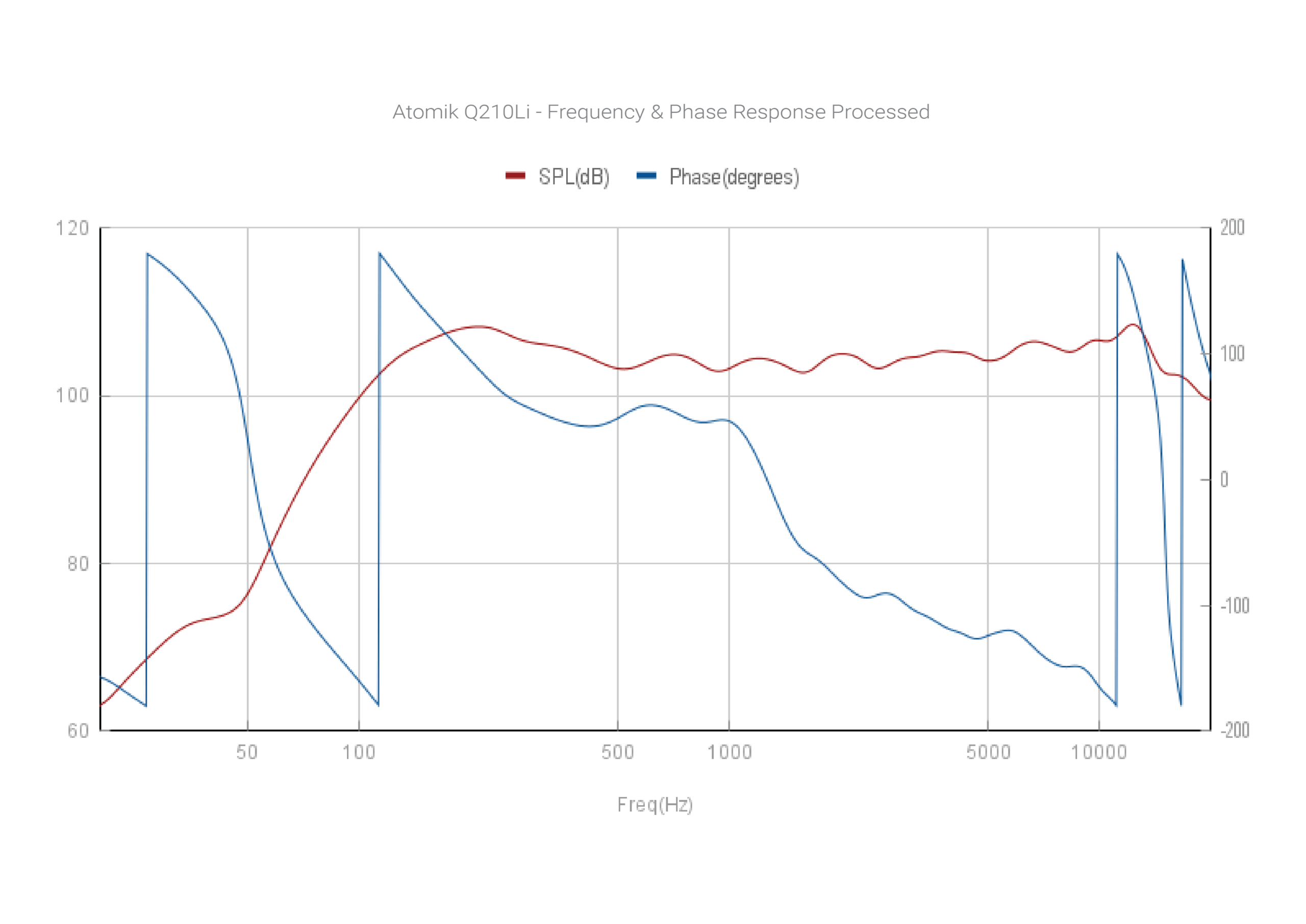

Frequency & Phase Response – Processed

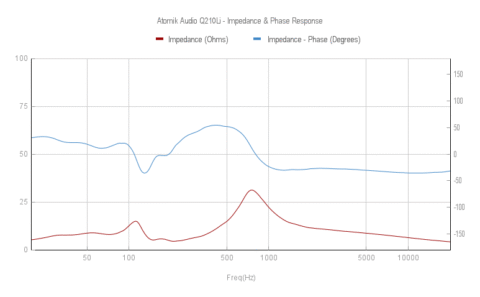

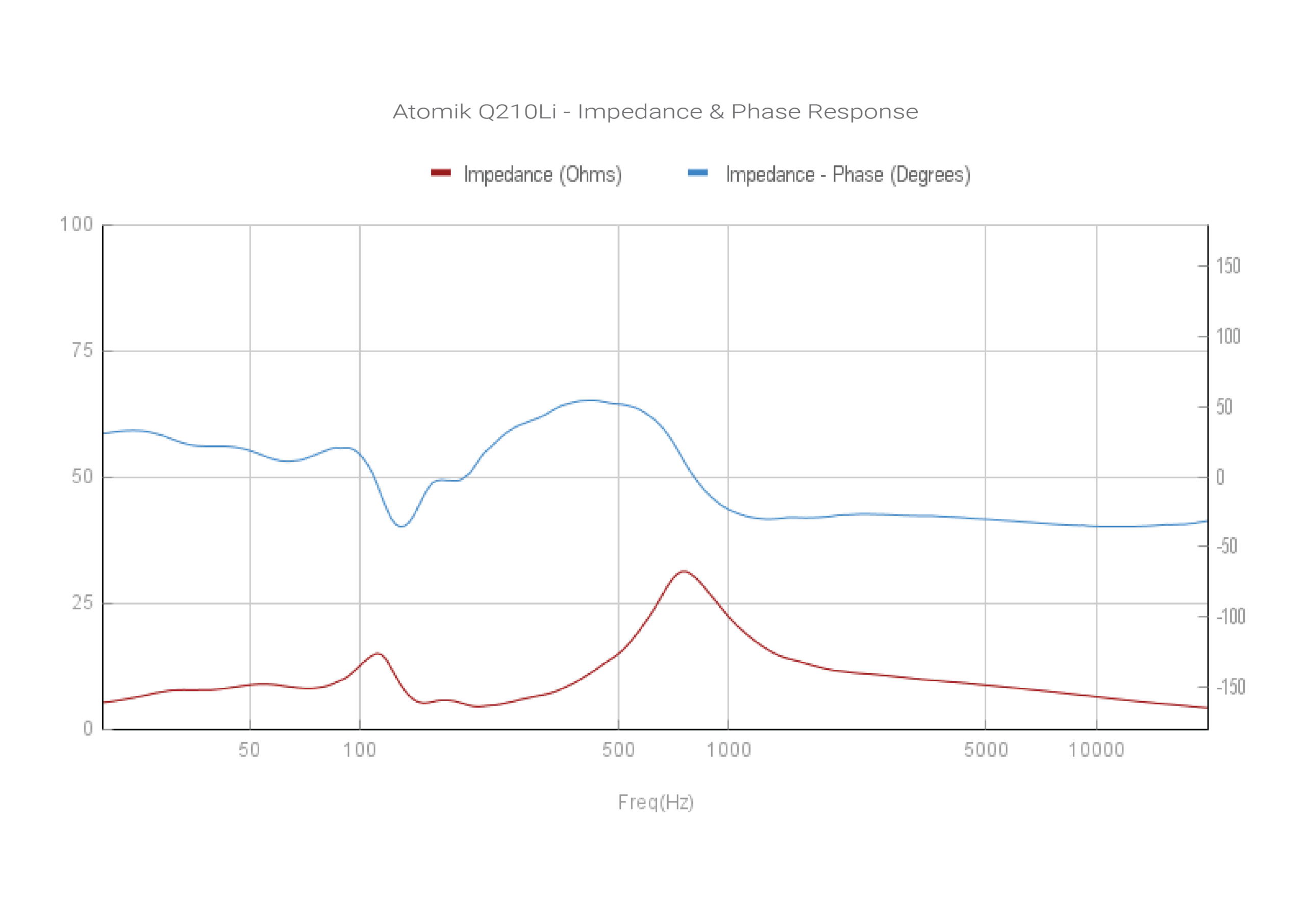

Impedance & Phase Response
For more detailed information about this product, please refer to the documents listed below
