Epoch 1

DESCRIPTION

The Epoch 1 is a 2-way full-range loudspeaker system crafted for discerning environments-high-end listening rooms, audiophile lounges, and curated listening bars where sonic character matters as much as fidelity. It embodies the warmth and presence of classic analog systems while delivering the resolution expected from modern studio-grade monitors.

Epoch 1 channels the old-school analog vibe-rich midrange, rounded transients, and a tactile sense of space. Its voicing is intentionally musical, evoking the golden age of vinyl and reel-to-reel, yet it maintains the neutrality and detail required for critical listening.

  • Vintage Tone: Carefully tuned to recreate the tonal balance of classic systems from the ’60s and ’70s.
  • Studio Monitor Resolution : Comparable to high-end far-field monitors, revealing microdynamics and mix intent with clarity.
  • Producer’s Perspective: Designed to reproduce music as the artist and engineer intended-no hype, just truth.
main image
previous arrow
next arrow
main image
main image
main image
main image
main image
previous arrow
next arrow

Features

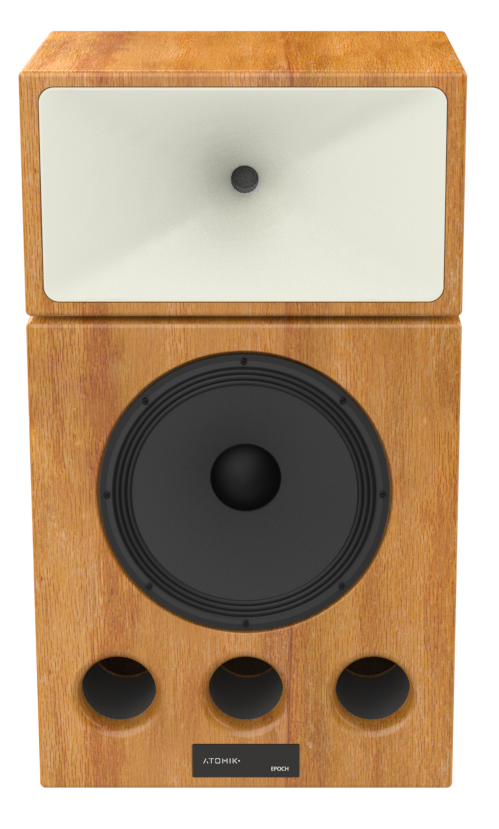

Available in a wide range of finishes and textures, allowing each unit to reflect its owner’s space and sensibility. While customization is limitless, the system leans toward natural wooden tones-walnut, teak, rosewood, and oiled birch-paying homage to the vintage designs that inspired it.

Technical Specifications

HF Driver
1.4″ HF ferrite compression driver with a 51.6mm voice coil and titanium diaphragm.
LF Driver
15″ LF ferrite driver with a 3” voice coil. Long excursion, linear travel suspension design
Horizontal dispersion pattern
80 deg.
Vertical dispersion pattern
50 deg.
Enclosure
Ported
Axial Sensitivity
99dB @ 1w/1m
Maximum SPL
126dB @ 1m
Power
Max 600 watts long term continuous / Peak 1200 watts
Nominal Impedance
8 ohms passive
Frequency Response – 1
-3dB 42Hz to 18kHz
Frequency Response – 2
-6dB 38Hz to 20kHz
Dimensions in mm & in WxHxD
579mm x 1010mm x 429mm, 22.79″ x 39.76″ x 16.88″
Weight
43.5kgs / 96lbs
*Atomik Audio products are continually improved. All specifications are therefore subject to change without notice.

Measurements

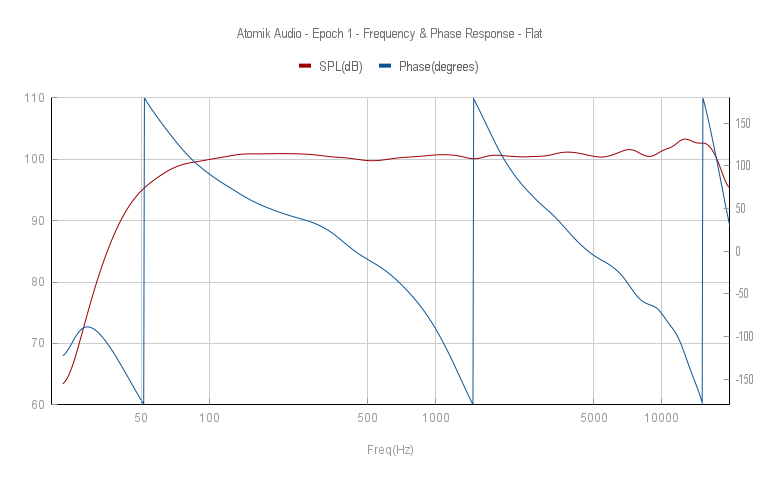

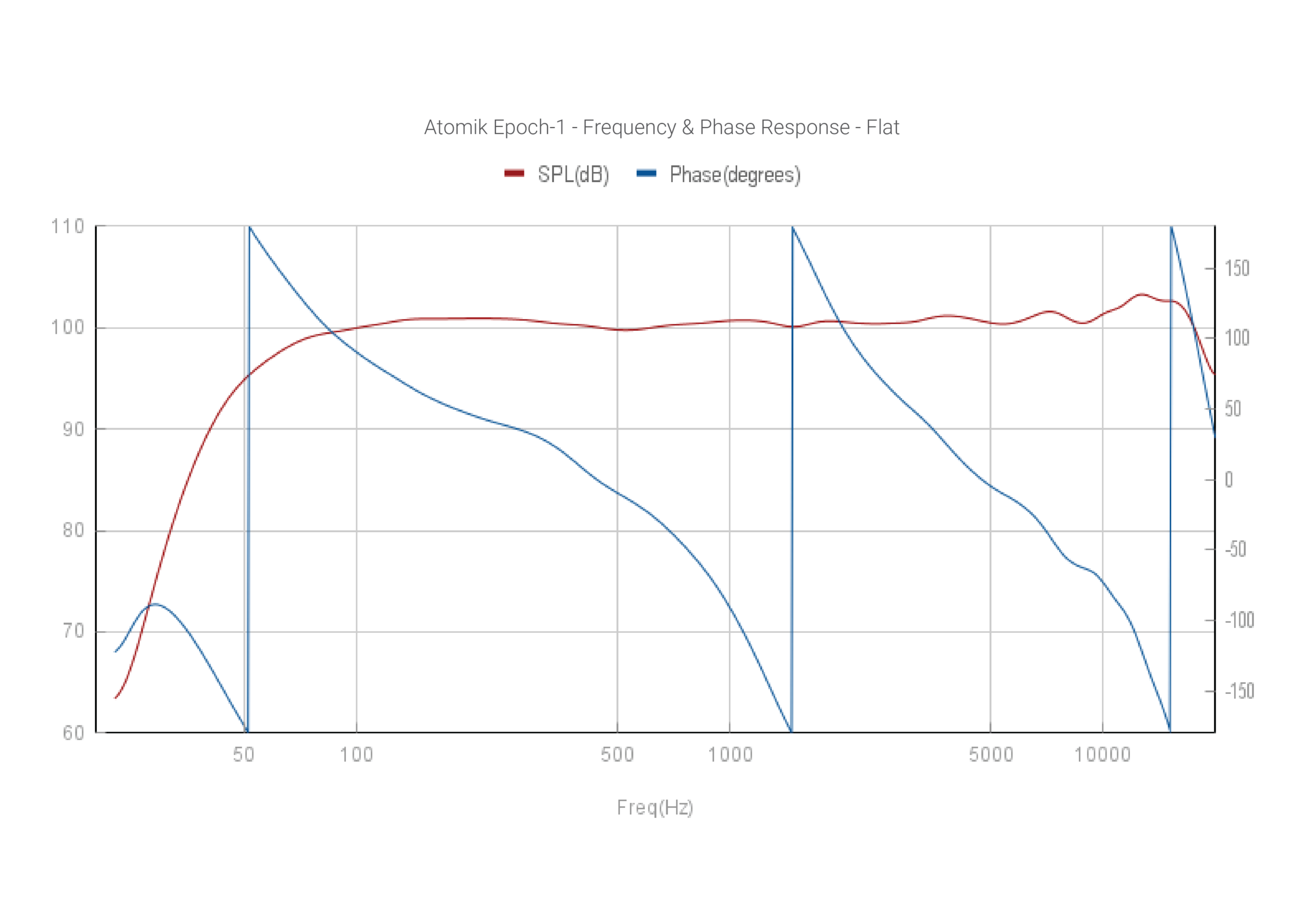

Frequency & Phase Response - Flat

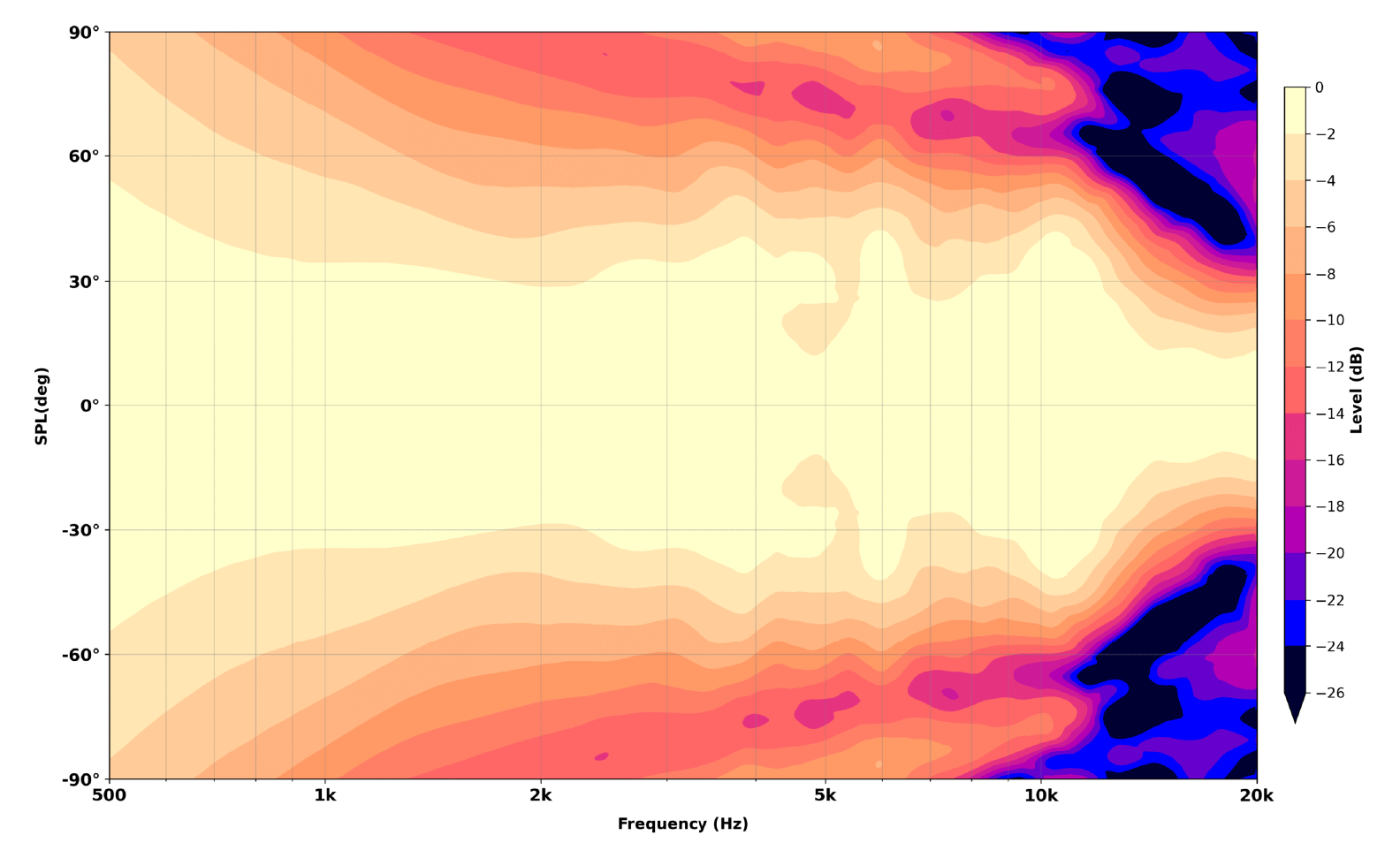

Horizontal Directiviy 2D Plot

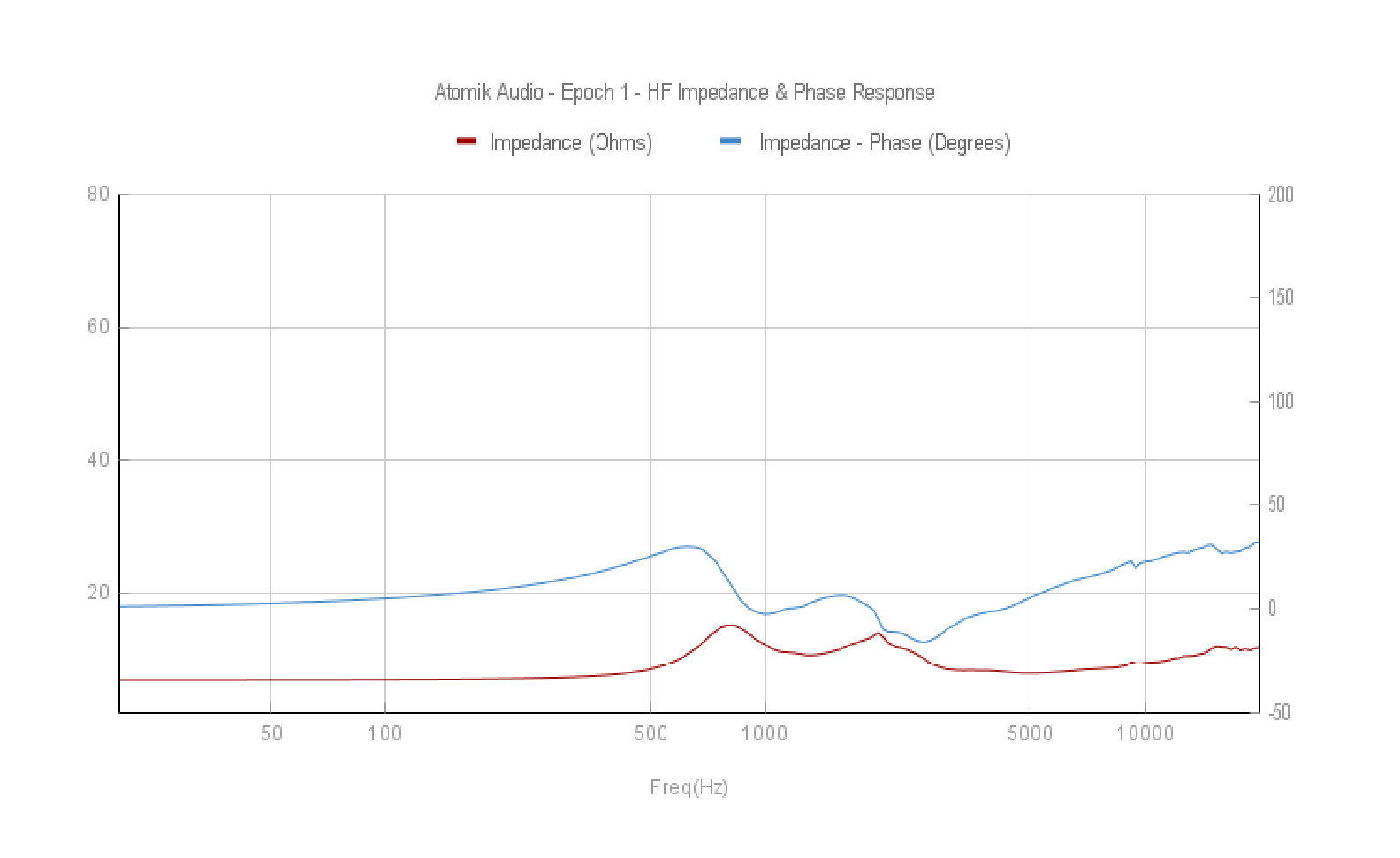

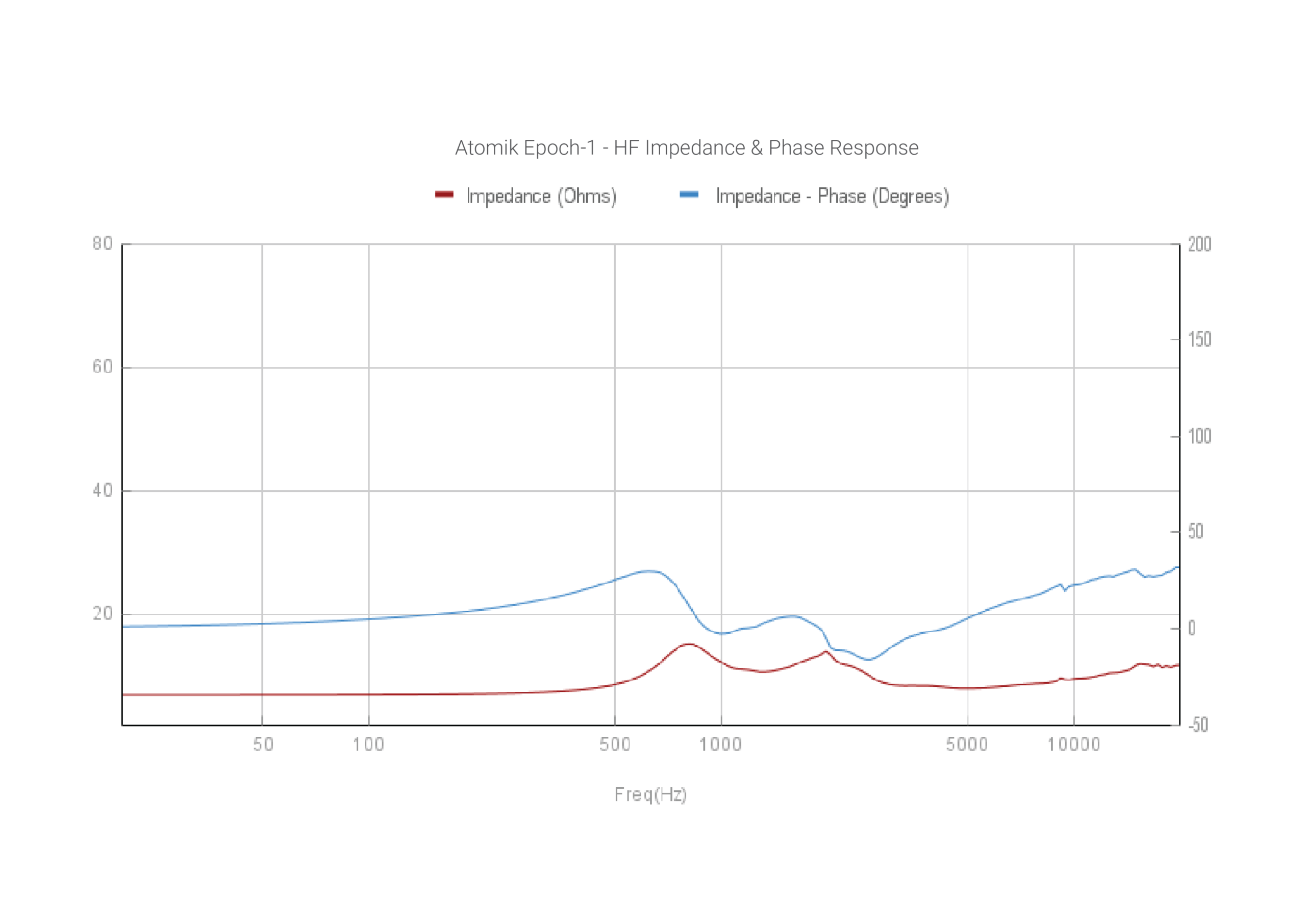

HF Impedance & Phase Response

Vertical Directiviy 2D Plot

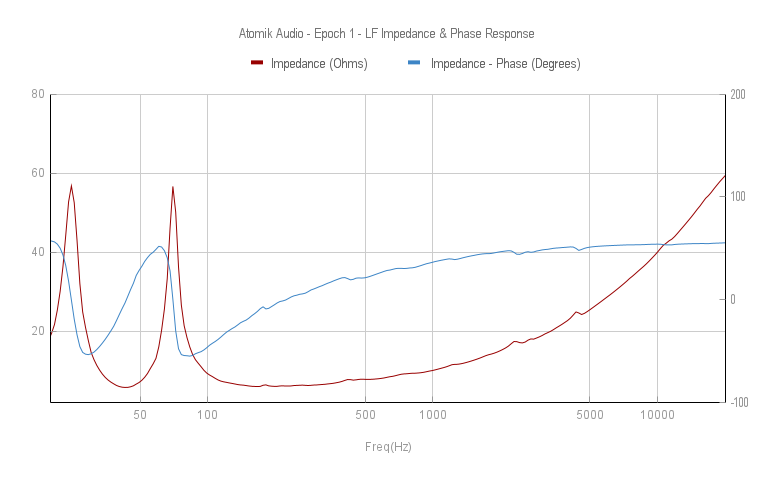

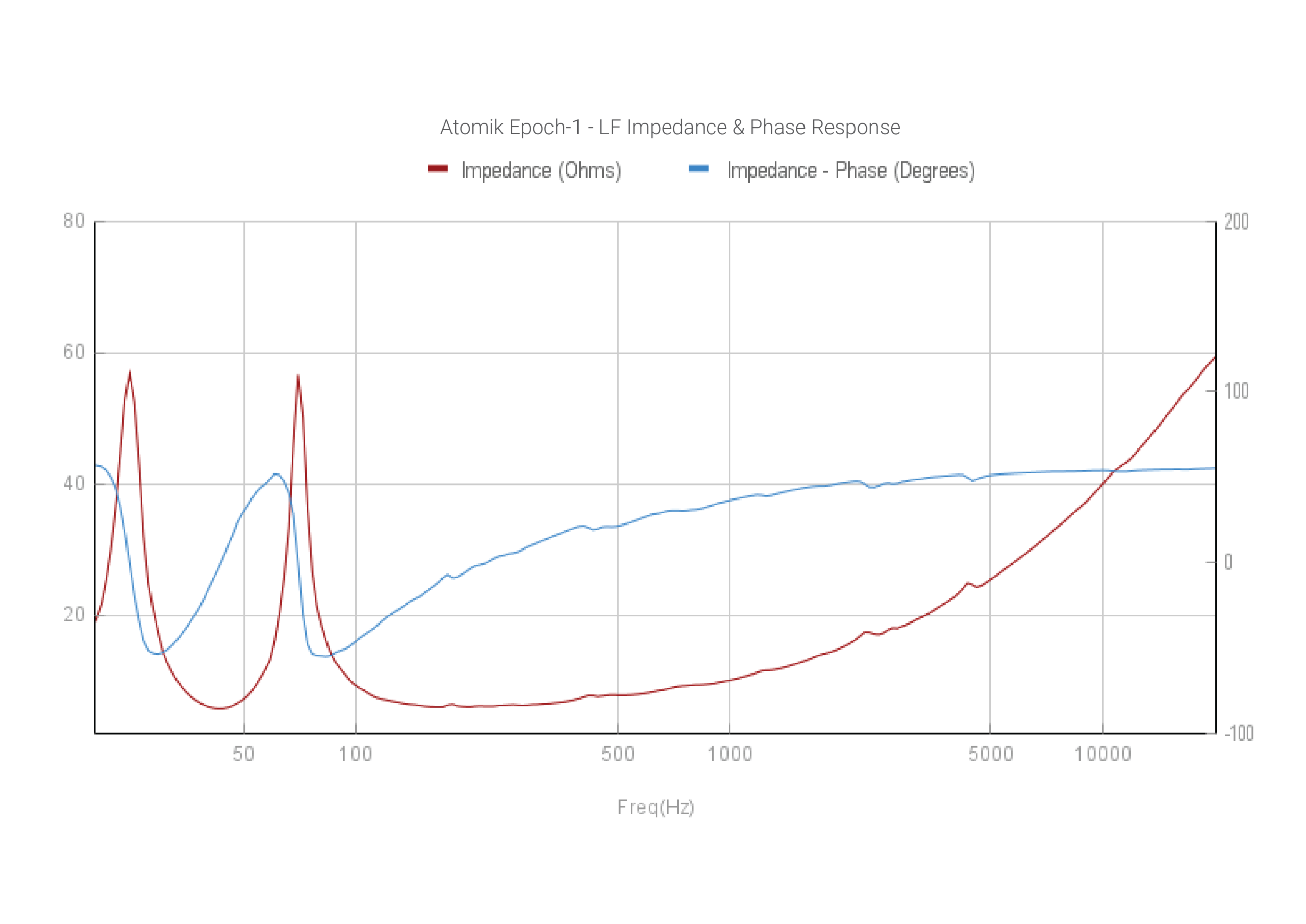

LF Impedance & Phase Response

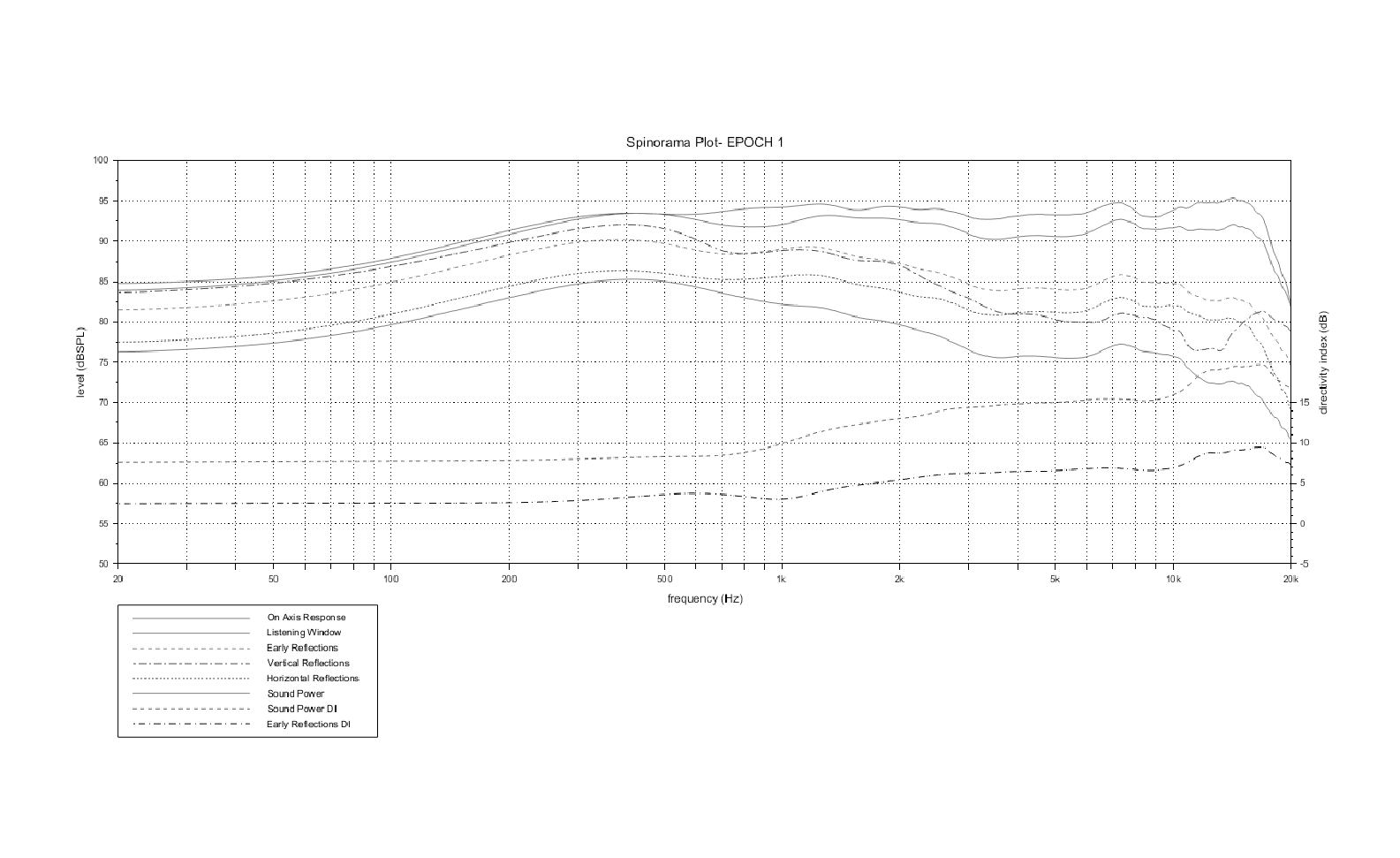

CTA-2034

+ Please open the graph in a new tab for detail viewing

+ For more detailed information about this product, please refer to the documents listed below.
